The Network Intent Composition (NIC) provides four features:
Only a single renderer feature should be installed at a time for the Boron release.
This feature supplies the base models for the Network Intent Composition (NIC) capability. This includes the definition of intent as well as the configuration and operational data trees.
This feature only provides an information model. The interface for NIC is to modify the information model via the configuraiton data tree, which will trigger the renderer to make the appropriate changes in the controlled network.
feature:install odl-nic-core-service-mdsal odl-nic-console
OR
feature:install odl-nic-core-service-hazelcast odl-nic-console
feature:install odl-nic-listeners (will install odl-nic-renderer-of)
OR
feature:install odl-nic-renderer-vtn
OR
feature:install odl-nic-renderer-gbp
OR
feature:install odl-nic-renderer-nemo
This operations create instances of an intent in the configuration data tree and trigger the creation or modification of an intent.
This operation lists all or fetches a single intent from the data tree.
This operation will cause an intent to be removed from the system and trigger any configuration changes on the network rendered from this intent to be removed.
This feature provides karaf console CLI command to manipulate the intent data model. The CLI essentailly invokes the equivalent data operations.
Creates a new intent in the configuration data tree
DESCRIPTION
intent:add
Adds an intent to the controller.
Examples: --actions [ALLOW] --from <subject> --to <subject>
--actions [BLOCK] --from <subject>
SYNTAX
intent:add [options]
OPTIONS
-a, --actions
Action to be performed.
-a / --actions BLOCK/ALLOW
(defaults to [BLOCK])
--help
Display this help message
-t, --to
Second Subject.
-t / --to <subject>
(defaults to any)
-f, --from
First subject.
-f / --from <subject>
(defaults to any)
Removes an existing intent from the system
DESCRIPTION
intent:remove
Removes an intent from the controller.
SYNTAX
intent:remove id
ARGUMENTS
id Intent Id
Lists all the intents in the system
DESCRIPTION
intent:list
Lists all intents in the controller.
SYNTAX
intent:list [options]
OPTIONS
-c, --config
List Configuration Data (optional).
-c / --config <ENTER>
--help
Display this help message
Displays the details of a single intent
DESCRIPTION
intent:show
Shows detailed information about an intent.
SYNTAX
intent:show id
ARGUMENTS
id Intent Id
List/Add/Delete current state from/to the mapping service.
DESCRIPTION
intent:map
List/Add/Delete current state from/to the mapping service.
SYNTAX
intent:map [options]
Examples: --list, -l [ENTER], to retrieve all keys.
--add-key <key> [ENTER], to add a new key with empty contents.
--del-key <key> [ENTER], to remove a key with it's values."
--add-key <key> --value [<value 1>, <value 2>, ...] [ENTER],
to add a new key with some values (json format).
OPTIONS
--help
Display this help message
-l, --list
List values associated with a particular key.
-l / --filter <regular expression> [ENTER]
--add-key
Adds a new key to the mapping service.
--add-key <key name> [ENTER]
--value
Specifies which value should be added/delete from the mapping service.
--value "key=>value"... --value "key=>value" [ENTER]
(defaults to [])
--del-key
Deletes a key from the mapping service.
--del-key <key name> [ENTER]

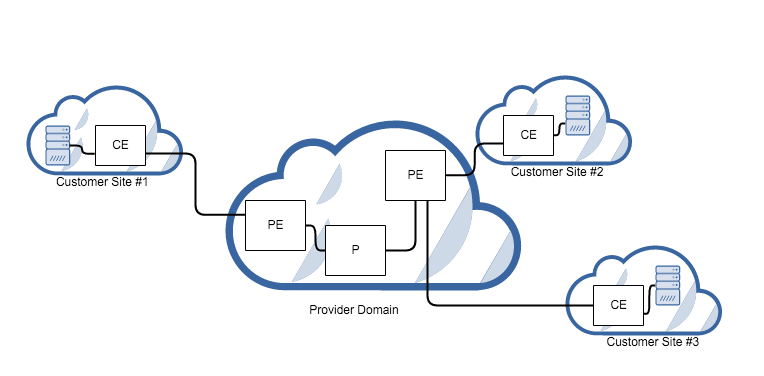

The scope of this use-case is to add MPLS intents between two MPLS endpoints. The use-case tries to address the real-world scenario illustrated in the diagram below:
MPLS VPN Service Diagram
where PE (Provider Edge) and P (Provider) switches are managed by OpenDaylight. In NIC’s terminology the endpoints are the PE switches. There could be many P switches between the PEs.
In order for NIC to recognize endpoints as MPLS endpoints, the user is expected to add mapping information about the PE switches to NIC’s mapping service to include the below properties:
An intent:add between two MPLS endpoints renders OpenFlow rules for: 1. push/pop labels to the MPLS endpoint nodes after an IPv4 Prefix match. 2. forward to port rule after MPLS label match to all the switches that form the shortest path between the endpoints (calculated using Dijkstra algorithm).
Additionally, we have also added constraints to Intent model for protection and failover mechanism to ensure end-to-end connectivity between endpoints. By specifying these constraints to intent:add the use-case aims to reduces the risk of connectivity failure due to a single link or port down event on a forwarding device.
Start Karaf and install related features:
feature:install odl-nic-core-service-mdsal odl-nic-core odl-nic-console odl-nic-listeners
feature:install odl-dlux-core odl-dluxapps-applications
Start mininet topology and verify in DLUX Topology page for the nodes and link.
mn --controller=remote,ip=$CONTROLLER_IP --custom ~/shortest_path.py --topo shortest_path --switch ovsk,protocols=OpenFlow13
cat shortest.py -->
from mininet.topo import Topo
from mininet.cli import CLI
from mininet.net import Mininet
from mininet.link import TCLink
from mininet.util import irange,dumpNodeConnections
from mininet.log import setLogLevel
class Fast_Failover_Demo_Topo(Topo):
def __init__(self):
# Initialize topology and default options
Topo.__init__(self)
s1 = self.addSwitch('s1',dpid='0000000000000001')
s2a = self.addSwitch('s2a',dpid='000000000000002a')
s2b = self.addSwitch('s2b',dpid='000000000000002b')
s2c = self.addSwitch('s2c',dpid='000000000000002c')
s3 = self.addSwitch('s3',dpid='0000000000000003')
self.addLink(s1, s2a)
self.addLink(s1, s2b)
self.addLink(s2b, s2c)
self.addLink(s3, s2a)
self.addLink(s3, s2c)
host_1 = self.addHost('h1',ip='10.0.0.1',mac='10:00:00:00:00:01')
host_2 = self.addHost('h2',ip='10.0.0.2',mac='10:00:00:00:00:02')
self.addLink(host_1, s1)
self.addLink(host_2, s3)
topos = { 'shortest_path': ( lambda: Demo_Topo() ) }
Update the mapping service with required information
Sample payload:
{
"mappings": {
"outer-map": [
{
"id": "uva",
"inner-map": [
{
"inner-key": "ip_prefix",
"value": "10.0.0.1/32"
},
{
"inner-key": "mpls_label",
"value": "15"
},
{
"inner-key": "switch_port",
"value": "openflow:1:1"
}
]
},
{
"id": "eur",
"inner-map": [
{
"inner-key": "ip_prefix",
"value": "10.0.0.2/32"
},
{
"inner-key": "mpls_label",
"value": "16"
},
{
"inner-key": "switch_port",
"value": "openflow:3:1"
}
]
}
]
}
}
Create bidirectional Intents using Karaf command line or RestCONF:
Example:
intent:add -f uva -t eur -a ALLOW
intent:add -f eur -t uva -a ALLOW
Verify by running ovs-ofctl command on mininet if the flows were pushed correctly to the nodes that form the shortest path.
Example:
ovs-ofctl -O OpenFlow13 dump-flows s1
