Protocol specification¶

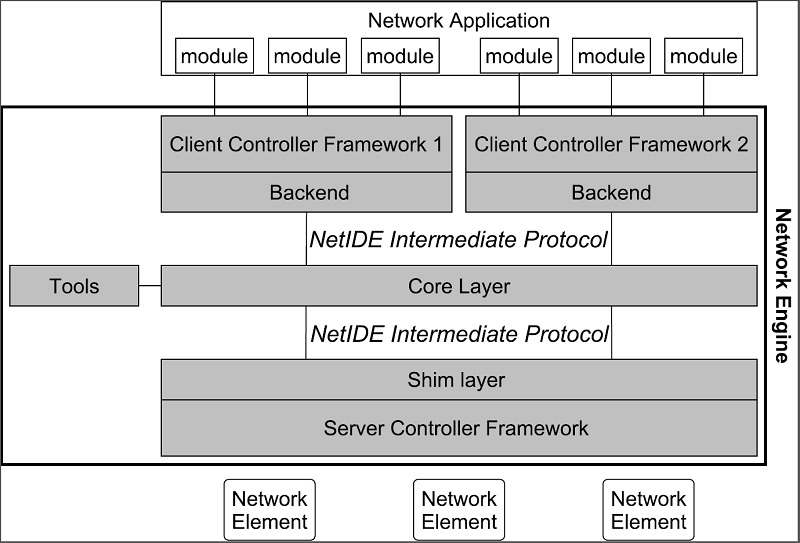

Messages of the NetIDE protocol contain two basic elements: the NetIDE header and the data (or payload). The NetIDE header, described below, is placed before the payload and serves as the communication and control link between the different components of the Network Engine. The payload can contain management messages, used by the components of the Network Engine to exchange relevant information, or control/configuration messages (such as OpenFlow, NETCONF, etc.) crossing the Network Engine generated by either network application modules or by the network elements.

The NetIDE header is defined as follows:

 0                   1                   2                   3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|   netide_ver  |      type     |             length            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                         xid                                   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                       module_id                               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                                                               |
+                     datapath_id                               +
|                                                               |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

where each tick mark represents one bit position. Alternatively, in a C-style coding format, the NetIDE header can be represented with the following structure:

struct netide_header {
    uint8_t netide_ver ;
    uint8_t type ;
    uint16_t length ;
    uint32_t xid
    uint32_t module_id
    uint64_t datapath_id
};

• netide_ver is the version of the NetIDE protocol (the current version is v1.2, which is identified with value 0x03).

• length is the total length of the payload in bytes.

• type contains a code that indicates the type of the message according with the following values:

  enum type {
      NETIDE_HELLO = 0x01 ,
      NETIDE_ERROR = 0x02 ,
      NETIDE_MGMT = 0x03 ,
      MODULE_ANNOUNCEMENT = 0x04 ,
      MODULE_ACKNOWLEDGE = 0x05 ,
      NETIDE_HEARTBEAT = 0x06 ,
      NETIDE_OPENFLOW = 0x11 ,
      NETIDE_NETCONF = 0x12 ,
      NETIDE_OPFLEX = 0x13
  };


• datapath_id is a 64-bit field that uniquely identifies the network elements.

• module_id is a 32-bits field that uniquely identifies Backends and application modules running on top of each client controller. The composition mechanism in the core layer leverages on this field to implement the correct execution flow of these modules.

• xid is the transaction identifier associated to the each message. Replies must use the same value to facilitate the pairing.

Module announcement¶

The first operation performed by a Backend is registering itself and the modules that it is running to the Core. This is done by using the MODULE_ANNOUNCEMENT and MODULE_ACKNOWLEDGE message types. As a result of this process, each Backend and application module can be recognized by the Core through an identifier (the module_id) placed in the NetIDE header. First, a Backend registers itself by using the following schema: backend-<platform name>-<pid>.

For example,odule a Ryu Backend will register by using the following name in the message backend-ryu-12345 where 12345 is the process ID of the registering instance of the Ryu platform. The format of the message is the following:

struct NetIDE_message {
    netide_ver = 0x03
    type = MODULE_ANNOUNCEMENT
    length = len(" backend -< platform_name >-<pid >")
    xid = 0
    module_id = 0
    datapath_id = 0
    data = " backend -< platform_name >-<pid >"
}

The answer generated by the Core will include a module_id number and the Backend name in the payload (the same indicated in the MODULE_ANNOUNCEMENT message):

struct NetIDE_message {
    netide_ver = 0x03
    type = MODULE_ACKNOWLEDGE
    length = len(" backend -< platform_name >-<pid >")
    xid = 0
    module_id = MODULE_ID
    datapath_id = 0
    data = " backend -< platform_name >-<pid >"
}

Once a Backend has successfully registered itself, it can start registering its modules with the same procedure described above by indicating the name of the module in the data (e.g. data=”Firewall”). From this point on, the Backend will insert its own module_id in the header of the messages it generates (e.g. heartbeat, hello messages, OpenFlow echo messages from the client controllers, etc.). Otherwise, it will encapsulate the control/configuration messages (e.g. FlowMod, PacketOut, FeatureRequest, NETCONF request, etc.) generated by network application modules with the specific +module_id+s.

Heartbeat¶

The heartbeat mechanism has been introduced after the adoption of the ZeroMQ messaging queuing library to transmit the NetIDE messages. Unfortunately, the ZeroMQ library does not offer any mechanism to find out about disrupted connections (and also completely unresponsive peers). This limitation of the ZeroMQ library can be an issue for the Core’s composition mechanism and for the tools connected to the Network Engine, as they cannot understand when an client controller disconnects or crashes. As a consequence, Backends must periodically send (let’s say every 5 seconds) a “heartbeat” message to the Core. If the Core does not receive at least one “heartbeat” message from the Backend within a certain timeframe, the Core considers it disconnected, removes all the related data from its memory structures and informs the relevant tools. The format of the message is the following:

struct NetIDE_message {
    netide_ver = 0x03
    type = NETIDE_HEARTBEAT
    length = 0
    xid = 0
    module_id = backend -id
    datapath_id = 0
    data = 0
}

Handshake¶

Upon a successful connection with the Core, the client controller must immediately send a hello message with the list of the control and/or management protocols needed by the applications deployed on top of it.

struct NetIDE_message {
    struct netide_header header ;
    uint8 data [0]
};

The header contains the following values:

• netide ver=0x03
• type=NETIDE_HELLO
• length=2*NR_PROTOCOLS
• data contains one 2-byte word (in big endian order) for each protocol, with the first byte containing the code of the protocol according to the above enum, while the second byte in- dictates the version of the protocol (e.g. according to the ONF specification, 0x01 for OpenFlow v1.0, 0x02 for OpenFlow v1.1, etc.). NETCONF version is marked with 0x01 that refers to the specification in the RFC6241, while OpFlex version is marked with 0x00 since this protocol is still in work-in-progress stage.

The Core relays hello messages to the server controller which responds with another hello message containing the following:

• netide ver=0x03
• type=NETIDE_HELLO
• length=2*NR_PROTOCOLS

If at least one of the protocols requested by the client is supported. In particular, data contains the codes of the protocols that match the client’s request (2-bytes words, big endian order). If the hand- shake fails because none of the requested protocols is supported by the server controller, the header of the answer is as follows:

• netide ver=0x03
• type=NETIDE_ERROR
• length=2*NR_PROTOCOLS
• data contains the codes of all the protocols supported by the server controller (2-bytes words, big endian order). In this case, the TCP session is terminated by the server controller just after the answer is received by the client. `
