OpenDaylight Service Function Chaining (SFC) provides the ability to define an ordered list of a network services (e.g. firewalls, load balancers). These service are then “stitched” together in the network to create a service chain. This project provides the infrastructure (chaining logic, APIs) needed for ODL to provision a service chain in the network and an end-user application for defining such chains.
SFC User Interface (SFC-UI) is based on Dlux project. It provides an easy way to create, read, update and delete configuration stored in datastore. Moreover, it shows the status of all SFC features (e.g installed, uninstalled) and Karaf log messages as well.
feature:install odl-sfc-ui
http://<odl_ip_address>:8181/sfc/index.html
The Southbound REST Plug-in is used to send configuration from datastore down to network devices supporting a REST API (i.e. they have a configured REST URI). It supports POST/PUT/DELETE operations, which are triggered accordingly by changes in the SFC data stores.
From the user perspective, the REST plug-in is another SFC Southbound plug-in used to communicate with network devices.
feature:install odl-sfc-sb-rest
Comprehensive tutorial on how to use the Southbound REST Plug-in and how to control network devices with it can be found on: https://wiki.opendaylight.org/view/Service_Function_Chaining:Main#SFC_101

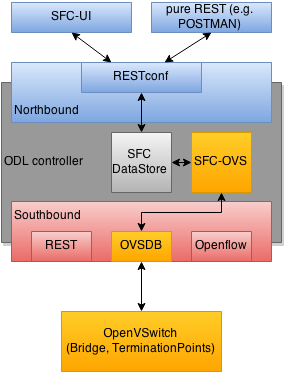

SFC-OVS provides integration of SFC with Open vSwitch (OVS) devices. Integration is realized through mapping of SFC objects (like SF, SFF, Classifier, etc.) to OVS objects (like Bridge, TerminationPoint=Port/Interface). The mapping takes care of automatic instantiation (setup) of corresponding object whenever its counterpart is created. For example, when a new SFF is created, the SFC-OVS plug-in will create a new OVS bridge and when a new OVS Bridge is created, the SFC-OVS plug-in will create a new SFF.
The feature is intended for SFC users willing to use Open vSwitch as underlying network infrastructure for deploying RSPs (Rendered Service Paths).
SFC-OVS uses the OVSDB MD-SAL Southbound API for getting/writing information from/to OVS devices. From the user perspective SFC-OVS acts as a layer between SFC datastore and OVSDB.
feature:install odl-sfc-ovs
ovs-vsctl set-manager tcp:<odl_ip_address>:6640
This tutorial shows the usual work flow when OVS configuration is transformed to corresponding SFC objects (in this case SFF).
ovs-vsctl set-manager tcp:<odl_ip_address>:6640
ovs-vsctl add-br br1
ovs-vsctl add-port br1 testPort
http://<odl_ip_address>:8181/sfc/index.html#/sfc/serviceforwarder
http://<odl_ip_address>:8181/restconf/config/service-function-forwarder:service-function-forwarders
There should be SFF, which name will be ending with br1 and the SFF should containt two DataPlane locators: br1 and testPort.
This tutorial shows the usual workflow during creation of OVS Bridge with use of SFC APIs.
ovs-vsctl set-manager tcp:<odl_ip_address>:6640
http://<odl_ip_address>:8181/restconf/operations/service-function-forwarder-ovs:create-ovs-bridge
Use Basic auth with credentials: “admin”, “admin” and set
Content-Type: application/json
. The content of POST request
should be following:{
"input":
{
"name": "br-test",
"ovs-node": {
"ip": "<Open_vSwitch_ip_address>"
}
}
}
Open_vSwitch_ip_address is IP address of machine, where Open vSwitch is installed.
In shell execute: ovs-vsctl show
. There should be Bridge with name
br-test and one port/interface called br-test.
Also, corresponding SFF for this OVS Bridge should be configured, which can be verified through SFC User Interface or RESTCONF as stated in previous tutorial.
Description of classifier can be found in: https://datatracker.ietf.org/doc/draft-ietf-sfc-architecture/
There are two types of classifier:
OpenFlow Classifier implements the classification criteria based on OpenFlow rules deployed into an OpenFlow switch. An Open vSwitch will take the role of a classifier and performs various encapsulations such NSH, VLAN, MPLS, etc. In the existing implementation, classifier can support NSH encapsulation. Matching information is based on ACL for MAC addresses, ports, protocol, IPv4 and IPv6. Supported protocols are TCP, UDP and SCTP. Actions information in the OF rules, shall be forwarding of the encapsulated packets with specific information related to the RSP.
The OVSDB Southbound interface is used to create an instance of a bridge in a specific location (via IP address). This bridge contains the OpenFlow rules that perform the classification of the packets and react accordingly. The OpenFlow Southbound interface is used to translate the ACL information into OF rules within the Open vSwitch.
Note
in order to create the instance of the bridge that takes the role of a classifier, an “empty” SFF must be created.
Classification information is based on MAC addresses, protocol, ports and IP. ACL gathers this information and is assigned to an RSP which turns to be a specific path for a Service Chain.
Classifier manages everything from starting the packet listener to creation (and removal) of appropriate ip(6)tables rules and marking received packets accordingly. Its functionality is available only on Linux as it leverdges NetfilterQueue, which provides access to packets matched by an iptables rule. Classifier requires root privileges to be able to operate.
So far it is capable of processing ACL for MAC addresses, ports, IPv4 and IPv6. Supported protocols are TCP and UDP.
Python code located in the project repository sfc-py/common/classifier.py.
Note
classifier assumes that Rendered Service Path (RSP) already exists in ODL when an ACL referencing it is obtained
After this process is over, every packet successfully matched to an iptables rule (i.e. successfully classified) will be NSH encapsulated and forwarded to a related SFF, which knows how to traverse the RSP.
Rules are created using appropriate iptables command. If the Access Control Entry (ACE) rule is MAC address related both iptables and IPv6 tables rules re issued. If ACE rule is IPv4 address related, only iptables rules are issued, same for IPv6.
Note
iptables raw table contains all created rules
Classifier runs alongside sfc_agent, therefore the command for starting it locally is:
sudo python3.4 sfc-py/sfc_agent.py --rest --odl-ip-port localhost:8181 --auto-sff-name --nfq-class
The Service Function Chaining (SFC) OpenFlow Renderer (SFC OF Renderer) implements Service Chaining on OpenFlow switches. It listens for the creation of a Rendered Service Path (RSP), and once received it programs Service Function Forwarders (SFF) that are hosted on OpenFlow capable switches to steer packets through the service chain.
Common acronyms used in the following sections:

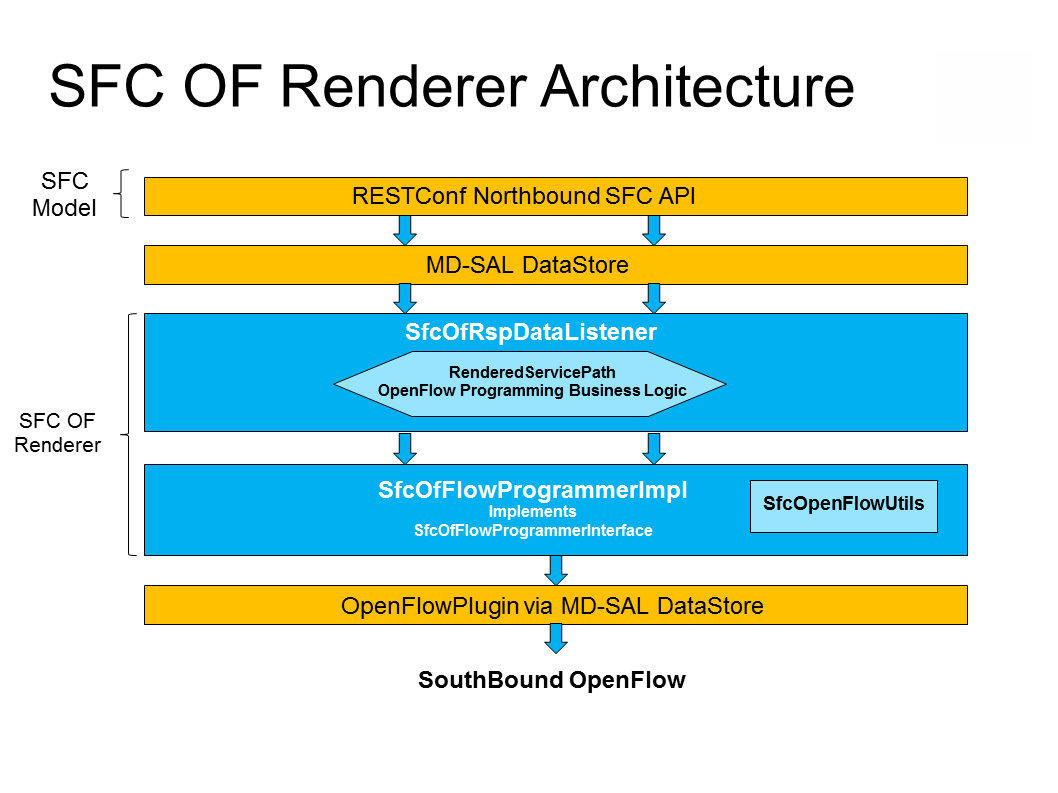

The SFC OF Renderer is invoked after a RSP is created using an MD-SAL
listener called SfcOfRspDataListener
. Upon SFC OF Renderer
initialization, the SfcOfRspDataListener
registers itself to listen
for RSP changes. When invoked, the SfcOfRspDataListener
processes
the RSP and calls the SfcOfFlowProgrammerImpl
to create the
necessary flows in the Service Function Forwarders configured in the
RSP. Refer to the following diagram for more details.
The SFC OpenFlow Renderer uses the following tables for its Flow pipeline:
The OpenFlow Table Pipeline is intended to be generic to work for all of the different encapsulations supported by SFC.
All of the tables are explained in detail in the following section.

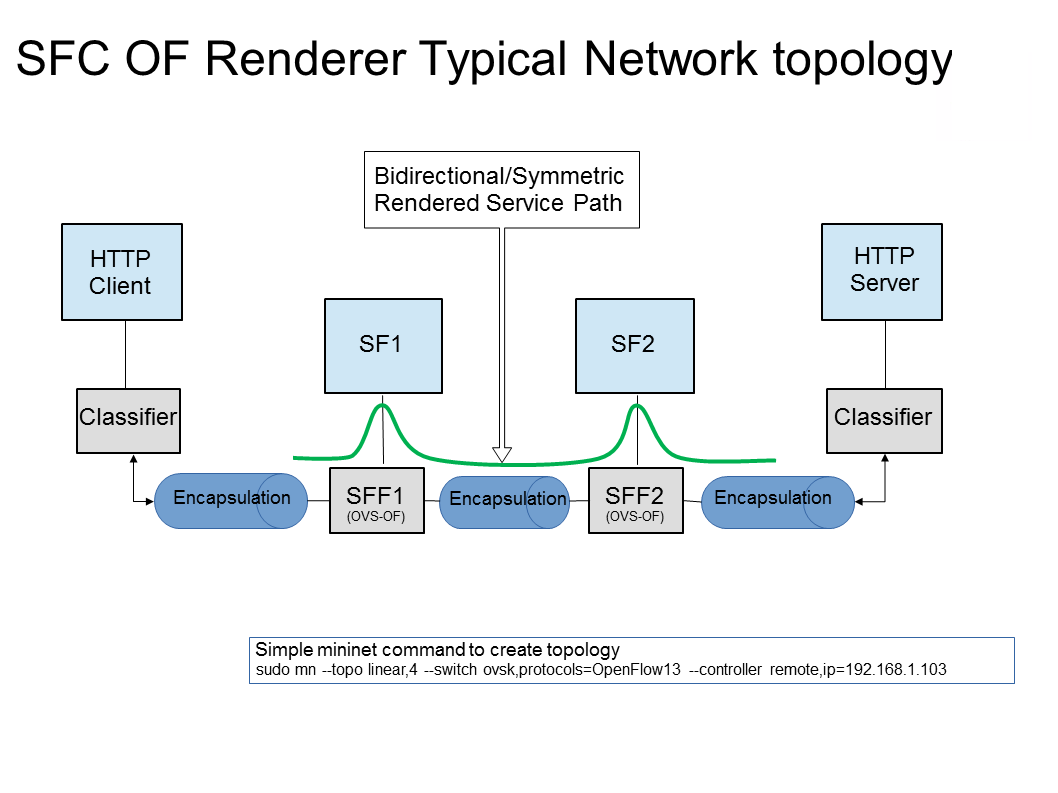

The SFFs (SFF1 and SFF2), SFs (SF1), and topology used for the flow tables in the following sections are as described in the following diagram.
It is possible for the SFF to also act as a classifier. This table maps subscriber traffic to RSPs, and is explained in detail in the classifier documentation.
If the SFF is not a classifier, then this table will just have a simple Goto Table 1 flow.
The Transport Ingress table has an entry per expected tunnel transport type to be received in a particular SFF, as established in the SFC configuration.
Here are two example on SFF1: one where the RSP ingress tunnel is MPLS assuming VLAN is used for the SFF-SF, and the other where the RSP ingress tunnel is NSH GRE (UDP port 4789):
Priority | Match | Action |
---|---|---|
256 | EtherType==0x8847 (MPLS unicast) | Goto Table 2 |
256 | EtherType==0x8100 (VLAN) | Goto Table 2 |
256 | EtherType==0x0800,udp,tp_dst==4789 (IP v4) | Goto Table 2 |
5 | Match Any | Drop |
Table: Table Transport Ingress
The Path Mapper table has an entry per expected tunnel transport info to be received in a particular SFF, as established in the SFC configuration. The tunnel transport info is used to determine the RSP Path ID, and is stored in the OpenFlow Metadata. This table is not used for NSH, since the RSP Path ID is stored in the NSH header.
For SF nodes that do not support NSH tunneling, the IP header DSCP field is used to store the RSP Path Id. The RSP Path Id is written to the DSCP field in the Transport Egress table for those packets sent to an SF.
Here is an example on SFF1, assuming the following details:
Priority | Match | Action |
---|---|---|
256 | MPLS Label==100 | RSP Path=1, Pop MPLS, Goto Table 4 |
256 | MPLS Label==101 | RSP Path=2, Pop MPLS, Goto Table 4 |
256 | VLAN ID==1000, IP DSCP==1 | RSP Path=1, Pop VLAN, Goto Table 4 |
256 | VLAN ID==1000, IP DSCP==2 | RSP Path=2, Pop VLAN, Goto Table 4 |
5 | Match Any | Goto Table 3 |
Table: Table Path Mapper
This table is only populated when PacketIn packets are received from the switch for TcpProxy type SFs. These flows are created with an inactivity timer of 60 seconds and will be automatically deleted upon expiration.
The Next Hop table uses the RSP Path Id and appropriate packet fields to determine where to send the packet next. For NSH, only the NSP (Network Services Path, RSP ID) and NSI (Network Services Index, next hop) fields from the NSH header are needed to determine the VXLAN tunnel destination IP. For VLAN or MPLS, then the source MAC address is used to determine the destination MAC address.
Here are two examples on SFF1, assuming SFF1 is connected to SFF2. RSP Paths 1 and 2 are symmetric VLAN paths. RSP Paths 3 and 4 are symmetric NSH paths. RSP Path 1 ingress packets come from external to SFC, for which we don’t have the source MAC address (MacSrc).
Priority | Match | Action |
---|---|---|
256 | RSP Path==1, MacSrc==SF1 | MacDst=SFF2, Goto Table 10 |
256 | RSP Path==2, MacSrc==SF1 | Goto Table 10 |
256 | RSP Path==2, MacSrc==SFF2 | MacDst=SF1, Goto Table 10 |
246 | RSP Path==1 | MacDst=SF1, Goto Table 10 |
256 | nsp=3,nsi=255 (SFF Ingress RSP 3) | load:0xa000002→NXM_NX_TUN_I PV4_DST[], Goto Table 10 |
256 | nsp=3,nsi=254 (SFF Ingress from SF, RSP 3) | load:0xa00000a→NXM_NX_TUN_I PV4_DST[], Goto Table 10 |
256 | nsp=4,nsi=254 (SFF1 Ingress from SFF2) | load:0xa00000a→NXM_NX_TUN_I PV4_DST[], Goto Table 10 |
5 | Match Any | Drop |
Table: Table Next Hop
The Transport Egress table prepares egress tunnel information and sends the packets out.
Here are two examples on SFF1. RSP Paths 1 and 2 are symmetric MPLS paths that use VLAN for the SFF-SF. RSP Paths 3 and 4 are symmetric NSH paths. Since it is assumed that switches used for NSH will only have one VXLAN port, the NSH packets are just sent back where they came from.
Priority | Match | Action |
---|---|---|
256 | RSP Path==1, MacDst==SF1 | Push VLAN ID 1000, Port=SF1 |
256 | RSP Path==1, MacDst==SFF2 | Push MPLS Label 101, Port=SFF2 |
256 | RSP Path==2, MacDst==SF1 | Push VLAN ID 1000, Port=SF1 |
246 | RSP Path==2 | Push MPLS Label 100, Port=Ingress |
256 | nsp=3,nsi=255 (SFF Ingress RSP 3) | IN_PORT |
256 | nsp=3,nsi=254 (SFF Ingress from SF, RSP 3) | IN_PORT |
256 | nsp=4,nsi=254 (SFF1 Ingress from SFF2) | IN_PORT |
5 | Match Any | Drop |
Table: Table Transport Egress
To use the SFC OpenFlow Renderer Karaf, at least the following Karaf features must be installed.
The following command can be used to view all of the currently installed Karaf features:
opendaylight-user@root>feature:list -i
Or, pipe the command to a grep to see a subset of the currently installed Karaf features:
opendaylight-user@root>feature:list -i | grep sfc
To install a particular feature, use the Karaf feature:install
command.
In this tutorial, 2 different encapsulations will be shown: MPLS and NSH. The following Network Topology diagram is a logical view of the SFFs and SFs involved in creating the Service Chains.
To use this example, SFF OpenFlow switches must be created and connected as illustrated above. Additionally, the SFs must be created and connected.
Note that RSP symmetry depends on Service Function Path symmetric field, if present. If not, the RSP will be symmetric if any of the SFs involved in the chain has the bidirectional field set to true.
The target environment is not important, but this use-case was created and tested on Linux.
The steps to use this tutorial are as follows. The referenced configuration in the steps is listed in the following sections.
There are numerous ways to send the configuration. In the following
configuration chapters, the appropriate curl
command is shown for
each configuration to be sent, including the URL.
Steps to configure the SFC OF Renderer tutorial:
SF
RESTCONF configurationSFF
RESTCONF configurationSFC
RESTCONF configurationSFP
RESTCONF configurationRSP
with a RESTCONF RPC commandOnce the configuration has been successfully created, query the Rendered Service Paths with either the SFC UI or via RESTCONF. Notice that the RSP is symmetrical, so the following 2 RSPs will be created:
At this point the Service Chains have been created, and the OpenFlow
Switches are programmed to steer traffic through the Service Chain.
Traffic can now be injected from a client into the Service Chain. To
debug problems, the OpenFlow tables can be dumped with the following
commands, assuming SFF1 is called s1
and SFF2 is called s2
.
sudo ovs-ofctl -O OpenFlow13 dump-flows s1
sudo ovs-ofctl -O OpenFlow13 dump-flows s2
In all the following configuration sections, replace the ${JSON}
string with the appropriate JSON configuration. Also, change the
localhost
destination in the URL accordingly.
The following configuration sections show how to create the different elements using NSH encapsulation.
The Service Function configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function:service-functions/
SF configuration JSON.
{
"service-functions": {
"service-function": [
{
"name": "sf1",
"type": "http-header-enrichment",
"ip-mgmt-address": "10.0.0.2",
"sf-data-plane-locator": [
{
"name": "sf1dpl",
"ip": "10.0.0.10",
"port": 4789,
"transport": "service-locator:vxlan-gpe",
"service-function-forwarder": "sff1"
}
]
},
{
"name": "sf2",
"type": "firewall",
"ip-mgmt-address": "10.0.0.3",
"sf-data-plane-locator": [
{
"name": "sf2dpl",
"ip": "10.0.0.20",
"port": 4789,
"transport": "service-locator:vxlan-gpe",
"service-function-forwarder": "sff2"
}
]
}
]
}
}
The Service Function Forwarder configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-forwarder:service-function-forwarders/
SFF configuration JSON.
{
"service-function-forwarders": {
"service-function-forwarder": [
{
"name": "sff1",
"service-node": "openflow:2",
"sff-data-plane-locator": [
{
"name": "sff1dpl",
"data-plane-locator":
{
"ip": "10.0.0.1",
"port": 4789,
"transport": "service-locator:vxlan-gpe"
}
}
],
"service-function-dictionary": [
{
"name": "sf1",
"sff-sf-data-plane-locator":
{
"sf-dpl-name": "sf1dpl",
"sff-dpl-name": "sff1dpl"
}
}
]
},
{
"name": "sff2",
"service-node": "openflow:3",
"sff-data-plane-locator": [
{
"name": "sff2dpl",
"data-plane-locator":
{
"ip": "10.0.0.2",
"port": 4789,
"transport": "service-locator:vxlan-gpe"
}
}
],
"service-function-dictionary": [
{
"name": "sf2",
"sff-sf-data-plane-locator":
{
"sf-dpl-name": "sf2dpl",
"sff-dpl-name": "sff2dpl"
}
}
]
}
]
}
}
The Service Function Chain configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-chain:service-function-chains/
SFC configuration JSON.
{
"service-function-chains": {
"service-function-chain": [
{
"name": "sfc-chain1",
"sfc-service-function": [
{
"name": "hdr-enrich-abstract1",
"type": "http-header-enrichment"
},
{
"name": "firewall-abstract1",
"type": "firewall"
}
]
}
]
}
}
The Service Function Path configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-path:service-function-paths/
SFP configuration JSON.
{
"service-function-paths": {
"service-function-path": [
{
"name": "sfc-path1",
"service-chain-name": "sfc-chain1",
"transport-type": "service-locator:vxlan-gpe",
"symmetric": true
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X POST --user admin:admin http://localhost:8181/restconf/operations/rendered-service-path:create-rendered-path/
RSP creation JSON.
{
"input": {
"name": "sfc-path1",
"parent-service-function-path": "sfc-path1"
}
}
The following command can be used to remove a Rendered Service Path
called sfc-path1
:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '{"input": {"name": "sfc-path1" } }' -X POST --user admin:admin http://localhost:8181/restconf/operations/rendered-service-path:delete-rendered-path/
The following command can be used to query all of the created Rendered Service Paths:
curl -H "Content-Type: application/json" -H "Cache-Control: no-cache" -X GET --user admin:admin http://localhost:8181/restconf/operational/rendered-service-path:rendered-service-paths/
The following configuration sections show how to create the different elements using MPLS encapsulation.
The Service Function configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function:service-functions/
SF configuration JSON.
{
"service-functions": {
"service-function": [
{
"name": "sf1",
"type": "http-header-enrichment",
"ip-mgmt-address": "10.0.0.2",
"sf-data-plane-locator": [
{
"name": "sf1-sff1",
"mac": "00:00:08:01:02:01",
"vlan-id": 1000,
"transport": "service-locator:mac",
"service-function-forwarder": "sff1"
}
]
},
{
"name": "sf2",
"type": "firewall",
"ip-mgmt-address": "10.0.0.3",
"sf-data-plane-locator": [
{
"name": "sf2-sff2",
"mac": "00:00:08:01:03:01",
"vlan-id": 2000,
"transport": "service-locator:mac",
"service-function-forwarder": "sff2"
}
]
}
]
}
}
The Service Function Forwarder configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-forwarder:service-function-forwarders/
SFF configuration JSON.
{
"service-function-forwarders": {
"service-function-forwarder": [
{
"name": "sff1",
"service-node": "openflow:2",
"sff-data-plane-locator": [
{
"name": "ulSff1Ingress",
"data-plane-locator":
{
"mpls-label": 100,
"transport": "service-locator:mpls"
},
"service-function-forwarder-ofs:ofs-port":
{
"mac": "11:11:11:11:11:11",
"port-id" : "1"
}
},
{
"name": "ulSff1ToSff2",
"data-plane-locator":
{
"mpls-label": 101,
"transport": "service-locator:mpls"
},
"service-function-forwarder-ofs:ofs-port":
{
"mac": "33:33:33:33:33:33",
"port-id" : "2"
}
},
{
"name": "toSf1",
"data-plane-locator":
{
"mac": "22:22:22:22:22:22",
"vlan-id": 1000,
"transport": "service-locator:mac",
},
"service-function-forwarder-ofs:ofs-port":
{
"mac": "33:33:33:33:33:33",
"port-id" : "3"
}
}
],
"service-function-dictionary": [
{
"name": "sf1",
"sff-sf-data-plane-locator":
{
"sf-dpl-name": "sf1-sff1",
"sff-dpl-name": "toSf1"
}
}
]
},
{
"name": "sff2",
"service-node": "openflow:3",
"sff-data-plane-locator": [
{
"name": "ulSff2Ingress",
"data-plane-locator":
{
"mpls-label": 101,
"transport": "service-locator:mpls"
},
"service-function-forwarder-ofs:ofs-port":
{
"mac": "44:44:44:44:44:44",
"port-id" : "1"
}
},
{
"name": "ulSff2Egress",
"data-plane-locator":
{
"mpls-label": 102,
"transport": "service-locator:mpls"
},
"service-function-forwarder-ofs:ofs-port":
{
"mac": "66:66:66:66:66:66",
"port-id" : "2"
}
},
{
"name": "toSf2",
"data-plane-locator":
{
"mac": "55:55:55:55:55:55",
"vlan-id": 2000,
"transport": "service-locator:mac"
},
"service-function-forwarder-ofs:ofs-port":
{
"port-id" : "3"
}
}
],
"service-function-dictionary": [
{
"name": "sf2",
"sff-sf-data-plane-locator":
{
"sf-dpl-name": "sf2-sff2",
"sff-dpl-name": "toSf2"
},
"service-function-forwarder-ofs:ofs-port":
{
"port-id" : "3"
}
}
]
}
]
}
}
The Service Function Chain configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-chain:service-function-chains/
SFC configuration JSON.
{
"service-function-chains": {
"service-function-chain": [
{
"name": "sfc-chain1",
"sfc-service-function": [
{
"name": "hdr-enrich-abstract1",
"type": "http-header-enrichment"
},
{
"name": "firewall-abstract1",
"type": "firewall"
}
]
}
]
}
}
The Service Function Path configuration can be sent with the following command:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-path:service-function-paths/
SFP configuration JSON.
{
"service-function-paths": {
"service-function-path": [
{
"name": "sfc-path1",
"service-chain-name": "sfc-chain1",
"transport-type": "service-locator:mpls",
"symmetric": true
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X POST --user admin:admin http://localhost:8181/restconf/operations/rendered-service-path:create-rendered-path/
RSP creation JSON.
{
"input": {
"name": "sfc-path1",
"parent-service-function-path": "sfc-path1"
}
}
The following command can be used to remove a Rendered Service Path
called sfc-path1
:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '{"input": {"name": "sfc-path1" } }' -X POST --user admin:admin http://localhost:8181/restconf/operations/rendered-service-path:delete-rendered-path/
The following command can be used to query all of the created Rendered Service Paths:
curl -H "Content-Type: application/json" -H "Cache-Control: no-cache" -X GET --user admin:admin http://localhost:8181/restconf/operational/rendered-service-path:rendered-service-paths/
The early Service Function Chaining (SFC) renderer for IOS-XE devices (SFC IOS-XE renderer) implements Service Chaining functionality on IOS-XE capable switches. It listens for the creation of a Rendered Service Path (RSP) and sets up Service Function Forwarders (SFF) that are hosted on IOS-XE switches to steer traffic through the service chain.
Common acronyms used in the following sections:
When the SFC IOS-XE renderer is initialized, all required listeners are
registered to handle incoming data. It involves CSR/IOS-XE
NodeListener
which stores data about all configurable devices
including their mountpoints (used here as databrokers),
ServiceFunctionListener
, ServiceForwarderListener
(see mapping)
and RenderedPathListener
used to listen for RSP changes. When the
SFC IOS-XE renderer is invoked, RenderedPathListener
calls the
IosXeRspProcessor
which processes the RSP change and creates all
necessary Service Paths and Remote Service Forwarders (if necessary) on
IOS-XE devices.
Each Service Path is defined by index (represented by NSP) and contains service path entries. Each entry has appropriate service index (NSI) and definition of next hop. Next hop can be Service Function, different Service Function Forwarder or definition of end of chain - terminate. After terminating, the packet is sent to destination. If a SFF is defined as a next hop, it has to be present on device in the form of Remote Service Forwarder. RSFs are also created during RSP processing.
Example of Service Path:
service-chain service-path 200
service-index 255 service-function firewall-1
service-index 254 service-function dpi-1
service-index 253 terminate
Renderer contains mappers for SFs and SFFs. IOS-XE capable device is
using its own definition of Service Functions and Service Function
Forwarders according to appropriate .yang file.
ServiceFunctionListener
serves as a listener for SF changes. If SF
appears in datastore, listener extracts its management ip address and
looks into cached IOS-XE nodes. If some of available nodes match,
Service function is mapped in IosXeServiceFunctionMapper
to be
understandable by IOS-XE device and it’s written into device’s config.
ServiceForwarderListener
is used in a similar way. All SFFs with
suitable management ip address it mapped in
IosXeServiceForwarderMapper
. Remapped SFFs are configured as a Local
Service Forwarders. It is not possible to directly create Remote Service
Forwarder using IOS-XE renderer. RSF is created only during RSP
processing.
To use the SFC IOS-XE Renderer Karaf, at least the following Karaf features must be installed:
This tutorial is a simple example how to create Service Path on IOS-XE capable device using IOS-XE renderer
To connect to IOS-XE device, it is necessary to use several modified
yang models and override device’s ones. All .yang files are in the
Yang/netconf
folder in the sfc-ios-xe-renderer module
in the SFC
project. These files have to be copied to the cache/schema
directory, before Karaf is started. After that, custom capabilities have
to be sent to network-topology:
PUT ./config/network-topology:network-topology/topology/topology-netconf/node/<device-name>
<node xmlns="urn:TBD:params:xml:ns:yang:network-topology">
<node-id>device-name</node-id>
<host xmlns="urn:opendaylight:netconf-node-topology">device-ip</host>
<port xmlns="urn:opendaylight:netconf-node-topology">2022</port>
<username xmlns="urn:opendaylight:netconf-node-topology">login</username>
<password xmlns="urn:opendaylight:netconf-node-topology">password</password>
<tcp-only xmlns="urn:opendaylight:netconf-node-topology">false</tcp-only>
<keepalive-delay xmlns="urn:opendaylight:netconf-node-topology">0</keepalive-delay>
<yang-module-capabilities xmlns="urn:opendaylight:netconf-node-topology">
<override>true</override>
<capability xmlns="urn:opendaylight:netconf-node-topology">
urn:ietf:params:xml:ns:yang:ietf-inet-types?module=ietf-inet-types&revision=2013-07-15
</capability>
<capability xmlns="urn:opendaylight:netconf-node-topology">
urn:ietf:params:xml:ns:yang:ietf-yang-types?module=ietf-yang-types&revision=2013-07-15
</capability>
<capability xmlns="urn:opendaylight:netconf-node-topology">
urn:ios?module=ned&revision=2016-03-08
</capability>
<capability xmlns="urn:opendaylight:netconf-node-topology">
http://tail-f.com/yang/common?module=tailf-common&revision=2015-05-22
</capability>
<capability xmlns="urn:opendaylight:netconf-node-topology">
http://tail-f.com/yang/common?module=tailf-meta-extensions&revision=2013-11-07
</capability>
<capability xmlns="urn:opendaylight:netconf-node-topology">
http://tail-f.com/yang/common?module=tailf-cli-extensions&revision=2015-03-19
</capability>
</yang-module-capabilities>
</node>
Note
The device name in the URL and in the XML must match.
When the IOS-XE renderer is installed, all NETCONF nodes in topology-netconf are processed and all capable nodes with accessible mountpoints are cached. The first step is to create LSF on node.
Service Function Forwarder configuration
PUT ./config/service-function-forwarder:service-function-forwarders
{
"service-function-forwarders": {
"service-function-forwarder": [
{
"name": "CSR1Kv-2",
"ip-mgmt-address": "172.25.73.23",
"sff-data-plane-locator": [
{
"name": "CSR1Kv-2-dpl",
"data-plane-locator": {
"transport": "service-locator:vxlan-gpe",
"port": 6633,
"ip": "10.99.150.10"
}
}
]
}
]
}
}
If the IOS-XE node with appropriate management IP exists, this configuration is mapped and LSF is created on the device. The same approach is used for Service Functions.
PUT ./config/service-function:service-functions
{
"service-functions": {
"service-function": [
{
"name": "Firewall",
"ip-mgmt-address": "172.25.73.23",
"type": "firewall",
"sf-data-plane-locator": [
{
"name": "firewall-dpl",
"port": 6633,
"ip": "12.1.1.2",
"transport": "service-locator:gre",
"service-function-forwarder": "CSR1Kv-2"
}
]
},
{
"name": "Dpi",
"ip-mgmt-address": "172.25.73.23",
"type":"dpi",
"sf-data-plane-locator": [
{
"name": "dpi-dpl",
"port": 6633,
"ip": "12.1.1.1",
"transport": "service-locator:gre",
"service-function-forwarder": "CSR1Kv-2"
}
]
},
{
"name": "Qos",
"ip-mgmt-address": "172.25.73.23",
"type":"qos",
"sf-data-plane-locator": [
{
"name": "qos-dpl",
"port": 6633,
"ip": "12.1.1.4",
"transport": "service-locator:gre",
"service-function-forwarder": "CSR1Kv-2"
}
]
}
]
}
}
All these SFs are configured on the same device as the LSF. The next step is to prepare Service Function Chain.
PUT ./config/service-function-chain:service-function-chains/
{
"service-function-chains": {
"service-function-chain": [
{
"name": "CSR3XSF",
"sfc-service-function": [
{
"name": "Firewall",
"type": "firewall"
},
{
"name": "Dpi",
"type": "dpi"
},
{
"name": "Qos",
"type": "qos"
}
]
}
]
}
}
Service Function Path:
PUT ./config/service-function-path:service-function-paths/
{
"service-function-paths": {
"service-function-path": [
{
"name": "CSR3XSF-Path",
"service-chain-name": "CSR3XSF",
"starting-index": 255,
"symmetric": "true"
}
]
}
}
Without a classifier, there is possibility to POST RSP directly.
POST ./operations/rendered-service-path:create-rendered-path
{
"input": {
"name": "CSR3XSF-Path-RSP",
"parent-service-function-path": "CSR3XSF-Path"
}
}
The resulting configuration:
!
service-chain service-function-forwarder local
ip address 10.99.150.10
!
service-chain service-function firewall
ip address 12.1.1.2
encapsulation gre enhanced divert
!
service-chain service-function dpi
ip address 12.1.1.1
encapsulation gre enhanced divert
!
service-chain service-function qos
ip address 12.1.1.4
encapsulation gre enhanced divert
!
service-chain service-path 1
service-index 255 service-function firewall
service-index 254 service-function dpi
service-index 253 service-function qos
service-index 252 terminate
!
service-chain service-path 2
service-index 255 service-function qos
service-index 254 service-function dpi
service-index 253 service-function firewall
service-index 252 terminate
!
Service Path 1 is direct, Service Path 2 is reversed. Path numbers may vary.
When creating the Rendered Service Path, the origin SFC controller chose the first available service function from a list of service function names. This may result in many issues such as overloaded service functions and a longer service path as SFC has no means to understand the status of service functions and network topology. The service function selection framework supports at least four algorithms (Random, Round Robin, Load Balancing and Shortest Path) to select the most appropriate service function when instantiating the Rendered Service Path. In addition, it is an extensible framework that allows 3rd party selection algorithm to be plugged in.
The following figure illustrates the service function selection framework and algorithms.
A user has three different ways to select one service function selection algorithm:

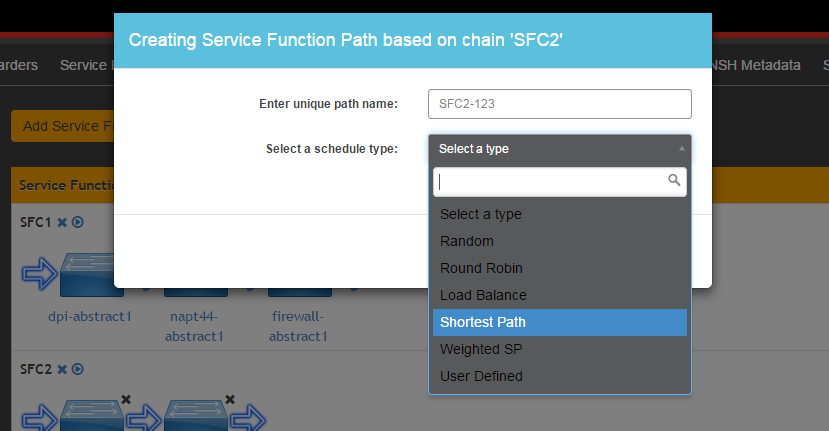

The RESTCONF northbound SFC API provides GUI/RESTCONF interactions for choosing the service function selection algorithm. MD-SAL data store provides all supported service function selection algorithms, and provides APIs to enable one of the provided service function selection algorithms. Once a service function selection algorithm is enabled, the service function selection algorithm will work when creating a Rendered Service Path.
Administrator could use both the following ways to select one of the selection algorithm when creating a Rendered Service Path.
Command line tools. Command line tools includes Linux commands curl or even browser plugins such as POSTMAN(for Google Chrome) or RESTClient(for Mozilla Firefox). In this case, the following JSON content is needed at the moment: Service_function_schudule_type.json
{
"service-function-scheduler-types": {
"service-function-scheduler-type": [
{
"name": "random",
"type": "service-function-scheduler-type:random",
"enabled": false
},
{
"name": "roundrobin",
"type": "service-function-scheduler-type:round-robin",
"enabled": true
},
{
"name": "loadbalance",
"type": "service-function-scheduler-type:load-balance",
"enabled": false
},
{
"name": "shortestpath",
"type": "service-function-scheduler-type:shortest-path",
"enabled": false
}
]
}
}
If using the Linux curl command, it could be:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '$${Service_function_schudule_type.json}'
-X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-scheduler-type:service-function-scheduler-types/
Here is also a snapshot for using the RESTClient plugin:
Note
Some service function selection algorithms in the drop list are not implemented yet. Only the first three algorithms are committed at the moment.
Select Service Function from the name list randomly.
The Random algorithm is used to select one Service Function from the name list which it gets from the Service Function Type randomly.
The Random algorithm will work either no algorithm type is selected or the Random algorithm is selected.
Once the plugins are installed into Karaf successfully, a user can use his favorite method to select the Random scheduling algorithm type. There are no special instructions for using the Random algorithm.
Select Service Function from the name list in Round Robin manner.
The Round Robin algorithm is used to select one Service Function from the name list which it gets from the Service Function Type in a Round Robin manner, this will balance workloads to all Service Functions. However, this method cannot help all Service Functions load the same workload because it’s flow-based Round Robin.
The Round Robin algorithm will work one the Round Robin algorithm is selected.
Once the plugins are installed into Karaf successfully, a user can use his favorite method to select the Round Robin scheduling algorithm type. There are no special instructions for using the Round Robin algorithm.
Select appropriate Service Function by actual CPU utilization.
The Load Balance Algorithm is used to select appropriate Service Function by actual CPU utilization of service functions. The CPU utilization of service function obtained from monitoring information reported via NETCONF.
Set up VMs as Service Functions. enable NETCONF server in VMs. Ensure that you specify them separately. For example:
static XML data like this:
<?xml version="1.0" encoding="UTF-8"?>
<service-function-description-monitor-report>
<SF-description>
<number-of-dataports>2</number-of-dataports>
<capabilities>
<supported-packet-rate>5</supported-packet-rate>
<supported-bandwidth>10</supported-bandwidth>
<supported-ACL-number>2000</supported-ACL-number>
<RIB-size>200</RIB-size>
<FIB-size>100</FIB-size>
<ports-bandwidth>
<port-bandwidth>
<port-id>1</port-id>
<ipaddress>10.0.0.1</ipaddress>
<macaddress>00:1e:67:a2:5f:f4</macaddress>
<supported-bandwidth>20</supported-bandwidth>
</port-bandwidth>
<port-bandwidth>
<port-id>2</port-id>
<ipaddress>10.0.0.2</ipaddress>
<macaddress>01:1e:67:a2:5f:f6</macaddress>
<supported-bandwidth>10</supported-bandwidth>
</port-bandwidth>
</ports-bandwidth>
</capabilities>
</SF-description>
<SF-monitoring-info>
<liveness>true</liveness>
<resource-utilization>
<packet-rate-utilization>10</packet-rate-utilization>
<bandwidth-utilization>15</bandwidth-utilization>
<CPU-utilization>12</CPU-utilization>
<memory-utilization>17</memory-utilization>
<available-memory>8</available-memory>
<RIB-utilization>20</RIB-utilization>
<FIB-utilization>25</FIB-utilization>
<power-utilization>30</power-utilization>
<SF-ports-bandwidth-utilization>
<port-bandwidth-utilization>
<port-id>1</port-id>
<bandwidth-utilization>20</bandwidth-utilization>
</port-bandwidth-utilization>
<port-bandwidth-utilization>
<port-id>2</port-id>
<bandwidth-utilization>30</bandwidth-utilization>
</port-bandwidth-utilization>
</SF-ports-bandwidth-utilization>
</resource-utilization>
</SF-monitoring-info>
</service-function-description-monitor-report>
Select appropriate Service Function by Dijkstra’s algorithm. Dijkstra’s algorithm is an algorithm for finding the shortest paths between nodes in a graph.
The Shortest Path Algorithm is used to select appropriate Service Function by actual topology.
service-function-forwarders.json:
{
"service-function-forwarders": {
"service-function-forwarder": [
{
"name": "SFF-br1",
"service-node": "OVSDB-test01",
"rest-uri": "http://localhost:5001",
"sff-data-plane-locator": [
{
"name": "eth0",
"service-function-forwarder-ovs:ovs-bridge": {
"uuid": "4c3778e4-840d-47f4-b45e-0988e514d26c",
"bridge-name": "br-tun"
},
"data-plane-locator": {
"port": 5000,
"ip": "192.168.1.1",
"transport": "service-locator:vxlan-gpe"
}
}
],
"service-function-dictionary": [
{
"sff-sf-data-plane-locator": {
"sf-dpl-name": "sf1dpl",
"sff-dpl-name": "sff1dpl"
},
"name": "napt44-1",
"type": "napt44"
},
{
"sff-sf-data-plane-locator": {
"sf-dpl-name": "sf2dpl",
"sff-dpl-name": "sff2dpl"
},
"name": "firewall-1",
"type": "firewall"
}
],
"connected-sff-dictionary": [
{
"name": "SFF-br3"
}
]
},
{
"name": "SFF-br2",
"service-node": "OVSDB-test01",
"rest-uri": "http://localhost:5002",
"sff-data-plane-locator": [
{
"name": "eth0",
"service-function-forwarder-ovs:ovs-bridge": {
"uuid": "fd4d849f-5140-48cd-bc60-6ad1f5fc0a1",
"bridge-name": "br-tun"
},
"data-plane-locator": {
"port": 5000,
"ip": "192.168.1.2",
"transport": "service-locator:vxlan-gpe"
}
}
],
"service-function-dictionary": [
{
"sff-sf-data-plane-locator": {
"sf-dpl-name": "sf1dpl",
"sff-dpl-name": "sff1dpl"
},
"name": "napt44-2",
"type": "napt44"
},
{
"sff-sf-data-plane-locator": {
"sf-dpl-name": "sf2dpl",
"sff-dpl-name": "sff2dpl"
},
"name": "firewall-2",
"type": "firewall"
}
],
"connected-sff-dictionary": [
{
"name": "SFF-br3"
}
]
},
{
"name": "SFF-br3",
"service-node": "OVSDB-test01",
"rest-uri": "http://localhost:5005",
"sff-data-plane-locator": [
{
"name": "eth0",
"service-function-forwarder-ovs:ovs-bridge": {
"uuid": "fd4d849f-5140-48cd-bc60-6ad1f5fc0a4",
"bridge-name": "br-tun"
},
"data-plane-locator": {
"port": 5000,
"ip": "192.168.1.2",
"transport": "service-locator:vxlan-gpe"
}
}
],
"service-function-dictionary": [
{
"sff-sf-data-plane-locator": {
"sf-dpl-name": "sf1dpl",
"sff-dpl-name": "sff1dpl"
},
"name": "test-server",
"type": "dpi"
},
{
"sff-sf-data-plane-locator": {
"sf-dpl-name": "sf2dpl",
"sff-dpl-name": "sff2dpl"
},
"name": "test-client",
"type": "dpi"
}
],
"connected-sff-dictionary": [
{
"name": "SFF-br1"
},
{
"name": "SFF-br2"
}
]
}
]
}
}
service-functions.json:
{
"service-functions": {
"service-function": [
{
"rest-uri": "http://localhost:10001",
"ip-mgmt-address": "10.3.1.103",
"sf-data-plane-locator": [
{
"name": "preferred",
"port": 10001,
"ip": "10.3.1.103",
"service-function-forwarder": "SFF-br1"
}
],
"name": "napt44-1",
"type": "napt44"
},
{
"rest-uri": "http://localhost:10002",
"ip-mgmt-address": "10.3.1.103",
"sf-data-plane-locator": [
{
"name": "master",
"port": 10002,
"ip": "10.3.1.103",
"service-function-forwarder": "SFF-br2"
}
],
"name": "napt44-2",
"type": "napt44"
},
{
"rest-uri": "http://localhost:10003",
"ip-mgmt-address": "10.3.1.103",
"sf-data-plane-locator": [
{
"name": "1",
"port": 10003,
"ip": "10.3.1.102",
"service-function-forwarder": "SFF-br1"
}
],
"name": "firewall-1",
"type": "firewall"
},
{
"rest-uri": "http://localhost:10004",
"ip-mgmt-address": "10.3.1.103",
"sf-data-plane-locator": [
{
"name": "2",
"port": 10004,
"ip": "10.3.1.101",
"service-function-forwarder": "SFF-br2"
}
],
"name": "firewall-2",
"type": "firewall"
},
{
"rest-uri": "http://localhost:10005",
"ip-mgmt-address": "10.3.1.103",
"sf-data-plane-locator": [
{
"name": "3",
"port": 10005,
"ip": "10.3.1.104",
"service-function-forwarder": "SFF-br3"
}
],
"name": "test-server",
"type": "dpi"
},
{
"rest-uri": "http://localhost:10006",
"ip-mgmt-address": "10.3.1.103",
"sf-data-plane-locator": [
{
"name": "4",
"port": 10006,
"ip": "10.3.1.102",
"service-function-forwarder": "SFF-br3"
}
],
"name": "test-client",
"type": "dpi"
}
]
}
}
The deployed topology like this:
+----+ +----+ +----+
|sff1|+----------|sff3|---------+|sff2|
+----+ +----+ +----+
| |
+--------------+ +--------------+
| | | |
+----------+ +--------+ +----------+ +--------+
|firewall-1| |napt44-1| |firewall-2| |napt44-2|
+----------+ +--------+ +----------+ +--------+
SFC Load-Balancing feature implements load balancing of Service Functions, rather than a one-to-one mapping between Service-Function-Forwarder and Service-Function.
Service Function Groups (SFG) can replace Service Functions (SF) in the Rendered Path model. A Service Path can only be defined using SFGs or SFs, but not a combination of both.
Relevant objects in the YANG model are as follows:
Service-Function-Group-Algorithm:
Service-Function-Group-Algorithms {
Service-Function-Group-Algorithm {
String name
String type
}
}
Available types: ALL, SELECT, INDIRECT, FAST_FAILURE
Service-Function-Group:
Service-Function-Groups {
Service-Function-Group {
String name
String serviceFunctionGroupAlgorithmName
String type
String groupId
Service-Function-Group-Element {
String service-function-name
int index
}
}
}
ServiceFunctionHop: holds a reference to a name of SFG (or SF)
This tutorial will explain how to create a simple SFC configuration, with SFG instead of SF. In this example, the SFG will include two existing SF.
For general SFC setup and scenarios, please see the SFC wiki page: https://wiki.opendaylight.org/view/Service_Function_Chaining:Main#SFC_101
{
"service-function-group-algorithm": [
{
"name": "alg1"
"type": "ALL"
}
]
}
(Header “content-type”: application/json)
In order to delete all algorithms: DELETE - http://127.0.0.1:8181/restconf/config/service-function-group-algorithm:service-function-group-algorithms
POST - http://127.0.0.1:8181/restconf/config/service-function-group:service-function-groups
{
"service-function-group": [
{
"rest-uri": "http://localhost:10002",
"ip-mgmt-address": "10.3.1.103",
"algorithm": "alg1",
"name": "SFG1",
"type": "napt44",
"sfc-service-function": [
{
"name":"napt44-104"
},
{
"name":"napt44-103-1"
}
]
}
]
}
GET - http://127.0.0.1:8181/restconf/config/service-function-group:service-function-groups
Several deployments use traffic engineering, policy routing, segment routing or service function chaining (SFC) to steer packets through a specific set of nodes. In certain cases regulatory obligations or a compliance policy require to prove that all packets that are supposed to follow a specific path are indeed being forwarded across the exact set of nodes specified. I.e. if a packet flow is supposed to go through a series of service functions or network nodes, it has to be proven that all packets of the flow actually went through the service chain or collection of nodes specified by the policy. In case the packets of a flow weren’t appropriately processed, a proof of transit egress device would be required to identify the policy violation and take corresponding actions (e.g. drop or redirect the packet, send an alert etc.) corresponding to the policy.
Service Function Chaining (SFC) Proof of Transit (SFC PoT) implements Service Chaining Proof of Transit functionality on capable network devices. Proof of Transit defines mechanisms to securely prove that traffic transited the defined path. After the creation of an Rendered Service Path (RSP), a user can configure to enable SFC proof of transit on the selected RSP to effect the proof of transit.
To ensure that the data traffic follows a specified path or a function chain, meta-data is added to user traffic in the form of a header. The meta-data is based on a ‘share of a secret’ and provisioned by the SFC PoT configuration from ODL over a secure channel to each of the nodes in the SFC. This meta-data is updated at each of the service-hop while a designated node called the verifier checks whether the collected meta-data allows the retrieval of the secret.
The following diagram shows the overview and essentially utilizes Shamir’s secret sharing algorithm, where each service is given a point on the curve and when the packet travels through each service, it collects these points (meta-data) and a verifier node tries to re-construct the curve using the collected points, thus verifying that the packet traversed through all the service functions along the chain.
Transport options for different protocols includes a new TLV in SR header for Segment Routing, NSH Type-2 meta-data, IPv6 extension headers, IPv4 variants and for VXLAN-GPE. More details are captured in the following link.
In-situ OAM: https://github.com/CiscoDevNet/iOAM
Common acronyms used in the following sections:
SFC PoT feature is implemented as a two-part implementation with a north-bound handler that augments the RSP while a south-bound renderer auto-generates the required parameters and passes it on to the nodes that belong to the SFC.
The north-bound feature is enabled via odl-sfc-pot feature while the south-bound renderer is enabled via the odl-sfc-pot-netconf-renderer feature. For the purposes of SFC PoT handling, both features must be installed.
RPC handlers to augment the RSP are part of SfcPotRpc
while the
RSP augmentation to enable or disable SFC PoT feature is done via
SfcPotRspProcessor
.
In order to implement SFC Proof of Transit for a service function chain, an RSP is a pre-requisite to identify the SFC to enable SFC PoT on. SFC Proof of Transit for a particular RSP is enabled by an RPC request to the controller along with necessary parameters to control some of the aspects of the SFC Proof of Transit process.
The RPC handler identifies the RSP and adds PoT feature meta-data like enable/disable, number of PoT profiles, profiles refresh parameters etc., that directs the south-bound renderer appropriately when RSP changes are noticed via call-backs in the renderer handlers.
To use the SFC Proof of Transit Karaf, at least the following Karaf features must be installed:
Please note that the odl-sfc-pot-netconf-renderer or other renderers in future must be installed for the feature to take full-effect. The details of the renderer features are described in other parts of this document.
This tutorial is a simple example how to configure Service Function Chain Proof of Transit using SFC POT feature.
To enable a device to handle SFC Proof of Transit, it is expected that the NETCONF node device advertise capability as under ioam-sb-pot.yang present under sfc-model/src/main/yang folder. It is also expected that base NETCONF support be enabled and its support capability advertised as capabilities.
NETCONF support:urn:ietf:params:netconf:base:1.0
PoT support: (urn:cisco:params:xml:ns:yang:sfc-ioam-sb-pot?revision=2017-01-12)sfc-ioam-sb-pot
It is also expected that the devices are netconf mounted and available in the topology-netconf store.
When SFC Proof of Transit is installed, all netconf nodes in topology-netconf are processed and all capable nodes with accessible mountpoints are cached.
First step is to create the required RSP as is usually done using RSP creation steps in SFC main.
Once RSP name is available it is used to send a POST RPC to the controller similar to below:
POST - http://ODL-IP:8181/restconf/operations/sfc-ioam-nb-pot:enable-sfc-ioam-pot-rendered-path/
{
"input":
{
"sfc-ioam-pot-rsp-name": "sfc-path-3sf3sff",
"ioam-pot-enable":true,
"ioam-pot-num-profiles":2,
"ioam-pot-bit-mask":"bits32",
"refresh-period-time-units":"milliseconds",
"refresh-period-value":5000
}
}
The following can be used to disable the SFC Proof of Transit on an RSP which disables the PoT feature.
POST - http://ODL-IP:8181/restconf/operations/sfc-ioam-nb-pot:disable-sfc-ioam-pot-rendered-path/
{
"input":
{
"sfc-ioam-pot-rsp-name": "sfc-path-3sf3sff",
}
}
The SFC Proof of Transit (PoT) NETCONF renderer implements SFC Proof of Transit functionality on NETCONF-capable devices, that have advertised support for in-situ OAM (iOAM) support.
It listens for an update to an existing RSP with enable or disable proof of transit support and adds the auto-generated SFC PoT configuration parameters to all the SFC hop nodes. The last node in the SFC is configured as a verifier node to allow SFC PoT process to be completed.
Common acronyms are used as below:
The renderer module listens to RSP updates in SfcPotNetconfRSPListener
and triggers configuration generation in SfcPotNetconfIoam
class. Node
arrival and leaving are managed via SfcPotNetconfNodeManager
and
SfcPotNetconfNodeListener
. In addition there is a timer thread that
runs to generate configuration periodically to refresh the profiles in the
nodes that are part of the SFC.
To use the SFC Proof of Transit Karaf, the following Karaf features must be installed:
This tutorial is a simple example how to enable SFC PoT on NETCONF-capable devices.
The NETCONF-capable device will have to support sfc-ioam-sb-pot.yang file.
It is expected that a NETCONF-capable VPP device has Honeycomb (Hc2vpp) Java-based agent that helps to translate between NETCONF and VPP internal APIs.
More details are here: In-situ OAM: https://github.com/CiscoDevNet/iOAM
When the SFC PoT NETCONF renderer module is installed, all NETCONF nodes in topology-netconf are processed and all sfc-ioam-sb-pot yang capable nodes with accessible mountpoints are cached.
The first step is to create RSP for the SFC as per SFC guidelines above.
Enable SFC PoT is done on the RSP via RESTCONF to the ODL as outlined above.
Internally, the NETCONF renderer will act on the callback to a modified RSP that has PoT enabled.
In-situ OAM algorithms for auto-generation of SFC PoT parameters are generated automatically and sent to these nodes via NETCONF.
When the current SFC is deployed in a cloud environment, it is assumed that each switch connected to a Service Function is configured as a Service Function Forwarder and each Service Function is connected to its Service Function Forwarder depending on the Compute Node where the Virtual Machine is located.
As shown in the picture above, this solution allows the basic cloud use cases to be fulfilled, as for example, the ones required in OPNFV Brahmaputra, however, some advanced use cases like the transparent migration of VMs can not be implemented. The Logical Service Function Forwarder enables the following advanced use cases:

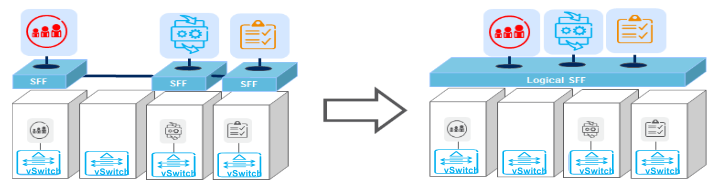

As shown in the picture below, the Logical Service Function Forwarder concept extends the current SFC northbound API to provide an abstraction of the underlying Data Center infrastructure. The Data Center underlaying network can be abstracted by a single SFF. This single SFF uses the logical port UUID as data plane locator to connect SFs globally and in a location-transparent manner. SFC makes use of Genius project to track the location of the SF’s logical ports.
The SFC internally distributes the necessary flow state over the relevant switches based on the internal Data Center topology and the deployment of SFs.
The Logical Service Function Forwarder concept extends the current SFC northbound API to provide an abstraction of the underlying Data Center infrastructure.
The Logical SFF simplifies the configuration of the current SFC data model by reducing the number of parameters to be be configured in every SFF, since the controller will discover those parameters by interacting with the services offered by the Genius project.
The following picture shows the Logical SFF data model. The model gets simplified as most of the configuration parameters of the current SFC data model are discovered in runtime. The complete YANG model can be found here logical SFF model.
The following are examples to configure the Logical SFF:
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/restconf/config/service-function:service-functions/
Service Functions JSON.
{
"service-functions": {
"service-function": [
{
"name": "firewall-1",
"type": "firewall",
"sf-data-plane-locator": [
{
"name": "firewall-dpl",
"interface-name": "eccb57ae-5a2e-467f-823e-45d7bb2a6a9a",
"transport": "service-locator:eth-nsh",
"service-function-forwarder": "sfflogical1"
}
]
},
{
"name": "dpi-1",
"type": "dpi",
"sf-data-plane-locator": [
{
"name": "dpi-dpl",
"interface-name": "df15ac52-e8ef-4e9a-8340-ae0738aba0c0",
"transport": "service-locator:eth-nsh",
"service-function-forwarder": "sfflogical1"
}
]
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-forwarder:service-function-forwarders/
Service Function Forwarders JSON.
{
"service-function-forwarders": {
"service-function-forwarder": [
{
"name": "sfflogical1"
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-chain:service-function-chains/
Service Function Chains JSON.
{
"service-function-chains": {
"service-function-chain": [
{
"name": "SFC1",
"sfc-service-function": [
{
"name": "dpi-abstract1",
"type": "dpi"
},
{
"name": "firewall-abstract1",
"type": "firewall"
}
]
},
{
"name": "SFC2",
"sfc-service-function": [
{
"name": "dpi-abstract1",
"type": "dpi"
}
]
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8182/restconf/config/service-function-chain:service-function-paths/
Service Function Paths JSON.
{
"service-function-paths": {
"service-function-path": [
{
"name": "SFP1",
"service-chain-name": "SFC1",
"starting-index": 255,
"symmetric": "true",
"context-metadata": "NSH1",
"transport-type": "service-locator:vxlan-gpe"
}
]
}
}
As a result of above configuration, OpenDaylight renders the needed flows in all involved SFFs. Those flows implement:
The following picture shows a topology and traffic flow (in green) which corresponds to the above configuration.
The Logical SFF functionality allows OpenDaylight to find out the SFFs holding the SFs involved in a path. In this example the SFFs affected are Node3 and Node4 thus the controller renders the flows containing NSH parameters just in those SFFs.
Here you have the new flows rendered in Node3 and Node4 which implement the NSH protocol. Every Rendered Service Path is represented by an NSP value. We provisioned a symmetric RSP so we get two NSPs: 8388613 and 5. Node3 holds the first SF of NSP 8388613 and the last SF of NSP 5. Node 4 holds the first SF of NSP 5 and the last SF of NSP 8388613. Both Node3 and Node4 will pop the NSH header when the received packet has gone through the last SF of its path.
Rendered flows Node 3
cookie=0x14, duration=59.264s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=5 actions=goto_table:86
cookie=0x14, duration=59.194s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=8388613 actions=goto_table:86
cookie=0x14, duration=59.257s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=254,nsp=5 actions=load:0x8e0a37cc9094->NXM_NX_ENCAP_ETH_SRC[],load:0x6ee006b4c51e->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0x14, duration=59.189s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=255,nsp=8388613 actions=load:0x8e0a37cc9094->NXM_NX_ENCAP_ETH_SRC[],load:0x6ee006b4c51e->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0xba5eba1100000203, duration=59.213s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=253,nsp=5 actions=pop_nsh,set_field:6e:e0:06:b4:c5:1e->eth_src,resubmit(,17)
cookie=0xba5eba1100000201, duration=59.213s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=5 actions=load:0x800->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000201, duration=59.188s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=255,nsp=8388613 actions=load:0x800->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000201, duration=59.182s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=8388613 actions=set_field:0->tun_id,output:6
Rendered Flows Node 4
cookie=0x14, duration=69.040s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=5 actions=goto_table:86
cookie=0x14, duration=69.008s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=8388613 actions=goto_table:86
cookie=0x14, duration=69.040s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=255,nsp=5 actions=load:0xbea93873f4fa->NXM_NX_ENCAP_ETH_SRC[],load:0x214845ea85d->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0x14, duration=69.005s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=254,nsp=8388613 actions=load:0xbea93873f4fa->NXM_NX_ENCAP_ETH_SRC[],load:0x214845ea85d->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0xba5eba1100000201, duration=69.029s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=255,nsp=5 actions=load:0x1100->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000201, duration=69.029s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=5 actions=set_field:0->tun_id,output:1
cookie=0xba5eba1100000201, duration=68.999s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=8388613 actions=load:0x1100->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000203, duration=68.996s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=253,nsp=8388613 actions=pop_nsh,set_field:02:14:84:5e:a8:5d->eth_src,resubmit(,17)
An interesting scenario to show the Logical SFF strength is the migration of a SF from a compute node to another. The OpenDaylight will learn the new topology by itself, then it will re-render the new flows to the new SFFs affected.
In our example, SF2 is moved from Node4 to Node2 then OpenDaylight removes NSH specific flows from Node4 and puts them in Node2. Check below flows showing this effect. Now Node3 keeps holding the first SF of NSP 8388613 and the last SF of NSP 5; but Node2 becomes the new holder of the first SF of NSP 5 and the last SF of NSP 8388613.
Rendered Flows Node 3 After Migration
cookie=0x14, duration=64.044s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=5 actions=goto_table:86
cookie=0x14, duration=63.947s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=8388613 actions=goto_table:86
cookie=0x14, duration=64.044s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=254,nsp=5 actions=load:0x8e0a37cc9094->NXM_NX_ENCAP_ETH_SRC[],load:0x6ee006b4c51e->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0x14, duration=63.947s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=255,nsp=8388613 actions=load:0x8e0a37cc9094->NXM_NX_ENCAP_ETH_SRC[],load:0x6ee006b4c51e->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0xba5eba1100000201, duration=64.034s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=5 actions=load:0x800->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000203, duration=64.034s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=253,nsp=5 actions=pop_nsh,set_field:6e:e0:06:b4:c5:1e->eth_src,resubmit(,17)
cookie=0xba5eba1100000201, duration=63.947s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=255,nsp=8388613 actions=load:0x800->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000201, duration=63.942s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=8388613 actions=set_field:0->tun_id,output:2
Rendered Flows Node 2 After Migration
cookie=0x14, duration=56.856s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=5 actions=goto_table:86
cookie=0x14, duration=56.755s, table=83, n_packets=0, n_bytes=0, priority=250,nsp=8388613 actions=goto_table:86
cookie=0x14, duration=56.847s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=255,nsp=5 actions=load:0xbea93873f4fa->NXM_NX_ENCAP_ETH_SRC[],load:0x214845ea85d->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0x14, duration=56.755s, table=86, n_packets=0, n_bytes=0, priority=550,nsi=254,nsp=8388613 actions=load:0xbea93873f4fa->NXM_NX_ENCAP_ETH_SRC[],load:0x214845ea85d->NXM_NX_ENCAP_ETH_DST[],goto_table:87
cookie=0xba5eba1100000201, duration=56.823s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=255,nsp=5 actions=load:0x1100->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000201, duration=56.823s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=5 actions=set_field:0->tun_id,output:4
cookie=0xba5eba1100000201, duration=56.755s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=254,nsp=8388613 actions=load:0x1100->NXM_NX_REG6[],resubmit(,220)
cookie=0xba5eba1100000203, duration=56.750s, table=87, n_packets=0, n_bytes=0, priority=650,nsi=253,nsp=8388613 actions=pop_nsh,set_field:02:14:84:5e:a8:5d->eth_src,resubmit(,17)
Rendered Flows Node 4 After Migration
-- No flows for NSH processing --
As previously mentioned, in the Logical SFF rationale, the Logical SFF feature relies on Genius to get the dataplane IDs of the OpenFlow switches, in order to properly steer the traffic through the chain.
Since one of the classifier’s objectives is to steer the packets into the SFC domain, the classifier has to be aware of where the first Service Function is located - if it migrates somewhere else, the classifier table has to be updated accordingly, thus enabling the seemless migration of Service Functions.
For this feature, mobility of the client VM is out of scope, and should be managed by its high-availability module, or VNF manager.
Keep in mind that classification always occur in the compute-node where the client VM (i.e. traffic origin) is running.
In order to leverage this functionality, the classifier has to be configured using a Logical SFF as an attachment-point, specifying within it the neutron port to classify.
The following examples show how to configure an ACL, and a classifier having a Logical SFF as an attachment-point:
Configure an ACL
The following ACL enables traffic intended for port 80 within the subnetwork 192.168.2.0/24, for RSP1 and RSP1-Reverse.
{
"access-lists": {
"acl": [
{
"acl-name": "ACL1",
"acl-type": "ietf-access-control-list:ipv4-acl",
"access-list-entries": {
"ace": [
{
"rule-name": "ACE1",
"actions": {
"service-function-acl:rendered-service-path": "RSP1"
},
"matches": {
"destination-ipv4-network": "192.168.2.0/24",
"source-ipv4-network": "192.168.2.0/24",
"protocol": "6",
"source-port-range": {
"lower-port": 0
},
"destination-port-range": {
"lower-port": 80
}
}
}
]
}
},
{
"acl-name": "ACL2",
"acl-type": "ietf-access-control-list:ipv4-acl",
"access-list-entries": {
"ace": [
{
"rule-name": "ACE2",
"actions": {
"service-function-acl:rendered-service-path": "RSP1-Reverse"
},
"matches": {
"destination-ipv4-network": "192.168.2.0/24",
"source-ipv4-network": "192.168.2.0/24",
"protocol": "6",
"source-port-range": {
"lower-port": 80
},
"destination-port-range": {
"lower-port": 0
}
}
}
]
}
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/ietf-access-control-list:access-lists/
Configure a classifier JSON
The following JSON provisions a classifier, having a Logical SFF as an attachment point. The value of the field ‘interface’ is where you indicate the neutron ports of the VMs you want to classify.
{
"service-function-classifiers": {
"service-function-classifier": [
{
"name": "Classifier1",
"scl-service-function-forwarder": [
{
"name": "sfflogical1",
"interface": "09a78ba3-78ba-40f5-a3ea-1ce708367f2b"
}
],
"acl": {
"name": "ACL1",
"type": "ietf-access-control-list:ipv4-acl"
}
}
]
}
}
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '${JSON}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-classifier:service-function-classifiers/
After binding SFC service with a particular interface by means of Genius, as explained in the Genius User Guide, the entry point in the SFC pipeline will be table 82 (SFC_TRANSPORT_CLASSIFIER_TABLE), and from that point, packet processing will be similar to the SFC OpenFlow pipeline, just with another set of specific tables for the SFC service.
This picture shows the SFC pipeline after service integration with Genius:
