Network Intent Composition (NIC) is an interface that allows clients to express a desired state in an implementation-neutral form that will be enforced via modification of available resources under the control of the OpenDaylight system.
This description is purposely abstract as an intent interface might encompass network services, virtual devices, storage, etc.
The intent interface is meant to be a controller-agnostic interface so that “intents” are portable across implementations, such as OpenDaylight and ONOS. Thus an intent specification should not contain implementation or technology specifics.
The intent specification will be implemented by decomposing the intent and augmenting it with implementation specifics that are driven by local implementation rules, policies, and/or settings.
The core of the NIC architecture is the intent model, which specifies the details of the desired state. It is the responsibility of the NIC implementation transforms this desired state to the resources under the control of OpenDaylight. The component that transforms the intent to the implementation is typically referred to as a renderer.
For the Boron release, multiple, simultaneous renderers will not be supported. Instead either the VTN or GBP renderer feature can be installed, but not both.
For the Boron release, the only actions supported are “ALLOW” and “BLOCK”. The “ALLOW” action indicates that traffic can flow between the source and destination end points, while “BLOCK” prevents that flow; although it is possible that an given implementation may augment the available actions with additional actions.
Besides transforming a desired state to an actual state it is the responsibility of a renderer to update the operational state tree for the NIC data model in OpenDaylight to reflect the intent which the renderer implemented.
For the Boron release there is no default implementation of a renderer, thus without an additional module installed the NIC will not function.
There is no additional administration of management capabilities related to the Network Intent Composition features.
A user can interact with the Network Intent Composition (NIC) either through the RESTful interface using standard RESTCONF operations and syntax or via the Karaf console CLI.
The Network Intent Composition (NIC) feature supports the following REST operations against the configuration data store.
The Network Intent Composition (NIC) feature supports the following REST operations against the operational data store.
This feature provides karaf console CLI command to manipulate the intent data model. The CLI essentailly invokes the equivalent data operations.
Creates a new intent in the configuration data tree
DESCRIPTION
intent:add
Adds an intent to the controller.
Examples: --actions [ALLOW] --from <subject> --to <subject>
--actions [BLOCK] --from <subject>
SYNTAX
intent:add [options]
OPTIONS
-a, --actions
Action to be performed.
-a / --actions BLOCK/ALLOW
(defaults to [BLOCK])
--help
Display this help message
-t, --to
Second Subject.
-t / --to <subject>
(defaults to any)
-f, --from
First subject.
-f / --from <subject>
(defaults to any)
Removes an existing intent from the system
DESCRIPTION
intent:remove
Removes an intent from the controller.
SYNTAX
intent:remove id
ARGUMENTS
id Intent Id
Lists all the intents in the system
DESCRIPTION
intent:list
Lists all intents in the controller.
SYNTAX
intent:list [options]
OPTIONS
-c, --config
List Configuration Data (optional).
-c / --config <ENTER>
--help
Display this help message
Displayes the details of a single intent
DESCRIPTION
intent:show
Shows detailed information about an intent.
SYNTAX
intent:show id
ARGUMENTS
id Intent Id
List/Add/Delete current state from/to the mapping service.
DESCRIPTION
intent:map
List/Add/Delete current state from/to the mapping service.
SYNTAX
intent:map [options]
Examples: --list, -l [ENTER], to retrieve all keys.
--add-key <key> [ENTER], to add a new key with empty contents.
--del-key <key> [ENTER], to remove a key with it's values."
--add-key <key> --value [<value 1>, <value 2>, ...] [ENTER],
to add a new key with some values (json format).
OPTIONS
--help
Display this help message
-l, --list
List values associated with a particular key.
-l / --filter <regular expression> [ENTER]
--add-key
Adds a new key to the mapping service.
--add-key <key name> [ENTER]
--value
Specifies which value should be added/delete from the mapping service.
--value "key=>value"... --value "key=>value" [ENTER]
(defaults to [])
--del-key
Deletes a key from the mapping service.
--del-key <key name> [ENTER]
Start mininet, and create three switches (s1, s2, and s3) and four hosts (h1, h2, h3, and h4) in it.
Replace <Controller IP> based on your environment.
$ sudo mn --mac --topo single,2 --controller=remote,ip=<Controller IP>
mininet> net
h1 h1-eth0:s2-eth1
h2 h2-eth0:s2-eth2
h3 h3-eth0:s3-eth1
h4 h4-eth0:s3-eth2
s1 lo: s1-eth1:s2-eth3 s1-eth2:s3-eth3
s2 lo: s2-eth1:h1-eth0 s2-eth2:h2-eth0 s2-eth3:s1-eth1
s3 lo: s3-eth1:h3-eth0 s3-eth2:h4-eth0 s3-eth3:s1-eth2
./bin/karaf
feature:install odl-nic-core-mdsal odl-nic-console odl-nic-listeners
!/usr/bin/python
from mininet.topo import Topo
class SimpleTopology( Topo ):
"Simple topology example."
def __init__( self ):
"Create custom topo."
Topo.__init__( self )
Switch1 = self.addSwitch( 's1' )
Switch2 = self.addSwitch( 's2' )
Switch3 = self.addSwitch( 's3' )
Switch4 = self.addSwitch( 's4' )
Host11 = self.addHost( 'h1' )
Host12 = self.addHost( 'h2' )
Host21 = self.addHost( 'h3' )
Host22 = self.addHost( 'h4' )
Host23 = self.addHost( 'h5' )
Service1 = self.addHost( 'srvc1' )
self.addLink( Host11, Switch1 )
self.addLink( Host12, Switch1 )
self.addLink( Host21, Switch2 )
self.addLink( Host22, Switch2 )
self.addLink( Host23, Switch2 )
self.addLink( Switch1, Switch2 )
self.addLink( Switch2, Switch4 )
self.addLink( Switch4, Switch3 )
self.addLink( Switch3, Switch1 )
self.addLink( Switch3, Service1 )
self.addLink( Switch4, Service1 )
topos = { 'simpletopology': ( lambda: SimpleTopology() ) }
Initialize topology
Add hosts and switches
Host used to represent the service
Add links
The section demonstrates allow or block packets of the traffic within a VTN Renderer, according to the specified flow conditions.
The table below lists the actions to be applied when a packet matches the condition:
| Action | Function |
|---|---|
| Allow | Permits the packet to be forwarded normally. |
| Block | Discards the packet preventing it from being forwarded. |
Please execute the following curl commands to test network intent using mininet:
To provision the network for the two hosts(h1 and h2) and demonstrates the action allow.
curl -v --user "admin":"admin" -H "Accept: application/json" -H "Content-type: application/json" -X PUT http://localhost:8181/restconf/config/intent:intents/intent/b9a13232-525e-4d8c-be21-cd65e3436034 -d '{ "intent:intent" : { "intent:id": "b9a13232-525e-4d8c-be21-cd65e3436034", "intent:actions" : [ { "order" : 2, "allow" : {} } ], "intent:subjects" : [ { "order":1 , "end-point-group" : {"name":"10.0.0.1"} }, { "order":2 , "end-point-group" : {"name":"10.0.0.2"}} ] } }'
To provision the network for the two hosts(h2 and h3) and demonstrates the action allow.
curl -v --user "admin":"admin" -H "Accept: application/json" -H "Content-type: application/json" -X PUT http://localhost:8181/restconf/config/intent:intents/intent/b9a13232-525e-4d8c-be21-cd65e3436035 -d '{ "intent:intent" : { "intent:id": "b9a13232-525e-4d8c-be21-cd65e3436035", "intent:actions" : [ { "order" : 2, "allow" : {} } ], "intent:subjects" : [ { "order":1 , "end-point-group" : {"name":"10.0.0.2"} }, { "order":2 , "end-point-group" : {"name":"10.0.0.3"}} ] } }'
As we have applied action type allow now ping should happen between hosts (h1 and h2) and (h2 and h3).
mininet> pingall
Ping: testing ping reachability
h1 -> h2 X X
h2 -> h1 h3 X
h3 -> X h2 X
h4 -> X X X
To provision block action that indicates traffic is not allowed between h1 and h2.
curl -v --user "admin":"admin" -H "Accept: application/json" -H "Content-type: application/json" -X PUT http://localhost:8181/restconf/config/intent:intents/intent/b9a13232-525e-4d8c-be21-cd65e3436034 -d '{ "intent:intent" : { "intent:id": "b9a13232-525e-4d8c-be21-cd65e3436034", "intent:actions" : [ { "order" : 2, "block" : {} } ], "intent:subjects" : [ { "order":1 , "end-point-group" : {"name":"10.0.0.1"} }, { "order":2 , "end-point-group" : {"name":"10.0.0.2"}} ] } }'
As we have applied action type block now ping should not happen between hosts (h1 and h2).
mininet> pingall
Ping: testing ping reachability
h1 -> X X X
h2 -> X h3 X
h3 -> X h2 X
h4 -> X X X
Note
Old actions and hosts are replaced by the new action and hosts.
Respective intent and the traffics will be deleted.
curl -v --user "admin":"admin" -H "Accept: application/json" -H "Content-type: application/json" -X DELETE http://localhost:8181/restconf/config/intent:intents/intent/b9a13232-525e-4d8c-be21-cd65e3436035
Deletion of intent and flow.
mininet> pingall
Ping: testing ping reachability
h1 -> X X X
h2 -> X X X
h3 -> X X X
h4 -> X X X
Note
Ping between two hosts can also be done using MAC Address
To provision the network for the two hosts(h1 MAC address and h2 MAC address).
curl -v --user "admin":"admin" -H "Accept: application/json" -H "Content-type: application/json" -X PUT http://localhost:8181/restconf/config/intent:intents/intent/b9a13232-525e-4d8c-be21-cd65e3436035 -d '{ "intent:intent" : { "intent:id": "b9a13232-525e-4d8c-be21-cd65e3436035", "intent:actions" : [ { "order" : 2, "allow" : {} } ], "intent:subjects" : [ { "order":1 , "end-point-group" : {"name":"6e:4f:f7:27:15:c9"} }, { "order":2 , "end-point-group" : {"name":"aa:7d:1f:4a:70:81"}} ] } }'

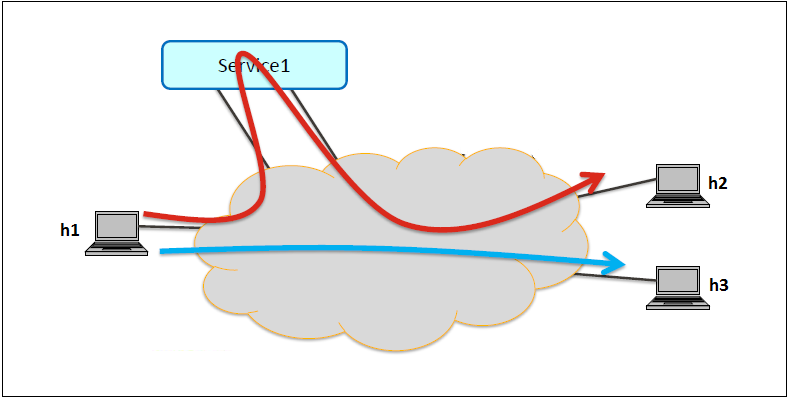

The section explains the redirect action supported in NIC. The redirect functionality supports forwarding (to redirect) the traffic to a service configured in SFC before forwarding it to the destination.
REDIRECT SERVICE
Following steps explain Redirect action function:
Replace <Controller IP> based on your environment.
sudo mn --controller=remote,ip=<Controller IP>--custom redirect_test.py --topo mytopo2
mininet> net
h1 h1-eth0:s1-eth1
h2 h2-eth0:s1-eth2
h3 h3-eth0:s2-eth1
h4 h4-eth0:s2-eth2
h5 h5-eth0:s2-eth3
srvc1 srvc1-eth0:s3-eth3 srvc1-eth1:s4-eth3
s1 lo: s1-eth1:h1-eth0 s1-eth2:h2-eth0 s1-eth3:s2-eth4 s1-eth4:s3-eth2
s2 lo: s2-eth1:h3-eth0 s2-eth2:h4-eth0 s2-eth3:h5-eth0 s2-eth4:s1-eth3 s2-eth5:s4-eth1
s3 lo: s3-eth1:s4-eth2 s3-eth2:s1-eth4 s3-eth3:srvc1-eth0
s4 lo: s4-eth1:s2-eth5 s4-eth2:s3-eth1 s4-eth3:srvc1-eth1
c0
CONFIGURATION THE NETWORK IN MININET
Please execute the following commands in the mininet console (where mininet script is executed).
srvc1 ip addr del 10.0.0.6/8 dev srvc1-eth0
srvc1 brctl addbr br0
srvc1 brctl addif br0 srvc1-eth0
srvc1 brctl addif br0 srvc1-eth1
srvc1 ifconfig br0 up
srvc1 tc qdisc add dev srvc1-eth1 root netem delay 200ms
The service (srvc1) is configured using SFC REST API. As part of the configuration the ingress and egress node connected the service is configured.
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '{
"service-functions": {
"service-function": [
{
"name": "srvc1",
"sf-data-plane-locator": [
{
"name": "Egress",
"service-function-forwarder": "openflow:4"
},
{
"name": "Ingress",
"service-function-forwarder": "openflow:3"
}
],
"nsh-aware": false,
"type": "delay"
}
]
}
}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function:service-functions/
SFF RESTCONF Request
Configuring switch and port information for the service functions.
curl -i -H "Content-Type: application/json" -H "Cache-Control: no-cache" --data '{
"service-function-forwarders": {
"service-function-forwarder": [
{
"name": "openflow:3",
"service-node": "OVSDB2",
"sff-data-plane-locator": [
{
"name": "Ingress",
"data-plane-locator":
{
"vlan-id": 100,
"mac": "11:11:11:11:11:11",
"transport": "service-locator:mac"
},
"service-function-forwarder-ofs:ofs-port":
{
"port-id" : "3"
}
}
],
"service-function-dictionary": [
{
"name": "srvc1",
"sff-sf-data-plane-locator":
{
"sf-dpl-name" : "openflow:3",
"sff-dpl-name" : "Ingress"
}
}
]
},
{
"name": "openflow:4",
"service-node": "OVSDB3",
"sff-data-plane-locator": [
{
"name": "Egress",
"data-plane-locator":
{
"vlan-id": 200,
"mac": "44:44:44:44:44:44",
"transport": "service-locator:mac"
},
"service-function-forwarder-ofs:ofs-port":
{
"port-id" : "3"
}
}
],
"service-function-dictionary": [
{
"name": "srvc1",
"sff-sf-data-plane-locator":
{
"sf-dpl-name" : "openflow:4",
"sff-dpl-name" : "Egress"
}
}
]
}
]
}
}' -X PUT --user admin:admin http://localhost:8181/restconf/config/service-function-forwarder:service-function-forwarders/
To provision the network for the two hosts (h1 and h5).
Demonstrates the redirect action with service name srvc1.
intent:add -f <SOURCE_MAC> -t <DESTINATION_MAC> -a REDIRECT -s <SERVICE_NAME>
Example:
intent:add -f 32:bc:ec:65:a7:d1 -t c2:80:1f:77:41:ed -a REDIRECT -s srvc1
mininet> h1 ping h5
PING 10.0.0.5 (10.0.0.5) 56(84) bytes of data.
64 bytes from 10.0.0.5: icmp_seq=2 ttl=64 time=201 ms
64 bytes from 10.0.0.5: icmp_seq=3 ttl=64 time=200 ms
64 bytes from 10.0.0.5: icmp_seq=4 ttl=64 time=200 ms
The redirect functionality can be verified by the time taken by the ping operation (200ms). The service srvc1 configured using SFC introduces 200ms delay. As the traffic from h1 to h5 is redirected via the srvc1, the time taken by the traffic from h1 to h5 will take about 200ms.
mininet> dpctl dump-flows
*** s1 ------------------------------------------------------------------------
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=9.406s, table=0, n_packets=6, n_bytes=588, idle_age=3, priority=9000,in_port=1,dl_src=32:bc:ec:65:a7:d1, dl_dst=c2:80:1f:77:41:ed actions=output:4
cookie=0x0, duration=9.475s, table=0, n_packets=6, n_bytes=588, idle_age=3, priority=9000,in_port=3,dl_src=c2:80:1f:77:41:ed, dl_dst=32:bc:ec:65:a7:d1 actions=output:1
cookie=0x1, duration=362.315s, table=0, n_packets=144, n_bytes=12240, idle_age=4, priority=9500,dl_type=0x88cc actions=CONTROLLER:65535
cookie=0x1, duration=362.324s, table=0, n_packets=4, n_bytes=168, idle_age=3, priority=10000,arp actions=CONTROLLER:65535,NORMAL
*** s2 ------------------------------------------------------------------------
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=9.503s, table=0, n_packets=6, n_bytes=588, idle_age=3, priority=9000,in_port=3,dl_src=c2:80:1f:77:41:ed, dl_dst=32:bc:ec:65:a7:d1 actions=output:4
cookie=0x0, duration=9.437s, table=0, n_packets=6, n_bytes=588, idle_age=3, priority=9000,in_port=5,dl_src=32:bc:ec:65:a7:d1, dl_dst=c2:80:1f:77:41:ed actions=output:3
cookie=0x3, duration=362.317s, table=0, n_packets=144, n_bytes=12240, idle_age=4, priority=9500,dl_type=0x88cc actions=CONTROLLER:65535
cookie=0x3, duration=362.32s, table=0, n_packets=4, n_bytes=168, idle_age=3, priority=10000,arp actions=CONTROLLER:65535,NORMAL
*** s3 ------------------------------------------------------------------------
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=9.41s, table=0, n_packets=6, n_bytes=588, idle_age=3, priority=9000,in_port=2,dl_src=32:bc:ec:65:a7:d1, dl_dst=c2:80:1f:77:41:ed actions=output:3
*** s4 ------------------------------------------------------------------------
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=9.486s, table=0, n_packets=6, n_bytes=588, idle_age=3, priority=9000,in_port=3,dl_src=32:bc:ec:65:a7:d1, dl_dst=c2:80:1f:77:41:ed actions=output:1
This section explains how to provision QoS attribute mapping constraint using NIC OF-Renderer.
The QoS attribute mapping currently supports DiffServ. It uses a 6-bit differentiated services code point (DSCP) in the 8-bit differentiated services field (DS field) in the IP header.
| Action | Function |
|---|---|
| Allow | Permits the packet to be forwarded normally, but allows for packet header fields, e.g., DSCP, to be modified. |
The following steps explain QoS Attribute Mapping function:
Please execute the following CLI commands to test network intent using mininet:
intent:qosConfig -p <qos_profile_name> -d <valid_dscp_value>
Example:
intent:qosConfig -p High_Quality -d 46
Note
Valid DSCP value ranges from 0-63.
Demonstrates the ALLOW action with constraint QoS and QoS profile name.
intent:add -a ALLOW -t <DESTINATION_MAC> -f <SOURCE_MAC> -q QOS -p <qos_profile_name>
Example:
intent:add -a ALLOW -t 00:00:00:00:00:03 -f 00:00:00:00:00:01 -q QOS -p High_Quality
intent:add -a ALLOW -t 00:00:00:00:00:01 -f 00:00:00:00:00:03 -q QOS -p High_Quality
mininet> h1 ping h3
PING 10.0.0.3 (10.0.0.3) 56(84) bytes of data.
64 bytes from 10.0.0.3: icmp_req=1 ttl=64 time=0.984 ms
64 bytes from 10.0.0.3: icmp_req=2 ttl=64 time=0.110 ms
64 bytes from 10.0.0.3: icmp_req=3 ttl=64 time=0.098 ms
mininet> dpctl dump-flows
*** s1 ------------------------------------------------------------------------
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=21.873s, table=0, n_packets=3, n_bytes=294, idle_age=21, priority=9000,dl_src=00:00:00:00:00:03,dl_dst=00:00:00:00:00:01 actions=NORMAL,mod_nw_tos:184
cookie=0x0, duration=41.252s, table=0, n_packets=3, n_bytes=294, idle_age=41, priority=9000,dl_src=00:00:00:00:00:01,dl_dst=00:00:00:00:00:03 actions=NORMAL,mod_nw_tos:184
This section demonstrates log action in OF Renderer. This demonstration aims at enabling communication between two hosts and logging the flow statistics details of the particular traffic.
Please execute the following CLI commands to test network intent using mininet:
intent:add –a ALLOW -t <DESTINATION_MAC> -f <SOURCE_MAC>
Example:
intent:add -a ALLOW -t 00:00:00:00:00:03 -f 00:00:00:00:00:01
intent:add -a ALLOW -t 00:00:00:00:00:01 -f 00:00:00:00:00:03
intent:add –a LOG -t <DESTINATION_MAC> -f <SOURCE_MAC>
Example:
intent:add -a LOG -t 00:00:00:00:00:03 -f 00:00:00:00:00:01
mininet> h1 ping h3
PING 10.0.0.3 (10.0.0.3) 56(84) bytes of data.
64 bytes from 10.0.0.3: icmp_req=1 ttl=64 time=0.984 ms
64 bytes from 10.0.0.3: icmp_req=2 ttl=64 time=0.110 ms
64 bytes from 10.0.0.3: icmp_req=3 ttl=64 time=0.098 ms
2015-12-15 22:56:20,256 | INFO | lt-dispatcher-23 | IntentFlowManager | 264 - org.opendaylight.nic.of-renderer - 1.1.0.SNAPSHOT | Creating block intent for endpoints: source00:00:00:00:00:01 destination 00:00:00:00:00:03
2015-12-15 22:56:20,252 | INFO | lt-dispatcher-29 | FlowStatisticsListener | 264 - org.opendaylight.nic.of-renderer - 1.1.0.SNAPSHOT | Flow Statistics gathering for Byte Count:Counter64 [_value=238]
2015-12-15 22:56:20,252 | INFO | lt-dispatcher-29 | FlowStatisticsListener | 264 - org.opendaylight.nic.of-renderer - 1.1.0.SNAPSHOT | Flow Statistics gathering for Packet Count:Counter64 [_value=3]
2015-12-15 22:56:20,252 | INFO | lt-dispatcher-29 | FlowStatisticsListener | 264 - org.opendaylight.nic.of-renderer - 1.1.0.SNAPSHOT | Flow Statistics gathering for Duration in Nano second:Counter32 [_value=678000000]
2015-12-15 22:56:20,252 | INFO | lt-dispatcher-29 | FlowStatisticsListener | 264 - org.opendaylight.nic.of-renderer - 1.1.0.SNAPSHOT | Flow Statistics gathering for Duration in Second:Counter32 [_value=49]
