BGP User Guide

This guide contains information on how to use OpenDaylight Border Gateway Protocol (BGP) plugin. The user should learn about BGP basic concepts, supported capabilities, configuration and usage.

Overview

This section provides high-level overview of the Border Gateway Protocol, OpenDaylight implementation and BGP usage in SDN era.

Border Gateway Protocol

The Border Gateway Protocol (BGP) is an inter-Autonomous System (AS) routing protocol. The primary role of the BGP is an exchange of routes among other BGP systems. The route is an unit of information which pairs destination (IP address prefix) with attributes to the path with the destination. One of the most interesting attributes is a list of ASes that the route traversed - essential when avoiding loop routing. Advertised routes are stored in the Routing Information Bases (RIBs). Routes are later used to forward packets, stored in Routing Table for this purpose. The main advantage of the BGP over other routing protocols is its scalability, thus it has become the standardized Internet routing protocol (Internet is a set of ASes).

BGP in SDN

However BGP evolved long time before SDN was born, it plays a significant role in many SDN use-cases. Also, continuous evolution of the protocol brings extensions that are very well suited for SDN. Nowadays, BGP can carry various types of routing information - L3VPN, L2VPN, IP multicast, linkstate, etc. Here is a brief list of software-based/legacy-network technologies where BGP-based SDN solution get into an action:

  • SDN WAN - WAN orchestration and optimization
  • SDN router - Turns switch into an Internet router
  • Virtual Route Reflector - High-performance server-based BGP Route Reflector
  • SDX - A Software Defined Internet Exchange controller
  • Large-Scale Data Centers - BGP Data Center Routing, MPLS/SR in DCs, DC interconnection
  • DDoS mitigation - Traffic Filtering distribution with BGP

OpenDaylight BGP plugin

The OpenDaylight controller provides an implementation of BGP (RFC 4271) as a south-bound protocol plugin. The implementation renders all basic BGP speaker capabilities:

  • inter/intra-AS peering
  • routes advertising
  • routes originating
  • routes storage

The plugin’s north-bound API (REST/Java) provides to user:

  • fully dynamic runtime standardized BGP configuration
  • read-only access to all RIBs
  • read-write programmable RIBs
  • read-only reachability/linkstate topology view

Note

The BGP plugin is NOT a virtual router - does not construct Routing Tables, nor forward traffic.

List of supported capabilities

In addition to the base protocol implementation, the plugin provides many extensions to BGP, all based on IETF standards.

Running BGP

This section explains how to install BGP plugin.

  1. Install BGP feature - odl-bgpcep-bgp. Also, for sake of this sample, it is required to install RESTCONF. In the Karaf console, type command:

    feature:install odl-restconf odl-bgpcep-bgp

  2. The BGP plugin contains a default configuration, which is applied after the feature starts up. One instance of BGP plugin is created (named example-bgp-rib), and its presence can be verified via REST:

    URL: /restconf/operational/bgp-rib:bgp-rib

    Method: GET

    Response Body:

    <bgp-rib xmlns="urn:opendaylight:params:xml:ns:yang:bgp-rib">
   <rib>
       <id>example-bgp-rib</id>
       <loc-rib>
       ....
       </loc-rib>
   </rib>
</bgp-rib>

Basic Configuration & Concepts

The following section shows how to configure BGP basics, how to verify functionality and presents essential components of the plugin. Next samples demonstrate the plugin’s runtime configuration capability. It shows the way to configure the plugin via REST, using standardized OpenConfig BGP APIs.

BGP RIB API

This tree illustrates the BGP RIBs organization in datastore.

bgp-rib
  +--ro rib* [id]
     +--ro id         rib-id
     +--ro peer* [peer-id]
     |  +--ro peer-id                  peer-id
     |  +--ro peer-role                peer-role
     |  +--ro simple-routing-policy?   simple-routing-policy
     |  +--ro supported-tables* [afi safi]
     |  |  +--ro afi             identityref
     |  |  +--ro safi            identityref
     |  |  +--ro send-receive?   send-receive
     |  +--ro adj-rib-in
     |  |  +--ro tables* [afi safi]
     |  |     +--ro afi           identityref
     |  |     +--ro safi          identityref
     |  |     +--ro attributes
     |  |     |  +--ro uptodate?   boolean
     |  |     +--ro (routes)?
     |  +--ro effective-rib-in
     |  |  +--ro tables* [afi safi]
     |  |     +--ro afi           identityref
     |  |     +--ro safi          identityref
     |  |     +--ro attributes
     |  |     |  +--ro uptodate?   boolean
     |  |     +--ro (routes)?
     |  +--ro adj-rib-out
     |     +--ro tables* [afi safi]
     |        +--ro afi           identityref
     |        +--ro safi          identityref
     |        +--ro attributes
     |        |  +--ro uptodate?   boolean
     |        +--ro (routes)?
     +--ro loc-rib
        +--ro tables* [afi safi]
           +--ro afi           identityref
           +--ro safi          identityref
           +--ro attributes
           |  +--ro uptodate?   boolean
           +--ro (routes)?

Protocol Configuration

As a first step, a new protocol instance needs to be configured. It is a very basic configuration conforming with RFC4271.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
        </global>
    </bgp>
</protocol>

@line 2: The unique protocol instance identifier.

@line 7: BGP Identifier of the speaker.

@line 8: Local autonomous system number of the speaker. Note that, OpenDaylight BGP implementation supports four-octet AS numbers only.

The new instance presence can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
<rib xmlns="urn:opendaylight:params:xml:ns:yang:bgp-rib">
    <id>bgp-example</id>
    <loc-rib>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet"></ipv4-routes>
            <attributes>
                <uptodate>true</uptodate>
            </attributes>
        </tables>
    </loc-rib>
</rib>

@line 3: Loc-RIB - Per-protocol instance RIB, which contains the routes that have been selected by local BGP speaker’s decision process.

@line 4: The BGP-4 supports carrying IPv4 prefixes, such routes are stored in ipv4-address-family/unicast-subsequent-address-family table.

BGP Server

BGP uses TCP as its transport protocol, by default listens on port 179. OpenDaylight BGP plugin is configured to listen on port 1790, due to privileged ports restriction for non-root users. One of the workarounds is to use port redirection. In case other port is desired to be used instead, we can reconfigure it.

Here is a sample of bgp port listening re-configuration:

URL: /restconf/config/odl-bgp-peer-acceptor-config:bgp-peer-acceptor-config/default

Method: PUT

Content-Type: application/xml

Request Body:

1
2
3
4
5
<bgp-peer-acceptor-config xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-peer-acceptor-config">
    <config-name>default</config-name>
    <binding-address>0.0.0.0</binding-address>
    <binding-port>1791</binding-port>
</bgp-peer-acceptor-config>

@line 3: Binding address: By default is 0.0.0.0, so it is not a mandatory field.

@line 4: Binding Port: Port were BGP Server will listen.

BGP Peering

To exchange routing information between two BGP systems (peers), it is required to configure a peering on both BGP speakers first. This mean that each BGP speaker has a white list of neighbors, representing remote peers, with which the peering is allowed. The TCP connection is established between two peers and they exchange messages to open and confirm the connection parameters followed by routes exchange.

Here is a sample basic neighbor configuration:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <timers>
        <config>
            <hold-time>90</hold-time>
            <connect-retry>10</connect-retry>
        </config>
    </timers>
    <transport>
        <config>
            <remote-port>179</remote-port>
            <passive-mode>false</passive-mode>
        </config>
    </transport>
    <config>
        <peer-type>INTERNAL</peer-type>
    </config>
</neighbor>

@line 2: IP address of the remote BGP peer. Also serves as an unique identifier of a neighbor in a list of neighbors.

@line 5: Proposed number of seconds for value of the Hold Timer. Default value is 90.

@line 6: Time interval in seconds between attempts to establish session with the peer. Effective in active mode only. Default value is 30.

@line 11: Remote port number to which the local BGP is connecting. Effective in active mode only. Default value 179.

@line 12: Wait for peers to issue requests to open a BGP session, rather than initiating sessions from the local router. Default value is false.

@line 16: Explicitly designate the peer as internal or external. Default value is INTERNAL.

Once the remote peer is connected and it advertised routes to local BGP system, routes are stored in peer’s RIBs. The RIBs can be checked via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/peer/bgp:%2F%2F192.0.2.1

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
<peer xmlns="urn:opendaylight:params:xml:ns:yang:bgp-rib">
    <peer-id>bgp://192.0.2.1</peer-id>
    <supported-tables>
        <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
        <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
    </supported-tables>
    <peer-role>ibgp</peer-role>
    <adj-rib-in>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
                <ipv4-route>
                    <path-id>0</path-id>
                    <prefix>10.0.0.10/32</prefix>
                    <attributes>
                        <as-path></as-path>
                        <origin>
                            <value>igp</value>
                        </origin>
                        <local-pref>
                            <pref>100</pref>
                        </local-pref>
                        <ipv4-next-hop>
                            <global>10.10.1.1</global>
                        </ipv4-next-hop>
                    </attributes>
                </ipv4-route>
            </ipv4-routes>
            <attributes>
                <uptodate>true</uptodate>
            </attributes>
        </tables>
    </adj-rib-in>
    <effective-rib-in>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
                <ipv4-route>
                    <path-id>0</path-id>
                    <prefix>10.0.0.10/32</prefix>
                    <attributes>
                        <as-path></as-path>
                        <origin>
                            <value>igp</value>
                        </origin>
                        <local-pref>
                            <pref>100</pref>
                        </local-pref>
                        <ipv4-next-hop>
                            <global>10.10.1.1</global>
                        </ipv4-next-hop>
                    </attributes>
                </ipv4-route>
            </ipv4-routes>
            <attributes>
                <uptodate>true</uptodate>
            </attributes>
        </tables>
    </effective-rib-in>
    <adj-rib-out>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet"></ipv4-routes>
            <attributes></attributes>
        </tables>
    </adj-rib-out>
</peer>

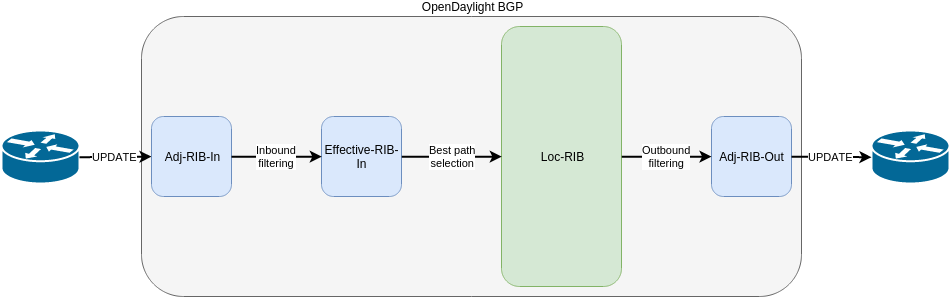

@line 8: Adj-RIB-In - Per-peer RIB, which contains unprocessed routes that has been advertised to local BGP speaker by the remote peer.

@line 13: Here is the reported route with destination 10.0.0.10/32 in Adj-RIB-In.

@line 35: Effective-RIB-In - Per-peer RIB, which contains processed routes as a result of applying inbound policy to Adj-RIB-In routes.

@line 40: Here is the reported route with destination 10.0.0.10/32, same as in Adj-RIB-In, as it was not touched by import policy.

@line 62: Adj-RIB-Out - Per-peer RIB, which contains routes for advertisement to the peer by means of the local speaker’s UPDATE message.

@line 66: The peer’s Adj-RIB-Out is empty as there are no routes to be advertise from local BGP speaker.

Also the same route should appeared in Loc-RIB now:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/ipv4-routes

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
<ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <ipv4-route>
        <path-id>0</path-id>
        <prefix>10.0.0.10/32</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>10.10.1.1</global>
            </ipv4-next-hop>
        </attributes>
    </ipv4-route>
</ipv4-routes>

@line 4: Destination - IPv4 Prefix Address.

@line 6: AS_PATH - mandatory attribute, contains a list of the autonomous system numbers through that routing information has traversed.

@line 8: ORIGIN - mandatory attribute, indicates an origin of the route - ibgp, egp, incomplete.

@line 11: LOCAL_PREF - indicates a degree of preference for external routes, higher value is preferred.

@line 14: NEXT_HOP - mandatory attribute, defines IP address of the router that should be used as the next hop to the destination.

There are much more attributes that may be carried along with the destination:

BGP-4 Path Attributes

  • MULTI_EXIT_DISC (MED)

    Optional attribute, to be used to discriminate among multiple exit/entry points on external links, lower number is preferred.

    <multi-exit-disc>
 <med>0</med>
</multi-exit-disc>
  • ATOMIC_AGGREGATE

    Indicates whether AS_SET was excluded from AS_PATH due to routes aggregation.

    <atomic-aggregate/>
  • AGGREGATOR

    Optional attribute, contains AS number and IP address of a BGP speaker which performed routes aggregation.

    <aggregator>
    <as-number>65000</as-number>
    <network-address>192.0.2.2</network-address>
</aggregator>
  • Unrecognised

    Optional attribute, used to store optional attributes, unrecognized by a local BGP speaker.

    <unrecognized-attributes>
    <partial>true</partial>
    <transitive>true</transitive>
    <type>101</type>
    <value>0101010101010101</value>
</unrecognized-attributes>

Route Reflector Attributes

  • ORIGINATOR_ID

    Optional attribute, carries BGP Identifier of the originator of the route.

    <originator-id>
    <originator>41.41.41.41</originator>
</originator-id>
  • CLUSTER_LIST

    Optional attribute, contains a list of CLUSTER_ID values representing the path that the route has traversed.

    <cluster-id>
    <cluster>40.40.40.40</cluster>
</cluster-id>
  • Communities

    Optional attribute, may be used for policy routing.

    <communities>
    <as-number>65000</as-number>
    <semantics>30740</semantics>
</communities>

Extended Communities

  • Route Target

    Identifies one or more routers that may receive a route.

    <extended-communities>
    <transitive>true</transitive>
    <route-target-ipv4>
        <global-administrator>192.0.2.2</global-administrator>
        <local-administrator>123</local-administrator>
    </route-target-ipv4>
</extended-communities>
<extended-communities>
    <transitive>true</transitive>
    <as-4-route-target-extended-community>
            <as-4-specific-common>
            <as-number>65000</as-number>
            <local-administrator>123</local-administrator>
        </as-4-specific-common>
    </as-4-route-target-extended-community>
</extended-communities>
  • Route Origin

    Identifies one or more routers that injected a route.

    <extended-communities>
    <transitive>true</transitive>
    <route-origin-ipv4>
        <global-administrator>192.0.2.2</global-administrator>
        <local-administrator>123</local-administrator>
    </route-origin-ipv4>
</extended-communities>
<extended-communities>
    <transitive>true</transitive>
    <as-4-route-origin-extended-community>
        <as-4-specific-common>
            <as-number>65000</as-number>
            <local-administrator>123</local-administrator>
        </as-4-origin-common>
    </as-4-route-target-extended-community>
</extended-communities>
  • Link Bandwidth

    Carries the cost to reach external neighbor.

    <extended-communities>
    <transitive>true</transitive>
    <link-bandwidth-extended-community>
        <bandwidth>BH9CQAA=</bandwidth>
    </link-bandwidth-extended-community>
</extended-communities>
  • AIGP

    Optional attribute, carries accumulated IGP metric.

    <aigp>
    <aigp-tlv>
        <metric>120</metric>
    </aigp-tlv>
</aigp>

Note

When the remote peer disconnects, it disappear from operational state of local speaker instance and advertised routes are removed too.

External peering configuration

An example above provided configuration for internal peering only. Following configuration sample is intended for external peering:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
6
7
<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.3</neighbor-address>
    <config>
        <peer-type>EXTERNAL</peer-type>
        <peer-as>64999</peer-as>
    </config>
</neighbor>

@line 5: AS number of the remote peer.

Route reflector configuration

The local BGP speaker can be configured with a specific cluster ID. Following example adds the cluster ID to the existing speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/global/config

Method: PUT

Content-Type: application/xml

Request Body:

1
2
3
4
5
<config>
    <router-id>192.0.2.2</router-id>
    <as>65000</as>
    <route-reflector-cluster-id>192.0.2.1</route-reflector-cluster-id>
</config>
@line 4: Route-reflector cluster id to use when local router is configured as a route reflector.
The router-id is used as a default value.

Following configuration sample is intended for route reflector client peering:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.4</neighbor-address>
    <config>
        <peer-type>INTERNAL</peer-type>
    </config>
    <route-reflector>
        <config>
            <route-reflector-client>true</route-reflector-client>
        </config>
    </route-reflector>
</neighbor>

@line 8: Configure the neighbor as a route reflector client. Default value is false.

MD5 authentication configuration

The OpenDaylight BGP implementation is supporting TCP MD5 for authentication. Sample configuration below shows how to set authentication password for a peer:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
6
<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.5</neighbor-address>
    <config>
        <auth-password>topsecret</auth-password>
    </config>
</neighbor>

@line 4: Configures an MD5 authentication password for use with neighboring devices.

Simple Routing Policy configuration

The OpenDaylight BGP implementation is supporting Simple Routing Policy. Sample configuration below shows how to set Simple Routing Policy for a peer:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
6
<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.7</neighbor-address>
    <config>
        <simple-routing-policy>learn-none</simple-routing-policy>
    </config>
</neighbor>

@line 4: Simple Routing Policy:

  • learn-none - routes advertised by the peer are not propagated to Effective-RIB-In and Loc-RIB
  • announce-none - routes from local Loc-RIB are not advertised to the peer

Note

Existing neighbor configuration can be reconfigured (change configuration parameters) anytime. As a result, established connection is dropped, peer instance is recreated with a new configuration settings and connection re-established.

Note

The BGP configuration is persisted on OpendDaylight shutdown and restored after the re-start.

BGP Application Peer and programmable RIB

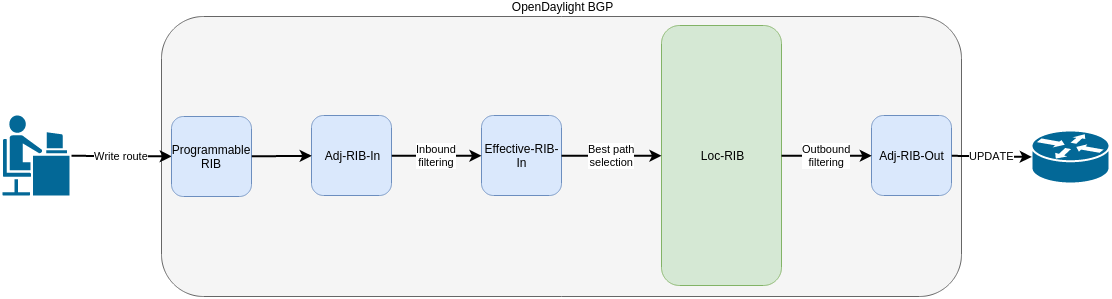

The OpenDaylight BGP implementation also supports routes injection via Application Peer. Such peer has its own programmable RIB, which can be modified by user. This concept allows user to originate new routes and advertise them to all connected peers.

Application Peer configuration

Following configuration sample show a way to configure the Application Peer:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
6
<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>10.25.1.9</neighbor-address>
    <config>
        <peer-group>application-peers</peer-group>
    </config>
</neighbor>

@line 2: IP address is uniquely identifying Application Peer and its programmable RIB. Address is also used in local BGP speaker decision process.

@line 4: Indicates that peer is associated with application-peers group. It serves to distinguish Application Peer’s from regular neighbors.

The Application Peer presence can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/peer/bgp:%2F%2F10.25.1.9

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
<peer xmlns="urn:opendaylight:params:xml:ns:yang:bgp-rib">
    <peer-id>bgp://10.25.1.9</peer-id>
    <peer-role>internal</peer-role>
    <adj-rib-in>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet"></ipv4-routes>
            <attributes>
                <uptodate>false</uptodate>
            </attributes>
        </tables>
    </adj-rib-in>
    <effective-rib-in>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet"></ipv4-routes>
            <attributes></attributes>
        </tables>
    </effective-rib-in>
</peer>

@line 3: Peer role for Application Peer is internal.

@line 8: Adj-RIB-In is empty, as no routes were originated yet.

Note

There is no Adj-RIB-Out for Application Peer.

Programmable RIB

Next example shows how to inject a route into the programmable RIB.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes

Method: POST

Content-Type: application/xml

Request Body:

<ipv4-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <path-id>0</path-id>
    <prefix>10.0.0.11/32</prefix>
    <attributes>
        <as-path></as-path>
        <origin>
            <value>igp</value>
        </origin>
        <local-pref>
            <pref>100</pref>
        </local-pref>
        <ipv4-next-hop>
            <global>10.11.1.1</global>
        </ipv4-next-hop>
    </attributes>
</ipv4-route>

Now the injected route appears in Application Peer’s RIBs and in local speaker’s Loc-RIB:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/peer/bgp:%2F%2F10.25.1.9

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
<peer xmlns="urn:opendaylight:params:xml:ns:yang:bgp-rib">
    <peer-id>bgp://10.25.1.9</peer-id>
    <peer-role>internal</peer-role>
    <adj-rib-in>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
                <ipv4-route>
                    <path-id>0</path-id>
                    <prefix>10.0.0.11/32</prefix>
                    <attributes>
                        <as-path></as-path>
                        <origin>
                            <value>igp</value>
                        </origin>
                        <local-pref>
                            <pref>100</pref>
                        </local-pref>
                        <ipv4-next-hop>
                            <global>10.11.1.1</global>
                        </ipv4-next-hop>
                    </attributes>
                </ipv4-route>
            </ipv4-routes>
            <attributes>
                <uptodate>false</uptodate>
            </attributes>
        </tables>
    </adj-rib-in>
    <effective-rib-in>
        <tables>
            <afi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:ipv4-address-family</afi>
            <safi xmlns:x="urn:opendaylight:params:xml:ns:yang:bgp-types">x:unicast-subsequent-address-family</safi>
            <ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
                <ipv4-route>
                    <path-id>0</path-id>
                    <prefix>10.0.0.11/32</prefix>
                    <attributes>
                        <as-path></as-path>
                        <origin>
                            <value>igp</value>
                        </origin>
                        <local-pref>
                            <pref>100</pref>
                        </local-pref>
                        <ipv4-next-hop>
                            <global>10.11.1.1</global>
                        </ipv4-next-hop>
                    </attributes>
                </ipv4-route>
            </ipv4-routes>
            <attributes></attributes>
        </tables>
    </effective-rib-in>
</peer>

@line 9: Injected route is present in Application Peer’s Adj-RIB-In and Effective-RIB-In.

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/ipv4-routes

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
<ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <ipv4-route>
        <path-id>0</path-id>
        <prefix>10.0.0.10/32</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>10.11.1.1</global>
            </ipv4-next-hop>
        </attributes>
    </ipv4-route>
    <ipv4-route>
        <path-id>0</path-id>
        <prefix>10.0.0.10/32</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>10.10.1.1</global>
            </ipv4-next-hop>
        </attributes>
    </ipv4-route>
</ipv4-routes>

@line 2: The injected route is now present in Loc-RIB along with a route (destination 10.0.0.10/32) advertised by remote peer.

This route is also advertised to the remote peer (192.0.2.1), hence route appears in its Adj-RIB-Out:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/peer/bgp:%2F%2F192.0.2.1/adj-rib-out/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes

Method: GET

Response Body:

<ipv4-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <path-id>0</path-id>
    <prefix>10.0.0.11/32</prefix>
    <attributes>
        <as-path></as-path>
        <origin>
            <value>igp</value>
        </origin>
        <local-pref>
            <pref>100</pref>
        </local-pref>
        <ipv4-next-hop>
            <global>10.11.1.1</global>
        </ipv4-next-hop>
    </attributes>
</ipv4-route>

The injected route can be modified (i.e. different path attribute):

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes/ipv4-route/10.0.0.11%2F32/0

Method: PUT

Content-Type: application/xml

Request Body:

<ipv4-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <path-id>0</path-id>
    <prefix>10.0.0.11/32</prefix>
    <attributes>
        <as-path></as-path>
        <origin>
            <value>igp</value>
        </origin>
        <local-pref>
            <pref>50</pref>
        </local-pref>
        <ipv4-next-hop>
            <global>10.11.1.2</global>
        </ipv4-next-hop>
    </attributes>
</ipv4-route>

The route can be removed from programmable RIB in a following way:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes/ipv4-route/10.0.0.11%2F32/0

Method: DELETE

Also it is possible to remove all routes from a particular table at once:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes/

Method: DELETE

Consequently, route disappears from programmable RIB, Application Peer’s RIBs, Loc-RIB and peer’s Adj-RIB-Out (UPDATE message with prefix withdrawal is send).

Note

Routes stored in programmable RIB are persisted on OpendDaylight shutdown and restored after the re-start.

BGP Protocol Configuration Loader

BGP Protocol Configuration Loader allows user to define static initial configuration for a BGP protocol instance. This service will detect the creation of new configuration files following the pattern “protocols-*.xml” under the path “etc/opendaylight/bgp”. Once the file is processed, the defined configuration will be available from the configuration Data Store.

Note

If the BGP instance is already present, no update or configuration will be applied.

When installing BGP an example will be provided and a default configuration loaded.

PATH: etc/opendaylight/bgp/protocols-config.xml

<protocols xmlns="http://openconfig.net/yang/network-instance">
    <protocol>
        <name>example-bgp-rib</name>
        <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
        <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
            <global>
                <config>
                    <router-id>192.0.2.2</router-id>
                    <as>64496</as>
                    <!-- if cluster-id is not present, it's value is the same as bgp-id -->
                    <!-- <route-reflector-cluster-id>192.0.2.3</route-reflector-cluster-id> -->
                    <!-- <read-only-limit>120</read-only-limit>-->
                </config>
                <afi-safis>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
                        <!--Advertise N Paths
                        <receive>true</receive>
                        <send-max>2</send-max>-->
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-UNICAST</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-LABELLED-UNICAST</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-LABELLED-UNICAST</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV4-UNICAST</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV6-UNICAST</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L2VPN-EVPN</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name>LINKSTATE</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name>IPV4-FLOW</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name>IPV6-FLOW</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name>IPV4-L3VPN-FLOW</afi-safi-name>
                    </afi-safi>
                    <afi-safi>
                        <afi-safi-name>IPV6-L3VPN-FLOW</afi-safi-name>
                    </afi-safi>
                </afi-safis>
            </global>
            <neighbors xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
                <neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
                    <neighbor-address>192.0.2.1</neighbor-address>
                    <config>
                        <peer-type>INTERNAL</peer-type>
                        <peer-as>64496</peer-as>
                    </config>
                    <transport>
                        <config>
                            <remote-port>179</remote-port>
                            <passive-mode>true</passive-mode>
                        </config>
                    </transport>
                    <timers>
                        <config>
                            <hold-time>180</hold-time>
                            <connect-retry>10</connect-retry>
                        </config>
                    </timers>
                    <route-reflector>
                        <config>
                            <route-reflector-client>false</route-reflector-client>
                        </config>
                    </route-reflector>
                    <afi-safis>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
                            <!--Advertise N Paths
                            <receive>true</receive>
                            <send-max>0</send-max>-->
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-UNICAST</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-LABELLED-UNICAST</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-LABELLED-UNICAST</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV4-UNICAST</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV6-UNICAST</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L2VPN-EVPN</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name>LINKSTATE</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name>IPV4-FLOW</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name>IPV6-FLOW</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name>IPV4-L3VPN-FLOW</afi-safi-name>
                        </afi-safi>
                        <afi-safi>
                            <afi-safi-name>IPV6-L3VPN-FLOW</afi-safi-name>
                        </afi-safi>
                    </afi-safis>
                </neighbor>
                <neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
                    <neighbor-address>192.0.2.6</neighbor-address>
                    <config>
                        <peer-group>application-peers</peer-group>
                    </config>
                </neighbor>
            </neighbors>
        </bgp>
    </protocol>
</protocols>

BGP pipeline

BGP pipeline.

BGP pipeline - routes re-advertisement.

BGP Application Peer pipeline.

BGP applcaition peer pipeline - routes injection.

IP Unicast Family

The BGP-4 allows to carry IPv4 specific information only. The basic BGP Multiprotocol extension brings Unicast Subsequent Address Family (SAFI) - intended to be used for IP unicast forwarding. The combination of IPv4 and IPv6 Address Family (AF) and Unicast SAFI is essential for Internet routing. The IPv4 Unicast routes are interchangeable with BGP-4 routes, as they can carry the same type of routing information.

Configuration

This section shows a way to enable IPv4 and IPv6 Unicast family in BGP speaker and peer configuration.

BGP Speaker

To enable IPv4 and IPv6 Unicast support in BGP plugin, first configure BGP speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
            <afi-safis>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
                </afi-safi>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-UNICAST</afi-safi-name>
                </afi-safi>
            </afi-safis>
        </global>
    </bgp>
</protocol>

BGP Peer

Here is an example for BGP peer configuration with enabled IPv4 and IPv6 Unicast family.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <afi-safis>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-UNICAST</afi-safi-name>
        </afi-safi>
    </afi-safis>
</neighbor>

IP Unicast API

Following trees illustrate the BGP IP Unicast routes structures.

IPv4 Unicast Route

:(ipv4-routes-case)
   +--ro ipv4-routes
     +--ro ipv4-route* [prefix path-id]
        +--ro prefix        inet:ipv4-prefix
        +--ro path-id       path-id
        +--ro attributes
           +--ro origin
           |  +--ro value    bgp-t:bgp-origin
           +--ro as-path
           |  +--ro segments*
           |     +--ro as-sequence*   inet:as-number
           |     +--ro as-set*        inet:as-number
           +--ro (c-next-hop)?
           |  +--:(ipv4-next-hop-case)
           |  |  +--ro ipv4-next-hop
           |  |     +--ro global?   inet:ipv4-address
           |  +--:(ipv6-next-hop-case)
           |  |  +--ro ipv6-next-hop
           |  |     +--ro global?       inet:ipv6-address
           |  |     +--ro link-local?   inet:ipv6-address
           |  +--:(empty-next-hop-case)
           |     +--ro empty-next-hop?            empty
           +--ro multi-exit-disc
           |  +--ro med?   uint32
           +--ro local-pref
           |  +--ro pref?   uint32
           +--ro atomic-aggregate!
           +--ro aggregator
           |  +--ro as-number?         inet:as-number
           |  +--ro network-address?   inet:ipv4-address
           +--ro communities*
           |  +--ro as-number?   inet:as-number
           |  +--ro semantics?   uint16
           +--ro extended-communities*
           |  +--ro transitive?                             boolean
           |  +--ro (extended-community)?
           |     +--:(as-specific-extended-community-case)
           |     |  +--ro as-specific-extended-community
           |     |     +--ro global-administrator?   short-as-number
           |     |     +--ro local-administrator?    binary
           |     +--:(inet4-specific-extended-community-case)
           |     |  +--ro inet4-specific-extended-community
           |     |     +--ro global-administrator?   inet:ipv4-address
           |     |     +--ro local-administrator?    binary
           |     +--:(opaque-extended-community-case)
           |     |  +--ro opaque-extended-community
           |     |     +--ro value?   binary
           |     +--:(route-target-extended-community-case)
           |     |  +--ro route-target-extended-community
           |     |     +--ro global-administrator?   short-as-number
           |     |     +--ro local-administrator?    binary
           |     +--:(route-origin-extended-community-case)
           |     |  +--ro route-origin-extended-community
           |     |     +--ro global-administrator?   short-as-number
           |     |     +--ro local-administrator?    binary
           |     +--:(route-target-ipv4-case)
           |     |  +--ro route-target-ipv4
           |     |     +--ro global-administrator?   inet:ipv4-address
           |     |     +--ro local-administrator?    uint16
           |     +--:(route-origin-ipv4-case)
           |     |  +--ro route-origin-ipv4
           |     |     +--ro global-administrator?   inet:ipv4-address
           |     |     +--ro local-administrator?    uint16
           |     +--:(link-bandwidth-case)
           |     |  +--ro link-bandwidth-extended-community
           |     |     +--ro bandwidth    netc:bandwidth
           |     +--:(as-4-generic-spec-extended-community-case)
           |     |  +--ro as-4-generic-spec-extended-community
           |     |     +--ro as-4-specific-common
           |     |        +--ro as-number              inet:as-number
           |     |        +--ro local-administrator    uint16
           |     +--:(as-4-route-target-extended-community-case)
           |     |  +--ro as-4-route-target-extended-community
           |     |     +--ro as-4-specific-common
           |     |        +--ro as-number              inet:as-number
           |     |        +--ro local-administrator    uint16
           |     +--:(as-4-route-origin-extended-community-case)
           |     |  +--ro as-4-route-origin-extended-community
           |     |     +--ro as-4-specific-common
           |     |        +--ro as-number              inet:as-number
           |     |        +--ro local-administrator    uint16
           |     +--:(encapsulation-case)
           |        +--ro encapsulation-extended-community
           |           +--ro tunnel-type    encapsulation-tunnel-type
           +--ro originator-id
           |  +--ro originator?   inet:ipv4-address
           +--ro cluster-id
           |  +--ro cluster*   bgp-t:cluster-identifier
           +--ro aigp
           |  +--ro aigp-tlv
           |     +--ro metric?   netc:accumulated-igp-metric
           +--ro unrecognized-attributes* [type]
              +--ro partial       boolean
              +--ro transitive    boolean
              +--ro type          uint8
              +--ro value         binary

IPv6 Unicast Route

:(ipv6-routes-case)
   +--ro ipv6-routes
      +--ro ipv6-route* [prefix path-id]
         +--ro prefix        inet:ipv6-prefix
         +--ro path-id       path-id
         +--ro attributes
         ...

Usage

IPv4 Unicast

The IPv4 Unicast table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/ipv4-routes

Method: GET

Response Body:

<ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <ipv4-route>
        <path-id>0</path-id>
        <prefix>193.0.2.1/32</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>10.0.0.1</global>
            </ipv4-next-hop>
        </attributes>
    </ipv4-route>
</ipv4-routes>

IPv6 Unicast

The IPv6 Unicast table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/ipv6-routes

Method: GET

Response Body:

<ipv6-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <ipv6-route>
        <path-id>0</path-id>
        <prefix>2a02:b80:0:1::/64</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>200</pref>
            </local-pref>
            <ipv6-next-hop>
                <global>2a02:b80:0:2::1</global>
            </ipv6-next-hop>
        </attributes>
    </ipv6-route>
</ipv6-routes>

Note

IPv4/6 routes mapping to topology nodes is supported by BGP Topology Provider.

Programming

IPv4 Unicast

This examples show how to originate and remove IPv4 route via programmable RIB. Make sure the Application Peer is configured first.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes

Method: POST

Content-Type: application/xml

Request Body:

<ipv4-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <path-id>0</path-id>
    <prefix>10.0.0.11/32</prefix>
    <attributes>
        <as-path></as-path>
        <origin>
            <value>igp</value>
        </origin>
        <local-pref>
            <pref>100</pref>
        </local-pref>
        <ipv4-next-hop>
            <global>10.11.1.1</global>
        </ipv4-next-hop>
    </attributes>
</ipv4-route>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv4-routes/ipv4-route/10.0.0.11%2F32/0

Method: DELETE

IPv6 Unicast

This examples show how to originate and remove IPv6 route via programmable RIB:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv6-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv6-routes

Method: POST

Content-Type: application/xml

Request Body:

<ipv6-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <prefix>2001:db8:30::3/128</prefix>
    <path-id>0</path-id>
    <attributes>
        <ipv6-next-hop>
            <global>2001:db8:1::6</global>
        </ipv6-next-hop>
        <as-path/>
        <origin>
            <value>igp</value>
        </origin>
        <local-pref>
            <pref>100</pref>
        </local-pref>
    </attributes>
</ipv6-route>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv6-address-family/bgp-types:unicast-subsequent-address-family/bgp-inet:ipv6-routes/ipv6-route/2001:db8:30::3%2F128/0

Method: DELETE

IP Labeled Unicast Family

The BGP Labeled Unicast (BGP-LU) Multiprotocol extension is used to distribute a MPLS label that is mapped to a particular route. It can be used to advertise a MPLS transport path between IGP regions and Autonomous Systems. Also, BGP-LU can help to solve the Inter-domain traffic-engineering problem and can be deployed in large-scale data centers along with MPLS and Spring. In addition, IPv6 Labeled Unicast can be used to interconnect IPv6 islands over IPv4/MPLS networks using 6PE.

Configuration

This section shows a way to enable IPv4 and IPv6 Labeled Unicast family in BGP speaker and peer configuration.

BGP Speaker

To enable IPv4 and IPv6 Labeled Unicast support in BGP plugin, first configure BGP speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
            <afi-safis>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-LABELLED-UNICAST</afi-safi-name>
                </afi-safi>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-LABELLED-UNICAST</afi-safi-name>
                </afi-safi>
            </afi-safis>
        </global>
    </bgp>
</protocol>

BGP Peer

Here is an example for BGP peer configuration with enabled IPv4 and IPv6 Labeled Unicast family.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <afi-safis>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-LABELLED-UNICAST</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-LABELLED-UNICAST</afi-safi-name>
        </afi-safi>
    </afi-safis>
</neighbor>

IP Labeled Unicast API

Following trees illustrate the BGP IP Labeled Unicast routes structures.

IPv4 Labeled Unicast Route

:(labeled-unicast-routes-case)
  +--ro labeled-unicast-routes
     +--ro labeled-unicast-route* [route-key path-id]
        +--ro route-key      string
        +--ro label-stack*
        |  +--ro label-value?   netc:mpls-label
        +--ro prefix?        inet:ip-prefix
        +--ro path-id        path-id
        +--ro attributes
        ...

IPv6 Labeled Unicast Route

:(labeled-unicast-ipv6-routes-case)
   +--ro labeled-unicast-ipv6-routes
      +--ro labeled-unicast-route* [route-key path-id]
         +--ro route-key      string
         +--ro label-stack*
         |  +--ro label-value?   netc:mpls-label
         +--ro prefix?        inet:ip-prefix
         +--ro path-id        path-id
         +--ro attributes
         ...

Usage

The IPv4 Labeled Unicast table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-labeled-unicast:labeled-unicast-subsequent-address-family/bgp-labeled-unicast:labeled-unicast-routes

Method: GET

Response Body:

<labeled-unicast-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-labeled-unicast">
    <labeled-unicast-route>
        <path-id>0</path-id>
        <route-key>MAA+gRQAAA==</route-key>
        <attributes>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>200.10.0.101</global>
            </ipv4-next-hop>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
        </attributes>
        <label-stack>
            <label-value>1000</label-value>
        </label-stack>
        <prefix>20.0.0.0/24</prefix>
    </labeled-unicast-route>
</labeled-unicast-routes>

Programming

IPv4 Labeled

This examples show how to originate and remove IPv4 labeled route via programmable RIB. Make sure the Application Peer is configured first.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-labeled-unicast:labeled-unicast-subsequent-address-family/bgp-labeled-unicast:labeled-unicast-routes

Method: POST

Content-Type: application/xml

Request Body:

<labeled-unicast-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-labeled-unicast">
    <route-key>label1</route-key>
    <prefix>1.1.1.1/32</prefix>
    <path-id>0</path-id>
    <label-stack>
        <label-value>800322</label-value>
    </label-stack>
    <attributes>
        <ipv4-next-hop>
            <global>199.20.160.41</global>
        </ipv4-next-hop>
        <origin>
            <value>igp</value>
        </origin>
        <as-path/>
        <local-pref>
            <pref>100</pref>
        </local-pref>
    </attributes>
</labeled-unicast-route>

In addition, BGP-LU Spring extension allows to attach BGP Prefix SID attribute to the route, in order to signal the BGP-Prefix-SID, where the SR is applied to MPLS dataplane.

<bgp-prefix-sid>
    <bgp-prefix-sid-tlvs>
        <label-index-tlv xmlns="urn:opendaylight:params:xml:ns:yang:bgp-labeled-unicast">322</label-index-tlv>
    </bgp-prefix-sid-tlvs>
    <bgp-prefix-sid-tlvs>
        <srgb-value xmlns="urn:opendaylight:params:xml:ns:yang:bgp-labeled-unicast">
            <base>800000</base>
            <range>4095</range>
        </srgb-value>
    </bgp-prefix-sid-tlvs>
</bgp-prefix-sid>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-labeled-unicast:labeled-unicast-subsequent-address-family/bgp-labeled-unicast:labeled-unicast-routes/bgp-labeled-unicast:labeled-unicast-route/label1/0

Method: DELETE

IPv6 Labeled

This examples show how to originate and remove IPv6 labeled route via programmable RIB.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-labeled-unicast:labeled-unicast-subsequent-address-family/bgp-labeled-unicast:labeled-unicast-ipv6-routes

Method: POST

Content-Type: application/xml

Request Body:

<labeled-unicast-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-labeled-unicast">
    <route-key>label1</route-key>
    <prefix>2001:db8:30::3/128</prefix>
    <path-id>0</path-id>
    <label-stack>
        <label-value>123</label-value>
    </label-stack>
    <attributes>
        <ipv6-next-hop>
            <global>2003:4:5:6::7</global>
        </ipv6-next-hop>
        <origin>
            <value>igp</value>
        </origin>
        <as-path/>
        <local-pref>
            <pref>100</pref>
        </local-pref>
    </attributes>
</labeled-unicast-route>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-labeled-unicast:labeled-unicast-subsequent-address-family/bgp-labeled-unicast:labeled-unicast-ipv6-routes/bgp-labeled-unicast:labeled-unicast-route/label1/0

Method: DELETE

IP L3VPN Family

The BGP/MPLS IP Virtual Private Networks (BGP L3VPN) Multiprotocol extension can be used to exchange particular VPN (customer) routes among the provider’s routers attached to that VPN. Also, routes are distributed to specific VPN remote sites.

Configuration

This section shows a way to enable IPv4 and IPv6 L3VPN family in BGP speaker and peer configuration.

BGP Speaker

To enable IPv4 and IPv6 L3VPN support in BGP plugin, first configure BGP speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
            <afi-safis>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV4-UNICAST</afi-safi-name>
                </afi-safi>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV6-UNICAST</afi-safi-name>
                </afi-safi>
            </afi-safis>
        </global>
    </bgp>
</protocol>

BGP Peer

Here is an example for BGP peer configuration with enabled IPv4 and IPv6 L3VPN family.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <afi-safis>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV4-UNICAST</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L3VPN-IPV6-UNICAST</afi-safi-name>
        </afi-safi>
    </afi-safis>
</neighbor>

IP L3VPN API

Following trees illustrate the BGP IP L3VPN routes structures.

IPv4 L3VPN Route

:(vpn-ipv4-routes-case)
   +--ro vpn-ipv4-routes
      +--ro vpn-route* [route-key]
         +--ro route-key              string
         +--ro label-stack*
         |  +--ro label-value?   netc:mpls-label
         +--ro prefix?                inet:ip-prefix
         +--ro path-id?               path-id
         +--ro route-distinguisher?   bgp-t:route-distinguisher
         +--ro attributes
         ...

IPv6 L3VPN Route

:(vpn-ipv6-routes-case)
   +--ro vpn-ipv6-routes
      +--ro vpn-route* [route-key]
         +--ro route-key              string
         +--ro label-stack*
         |  +--ro label-value?   netc:mpls-label
         +--ro prefix?                inet:ip-prefix
         +--ro path-id?               path-id
         +--ro route-distinguisher?   bgp-t:route-distinguisher
         +--ro attributes
         ...

Usage

IPv4 L3VPN

The IPv4 L3VPN table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-types:mpls-labeled-vpn-subsequent-address-family/bgp-vpn-ipv4:vpn-ipv4-routes

Method: GET

Response Body:

<vpn-ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-vpn-ipv4">
    <vpn-route>
        <route-key>cAXdYQABrBAALABlCgIi</route-key>
        <label-stack>
            <label-value>24022</label-value>
        </label-stack>
        <attributes>
            <extended-communities>
                <transitive>true</transitive>
                <route-target-extended-community>
                    <global-administrator>65000</global-administrator>
                    <local-administrator>AAAAZQ==</local-administrator>
                </route-target-extended-community>
            </extended-communities>
            <origin>
                <value>igp</value>
            </origin>
            <as-path></as-path>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>127.16.0.44</global>
            </ipv4-next-hop>
        </attributes>
        <route-distinguisher>172.16.0.44:101</route-distinguisher>
        <prefix>10.2.34.0/24</prefix>
    </vpn-route>
</vpn-ipv4-routes>

IPv6 L3VPN

The IPv6 L3VPN table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv6-address-family/bgp-types:mpls-labeled-vpn-subsequent-address-family/bgp-vpn-ipv6:vpn-ipv6-routes

Method: GET

Response Body:

<vpn-ipv6-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-vpn-ipv6">
    <vpn-route>
        <route-key>mAXdcQABrBAALABlKgILgAAAAAE=</route-key>
        <label-stack>
            <label-value>24023</label-value>
        </label-stack>
        <attributes>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <extended-communities>
                <route-target-extended-community>
                    <global-administrator>65000</global-administrator>
                    <local-administrator>AAAAZQ==</local-administrator>
                </route-target-extended-community>
                <transitive>true</transitive>
            </extended-communities>
            <ipv6-next-hop>
                <global>2a02:b80:0:2::1</global>
            </ipv6-next-hop>
            <origin>
                <value>igp</value>
            </origin>
            <as-path></as-path>
        </attributes>
        <route-distinguisher>172.16.0.44:101</route-distinguisher>
        <prefix>2a02:b80:0:1::/64</prefix>
    </vpn-route>
</vpn-ipv6-routes>

Programming

This examples show how to originate and remove IPv4 L3VPN route via programmable RIB. Make sure the Application Peer is configured first.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:mpls-labeled-vpn-subsequent-address-family/bgp-vpn-ipv4:vpn-ipv4-routes

Method: POST

Content-Type: application/xml

Request Body:

<vpn-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-vpn-ipv4">
    <route-key>vpn1</route-key>
    <label-stack>
        <label-value>123</label-value>
    </label-stack>
    <route-distinguisher>429496729:1</route-distinguisher>
    <prefix>2.2.2.2/32</prefix>
    <attributes>
        <ipv4-next-hop>
            <global>199.20.166.41</global>
        </ipv4-next-hop>
        <as-path/>
        <origin>
            <value>igp</value>
        </origin>
        <extended-communities>
            <route-target-extended-community>
                <global-administrator>65000</global-administrator>
                <local-administrator>AAAAZQ==</local-administrator>
            </route-target-extended-community>
            <transitive>true</transitive>
        </extended-communities>
    </attributes>
</vpn-route>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-types:mpls-labeled-vpn-subsequent-address-family/bgp-vpn-ipv4:vpn-ipv4-routes/vpn-route/vpn1

Method: DELETE

Flow Specification Family

The BGP Flow Specification (BGP-FS) Multiprotocol extension can be used to distribute traffic flow specifications. For example, the BGP-FS can be used in a case of (distributed) denial-of-service (DDoS) attack mitigation procedures and traffic filtering (BGP/MPLS VPN service, DC).

Configuration

This section shows a way to enable BGP-FS family in BGP speaker and peer configuration.

BGP Speaker

To enable BGP-FS support in BGP plugin, first configure BGP speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
            <afi-safis>
                <afi-safi>
                    <afi-safi-name>IPV4-FLOW</afi-safi-name>
                </afi-safi>
                <afi-safi>
                    <afi-safi-name>IPV6-FLOW</afi-safi-name>
                </afi-safi>
                <afi-safi>
                    <afi-safi-name>IPV4-L3VPN-FLOW</afi-safi-name>
                </afi-safi>
                <afi-safi>
                    <afi-safi-name>IPV6-L3VPN-FLOW</afi-safi-name>
                </afi-safi>
            </afi-safis>
        </global>
    </bgp>
</protocol>

BGP Peer

Here is an example for BGP peer configuration with enabled BGP-FS family.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <afi-safis>
        <afi-safi>
            <afi-safi-name>IPV4-FLOW</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name>IPV6-FLOW</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name>IPV4-L3VPN-FLOW</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name>IPV6-L3VPN-FLOW</afi-safi-name>
        </afi-safi>
    </afi-safis>
</neighbor>

Flow Specification API

Following trees illustrate the BGP Flow Specification routes structure.

IPv4 Flow Specification Route

:(flowspec-routes-case)
  +--ro flowspec-routes
     +--ro flowspec-route* [route-key path-id]
        +--ro route-key     string
        +--ro flowspec*
        |  +--ro (flowspec-type)?
        |     +--:(port-case)
        |     |  +--ro ports*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(destination-port-case)
        |     |  +--ro destination-ports*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(source-port-case)
        |     |  +--ro source-ports*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(icmp-type-case)
        |     |  +--ro types*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint8
        |     +--:(icmp-code-case)
        |     |  +--ro codes*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint8
        |     +--:(tcp-flags-case)
        |     |  +--ro tcp-flags*
        |     |     +--ro op?      bitmask-operand
        |     |     +--ro value?   uint16
        |     +--:(packet-length-case)
        |     |  +--ro packet-lengths*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(dscp-case)
        |     |  +--ro dscps*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   dscp
        |     +--:(fragment-case)
        |     |  +--ro fragments*
        |     |     +--ro op?      bitmask-operand
        |     |     +--ro value?   fragment
        |     +--:(destination-prefix-case)
        |     |  +--ro destination-prefix?   inet:ipv4-prefix
        |     +--:(source-prefix-case)
        |     |  +--ro source-prefix?        inet:ipv4-prefix
        |     +--:(protocol-ip-case)
        |        +--ro protocol-ips*
        |           +--ro op?      numeric-operand
        |           +--ro value?   uint8
        +--ro path-id       path-id
        +--ro attributes
           +--ro extended-communities*
              +--ro transitive?                             boolean
              +--ro (extended-community)?
                 +--:(traffic-rate-extended-community-case)
                 |  +--ro traffic-rate-extended-community
                 |     +--ro informative-as?        bgp-t:short-as-number
                 |     +--ro local-administrator?   netc:bandwidth
                 +--:(traffic-action-extended-community-case)
                 |  +--ro traffic-action-extended-community
                 |     +--ro sample?            boolean
                 |     +--ro terminal-action?   boolean
                 +--:(redirect-extended-community-case)
                 |  +--ro redirect-extended-community
                 |     +--ro global-administrator?   bgp-t:short-as-number
                 |     +--ro local-administrator?    binary
                 +--:(traffic-marking-extended-community-case)
                 |  +--ro traffic-marking-extended-community
                 |     +--ro global-administrator?   dscp
                 +--:(redirect-ipv4-extended-community-case)
                 |  +--ro redirect-ipv4
                 |     +--ro global-administrator?   inet:ipv4-address
                 |     +--ro local-administrator?    uint16
                 +--:(redirect-as4-extended-community-case)
                 |  +--ro redirect-as4
                 |     +--ro global-administrator?   inet:as-number
                 |     +--ro local-administrator?    uint16
                 +--:(redirect-ip-nh-extended-community-case)
                   +--ro redirect-ip-nh-extended-community
                      +--ro next-hop-address?   inet:ip-address
                      +--ro copy?               boolean

IPv6 Flow Specification Route

:(flowspec-ipv6-routes-case)
  +--ro flowspec-ipv6-routes
     +--ro flowspec-route* [route-key path-id]
        +--ro flowspec*
        |  +--ro (flowspec-type)?
        |     +--:(port-case)
        |     |  +--ro ports*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(destination-port-case)
        |     |  +--ro destination-ports*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(source-port-case)
        |     |  +--ro source-ports*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(icmp-type-case)
        |     |  +--ro types*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint8
        |     +--:(icmp-code-case)
        |     |  +--ro codes*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint8
        |     +--:(tcp-flags-case)
        |     |  +--ro tcp-flags*
        |     |     +--ro op?      bitmask-operand
        |     |     +--ro value?   uint16
        |     +--:(packet-length-case)
        |     |  +--ro packet-lengths*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint16
        |     +--:(dscp-case)
        |     |  +--ro dscps*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   dscp
        |     +--:(fragment-case)
        |     |  +--ro fragments*
        |     |     +--ro op?      bitmask-operand
        |     |     +--ro value?   fragment
        |     +--:(destination-ipv6-prefix-case)
        |     |  +--ro destination-prefix?   inet:ipv6-prefix
        |     +--:(source-ipv6-prefix-case)
        |     |  +--ro source-prefix?        inet:ipv6-prefix
        |     +--:(next-header-case)
        |     |  +--ro next-headers*
        |     |     +--ro op?      numeric-operand
        |     |     +--ro value?   uint8
        |     +--:(flow-label-case)
        |        +--ro flow-label*
        |           +--ro op?      numeric-operand
        |           +--ro value?   uint32
        +--ro path-id       path-id
        +--ro attributes
           +--ro extended-communities*
              +--ro transitive?                             boolean
              +--ro (extended-community)?
                 +--:(traffic-rate-extended-community-case)
                 |  +--ro traffic-rate-extended-community
                 |     +--ro informative-as?        bgp-t:short-as-number
                 |     +--ro local-administrator?   netc:bandwidth
                 +--:(traffic-action-extended-community-case)
                 |  +--ro traffic-action-extended-community
                 |     +--ro sample?            boolean
                 |     +--ro terminal-action?   boolean
                 +--:(redirect-extended-community-case)
                 |  +--ro redirect-extended-community
                 |     +--ro global-administrator?   bgp-t:short-as-number
                 |     +--ro local-administrator?    binary
                 +--:(traffic-marking-extended-community-case)
                 |  +--ro traffic-marking-extended-community
                 |     +--ro global-administrator?   dscp
                 +--:(redirect-ipv6-extended-community-case)
                 |  +--ro redirect-ipv6
                 |     +--ro global-administrator?   inet:ipv6-address
                 |     +--ro local-administrator?    uint16
                 +--:(redirect-as4-extended-community-case)
                 |  +--ro redirect-as4
                 |     +--ro global-administrator?   inet:as-number
                 |     +--ro local-administrator?    uint16
                 +--:(redirect-ip-nh-extended-community-case)
                    +--ro redirect-ip-nh-extended-community
                       +--ro next-hop-address?   inet:ip-address
                       +--ro copy?               boolean

Usage

The flowspec route represents rules and an action, defined as an extended community.

IPv4 Flow Specification

The IPv4 Flowspec table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-flowspec:flowspec-subsequent-address-family/bgp-flowspec:flowspec-routes

Method: GET

Response Body:

<flowspec-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-flowspec">
    <flowspec-route>
        <path-id>0</path-id>
        <route-key>all packets to 192.168.0.1/32 AND from 10.0.0.2/32 AND where IP protocol equals to 17 or equals to 6 AND where port equals to 80 or equals to 8080 AND where destination port is greater than 8080 and is less than 8088 or equals to 3128 AND where source port is greater than 1024 </route-key>
        <attributes>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <origin>
                <value>igp</value>
            </origin>
            <as-path></as-path>
            <extended-communities>
                <transitive>true</transitive>
                <redirect-extended-community>
                    <local-administrator>AgMWLg==</local-administrator>
                    <global-administrator>258</global-administrator>
                </redirect-extended-community>
            </extended-communities>
        </attributes>
        <flowspec>
            <destination-prefix>192.168.0.1/32</destination-prefix>
        </flowspec>
        <flowspec>
            <source-prefix>10.0.0.2/32</source-prefix>
        </flowspec>
        <flowspec>
            <protocol-ips>
                <op>equals</op>
                <value>17</value>
            </protocol-ips>
            <protocol-ips>
                <op>equals end-of-list</op>
                <value>6</value>
            </protocol-ips>
        </flowspec>
        <flowspec>
            <ports>
                <op>equals</op>
                <value>80</value>
            </ports>
            <ports>
                <op>equals end-of-list</op>
                <value>8080</value>
            </ports>
        </flowspec>
        <flowspec>
            <destination-ports>
                <op>greater-than</op>
                <value>8080</value>
            </destination-ports>
            <destination-ports>
                <op>less-than and-bit</op>
                <value>8088</value>
            </destination-ports>
            <destination-ports>
                <op>equals end-of-list</op>
                <value>3128</value>
            </destination-ports>
        </flowspec>
        <flowspec>
            <source-ports>
                <op>end-of-list greater-than</op>
                <value>1024</value>
            </source-ports>
        </flowspec>
    </flowspec-route>
</flowspec-routes>

IPv6 Flows Specification

The IPv6 Flowspec table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv6-address-family/bgp-flowspec:flowspec-subsequent-address-family/bgp-flowspec:flowspec-ipv6-routes

Method: GET

Response Body:

<flowspec-ipv6-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-flowspec">
    <flowspec-route>
        <path-id>0</path-id>
        <route-key>all packets to 2001:db8:31::/64 AND from 2001:db8:30::/64 AND where next header equals to 17 AND where DSCP equals to 50 AND where flow label equals to 2013 </route-key>
        <attributes>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <origin>
                <value>igp</value>
            </origin>
            <as-path></as-path>
            <extended-communities>
                <transitive>true</transitive>
                <traffic-rate-extended-community>
                    <informative-as>0</informative-as>
                    <local-administrator>AAAAAA==</local-administrator>
                </traffic-rate-extended-community>
            </extended-communities>
        </attributes>
        <flowspec>
            <destination-prefix>2001:db8:31::/64</destination-prefix>
        </flowspec>
        <flowspec>
            <source-prefix>2001:db8:30::/64</source-prefix>
        </flowspec>
        <flowspec>
            <next-headers>
                <op>equals end-of-list</op>
                <value>17</value>
            </next-headers>
        </flowspec>
        <flowspec>
            <dscps>
                <op>equals end-of-list</op>
                <value>50</value>
            </dscps>
        </flowspec>
        <flowspec>
            <flow-label>
                <op>equals end-of-list</op>
                <value>2013</value>
            </flow-label>
        </flowspec>
    </flowspec-route>
</flowspec-ipv6-routes>

IPv4 L3VPN Flows Specification

The IPv4 L3VPN Flowspec table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-flowspec:flowspec-l3vpn-subsequent-address-family/bgp-flowspec:flowspec-l3vpn-ipv4-routes

Method: GET

Response Body:

<flowspec-l3vpn-ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-flowspec">
    <flowspec-l3vpn-route>
        <path-id>0</path-id>
        <route-key>[l3vpn with route-distinguisher 172.16.0.44:101] all packets from 10.0.0.3/32</route-key>
        <attributes>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>5.6.7.8</global>
            </ipv4-next-hop>
            <origin>
                <value>igp</value>
            </origin>
            <as-path></as-path>
            <extended-communities>
                <transitive>true</transitive>
                <redirect-ip-nh-extended-community>
                    <copy>false</copy>
                    <next-hop-address>0.0.0.0</next-hop-address>
                </redirect-ip-nh-extended-community>
            </extended-communities>
        </attributes>
        <route-distinguisher>172.16.0.44:101</route-distinguisher>
        <flowspec>
            <source-prefix>10.0.0.3/32</source-prefix>
        </flowspec>
    </flowspec-l3vpn-route>
</flowspec-l3vpn-ipv4-routes>

Programming

IPv4 Flow Specification

This examples show how to originate and remove IPv4 fowspec route via programmable RIB. Make sure the Application Peer is configured first.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-flowspec:flowspec-subsequent-address-family/bgp-flowspec:flowspec-routes

Method: POST

Content-Type: application/xml

Request Body:

<flowspec-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-flowspec">
    <route-key>flow1</route-key>
    <path-id>0</path-id>
    <flowspec>
        <destination-prefix>192.168.0.1/32</destination-prefix>
    </flowspec>
    <flowspec>
        <source-prefix>10.0.0.1/32</source-prefix>
    </flowspec>
    <flowspec>
        <protocol-ips>
            <op>equals end-of-list</op>
            <value>6</value>
        </protocol-ips>
    </flowspec>
    <flowspec>
        <ports>
            <op>equals end-of-list</op>
            <value>80</value>
        </ports>
    </flowspec>
    <flowspec>
        <destination-ports>
            <op>greater-than</op>
            <value>8080</value>
        </destination-ports>
        <destination-ports>
            <op>and-bit less-than end-of-list</op>
            <value>8088</value>
        </destination-ports>
    </flowspec>
    <flowspec>
        <source-ports>
            <op>greater-than end-of-list</op>
            <value>1024</value>
        </source-ports>
    </flowspec>
    <flowspec>
        <types>
            <op>equals end-of-list</op>
            <value>0</value>
        </types>
    </flowspec>
    <flowspec>
        <codes>
            <op>equals end-of-list</op>
            <value>0</value>
        </codes>
    </flowspec>
    <flowspec>
        <tcp-flags>
            <op>match end-of-list</op>
            <value>32</value>
        </tcp-flags>
    </flowspec>
    <flowspec>
        <packet-lengths>
            <op>greater-than</op>
            <value>400</value>
        </packet-lengths>
        <packet-lengths>
            <op>and-bit less-than end-of-list</op>
            <value>500</value>
        </packet-lengths>
    </flowspec>
    <flowspec>
        <dscps>
            <op>equals end-of-list</op>
            <value>20</value>
        </dscps>
    </flowspec>
    <flowspec>
        <fragments>
            <op>match end-of-list</op>
            <value>first</value>
        </fragments>
    </flowspec>
    <attributes>
        <origin>
            <value>igp</value>
        </origin>
        <as-path/>
        <local-pref>
            <pref>100</pref>
        </local-pref>
        <extended-communities>
            ....
        </extended-communities>
    </attributes>
</flowspec-route>

Extended Communities

  • Traffic Rate
    1
2
3
4
5
6
7
    <extended-communities>
    <transitive>true</transitive>
    <traffic-rate-extended-community>
        <informative-as>123</informative-as>
        <local-administrator>AAAAAA==</local-administrator>
    </traffic-rate-extended-community>
</extended-communities>

    @line 5: A rate in bytes per second, AAAAAA== (0) means traffic discard.

  • Traffic Action
    <extended-communities>
    <transitive>true</transitive>
    <traffic-action-extended-community>
        <sample>true</sample>
        <terminal-action>false</terminal-action>
    </traffic-action-extended-community>
</extended-communities>
  • Redirect to VRF AS 2byte format
    <extended-communities>
    <transitive>true</transitive>
    <redirect-extended-community>
        <global-administrator>123</global-administrator>
        <local-administrator>AAAAew==</local-administrator>
    </redirect-extended-community>
</extended-communities>
  • Redirect to VRF IPv4 format
    <extended-communities>
    <transitive>true</transitive>
    <redirect-ipv4>
        <global-administrator>192.168.0.1</global-administrator>
        <local-administrator>12345</local-administrator>
    </redirect-ipv4>
</extended-communities>
  • Redirect to VRF AS 4byte format
    <extended-communities>
    <transitive>true</transitive>
    <redirect-as4>
        <global-administrator>64495</global-administrator>
        <local-administrator>12345</local-administrator>
    </redirect-as4>
</extended-communities>
  • Redirect to IP
    <extended-communities>
    <transitive>true</transitive>
    <redirect-ip-nh-extended-community>
        <copy>false</false>
    </redirect-ip-nh-extended-community>
</extended-communities>
  • Traffic Marking
    <extended-communities>
    <transitive>true</transitive>
    <traffic-marking-extended-community>
        <global-administrator>20</global-administrator>
    </traffic-marking-extended-community>
</extended-communities>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-flowspec:flowspec-subsequent-address-family/bgp-flowspec:flowspec-routes/bgp-flowspec:flowspec-route/flow1/0

Method: DELETE

IPv4 L3VPN Flow Specification

This examples show how to originate and remove IPv4 L3VPN fowspec route via programmable RIB.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-flowspec:flowspec-l3vpn-subsequent-address-family/bgp-flowspec:flowspec-l3vpn-ipv4-routes

Method: POST

Content-Type: application/xml

Request Body:

<flowspec-l3vpn-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-flowspec">
    <path-id>0</path-id>
    <route-key>flow-l3vpn</route-key>
    <route-distinguisher>172.16.0.44:101</route-distinguisher>
    <flowspec>
        <source-prefix>10.0.0.3/32</source-prefix>
    </flowspec>
    <attributes>
        <local-pref>
            <pref>100</pref>
        </local-pref>
        <origin>
            <value>igp</value>
        </origin>
        <as-path></as-path>
           <extended-communities>
               <transitive>true</transitive>
               <redirect-ipv4>
                   <global-administrator>172.16.0.44</global-administrator>
                   <local-administrator>102</local-administrator>
               </redirect-ipv4>
           </extended-communities>
    </attributes>
</flowspec-l3vpn-route>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/bgp-flowspec:flowspec-l3vpn-subsequent-address-family/bgp-flowspec:flowspec-l3vpn-ipv4-routes/flowspec-l3vpn-route/flow-l3vpn/0

Method: DELETE

IPv6 Flow Specification

This examples show how to originate and remove IPv6 fowspec route via programmable RIB.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv6-address-family/bgp-flowspec:flowspec-subsequent-address-family/bgp-flowspec:flowspec-ipv6-routes

Method: POST

Content-Type: application/xml

Request Body:

<flowspec-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-flowspec">
    <route-key>flow-v6</route-key>
    <path-id>0</path-id>
    <flowspec>
        <destination-prefix>2001:db8:30::3/128</destination-prefix>
    </flowspec>
    <flowspec>
        <source-prefix>2001:db8:31::3/128</source-prefix>
     </flowspec>
    <flowspec>
        <flow-label>
            <op>equals end-of-list</op>
            <value>1</value>
        </flow-label>
    </flowspec>
    <attributes>
        <extended-communities>
            <transitive>true</transitive>
            <redirect-ipv6>
                <global-administrator>2001:db8:1::6</global-administrator>
                <local-administrator>12345</local-administrator>
            </redirect-ipv6>
        </extended-communities>
        <origin>
            <value>igp</value>
        </origin>
        <as-path/>
        <local-pref>
            <pref>100</pref>
        </local-pref>
    </attributes>
</flowspec-route>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv6-address-family/bgp-flowspec:flowspec-subsequent-address-family/bgp-flowspec:flowspec-ipv6-routes/bgp-flowspec:flowspec-route/flow-v6/0

Method: DELETE

EVPN Family

The BGP MPLS-Based Ethernet VPN (BGP EVPN) Multiprotocol extension can be used to distribute Ethernet L2VPN service related routes in order to support a concept of MAC routing. A major use-case for BGP EVPN is data-center interconnection (DCI), where advantage of BGP EVPN are MAC/IP address advertising across MPLS network, Multihoming functionality including Fast Convergence, Split Horizon and Aliasing support, VM (MAC) Mobility, support Multicast and Broadcast traffic. In addition to MPLS, IP tunnelling encapsulation techniques like VXLAN, NVGRE, MPLSoGRE and others can be used for packet transportation. Also, Provider Backbone Bridging (PBB) can be combined with EVPN in order to reduce a number of MAC Advertisement routes.

Configuration

This section shows a way to enable EVPN family in BGP speaker and peer configuration.

BGP Speaker

To enable EVPN support in BGP plugin, first configure BGP speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
            <afi-safis>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L2VPN-EVPN</afi-safi-name>
                </afi-safi>
            </afi-safis>
        </global>
    </bgp>
</protocol>

BGP Peer

Here is an example for BGP peer configuration with enabled EVPN family.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <afi-safis>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:L2VPN-EVPN</afi-safi-name>
        </afi-safi>
    </afi-safis>
</neighbor>

EVPN Route API

Following tree illustrate the BGP EVPN route structure.

:(evpn-routes-case)
   +--ro evpn-routes
      +--ro evpn-route* [route-key]
         +--ro route-key                     string
         +--ro (evpn-choice)
         |  +--:(ethernet-a-d-route-case)
         |  |  +--ro ethernet-a-d-route
         |  |     +--ro (esi)
         |  |     |  +--:(arbitrary-case)
         |  |     |  |  +--ro arbitrary
         |  |     |  |     +--ro arbitrary    binary
         |  |     |  +--:(lacp-auto-generated-case)
         |  |     |  |  +--ro lacp-auto-generated
         |  |     |  |     +--ro ce-lacp-mac-address    yang:mac-address
         |  |     |  |     +--ro ce-lacp-port-key       uint16
         |  |     |  +--:(lan-auto-generated-case)
         |  |     |  |  +--ro lan-auto-generated
         |  |     |  |     +--ro root-bridge-mac-address    yang:mac-address
         |  |     |  |     +--ro root-bridge-priority       uint16
         |  |     |  +--:(mac-auto-generated-case)
         |  |     |  |  +--ro mac-auto-generated
         |  |     |  |     +--ro system-mac-address     yang:mac-address
         |  |     |  |     +--ro local-discriminator    uint24
         |  |     |  +--:(router-id-generated-case)
         |  |     |  |  +--ro router-id-generated
         |  |     |  |     +--ro router-id              inet:ipv4-address
         |  |     |  |     +--ro local-discriminator    uint32
         |  |     |  +--:(as-generated-case)
         |  |     |     +--ro as-generated
         |  |     |        +--ro as                     inet:as-number
         |  |     |        +--ro local-discriminator    uint32
         |  |     +--ro ethernet-tag-id
         |  |     |  +--ro vlan-id    uint32
         |  |     +--ro mpls-label             netc:mpls-label
         |  +--:(mac-ip-adv-route-case)
         |  |  +--ro mac-ip-adv-route
         |  |     +--ro (esi)
         |  |     |  +--:(arbitrary-case)
         |  |     |  |  +--ro arbitrary
         |  |     |  |     +--ro arbitrary    binary
         |  |     |  +--:(lacp-auto-generated-case)
         |  |     |  |  +--ro lacp-auto-generated
         |  |     |  |     +--ro ce-lacp-mac-address    yang:mac-address
         |  |     |  |     +--ro ce-lacp-port-key       uint16
         |  |     |  +--:(lan-auto-generated-case)
         |  |     |  |  +--ro lan-auto-generated
         |  |     |  |     +--ro root-bridge-mac-address    yang:mac-address
         |  |     |  |     +--ro root-bridge-priority       uint16
         |  |     |  +--:(mac-auto-generated-case)
         |  |     |  |  +--ro mac-auto-generated
         |  |     |  |     +--ro system-mac-address     yang:mac-address
         |  |     |  |     +--ro local-discriminator    uint24
         |  |     |  +--:(router-id-generated-case)
         |  |     |  |  +--ro router-id-generated
         |  |     |  |     +--ro router-id              inet:ipv4-address
         |  |     |  |     +--ro local-discriminator    uint32
         |  |     |  +--:(as-generated-case)
         |  |     |     +--ro as-generated
         |  |     |        +--ro as                     inet:as-number
         |  |     |        +--ro local-discriminator    uint32
         |  |     +--ro ethernet-tag-id
         |  |     |  +--ro vlan-id    uint32
         |  |     +--ro mac-address            yang:mac-address
         |  |     +--ro ip-address?            inet:ip-address
         |  |     +--ro mpls-label1            netc:mpls-label
         |  |     +--ro mpls-label2?           netc:mpls-label
         |  +--:(inc-multi-ethernet-tag-res-case)
         |  |  +--ro inc-multi-ethernet-tag-res
         |  |     +--ro ethernet-tag-id
         |  |     |  +--ro vlan-id    uint32
         |  |     +--ro orig-route-ip?     inet:ip-address
         |  +--:(es-route-case)
         |     +--ro es-route
         |        +--ro (esi)
         |        |  +--:(arbitrary-case)
         |        |  |  +--ro arbitrary
         |        |  |     +--ro arbitrary    binary
         |        |  +--:(lacp-auto-generated-case)
         |        |  |  +--ro lacp-auto-generated
         |        |  |     +--ro ce-lacp-mac-address    yang:mac-address
         |        |  |     +--ro ce-lacp-port-key       uint16
         |        |  +--:(lan-auto-generated-case)
         |        |  |  +--ro lan-auto-generated
         |        |  |     +--ro root-bridge-mac-address    yang:mac-address
         |        |  |     +--ro root-bridge-priority       uint16
         |        |  +--:(mac-auto-generated-case)
         |        |  |  +--ro mac-auto-generated
         |        |  |     +--ro system-mac-address     yang:mac-address
         |        |  |     +--ro local-discriminator    uint24
         |        |  +--:(router-id-generated-case)
         |        |  |  +--ro router-id-generated
         |        |  |     +--ro router-id              inet:ipv4-address
         |        |  |     +--ro local-discriminator    uint32
         |        |  +--:(as-generated-case)
         |        |     +--ro as-generated
         |        |        +--ro as                     inet:as-number
         |        |        +--ro local-discriminator    uint32
         |        +--ro orig-route-ip          inet:ip-address
         +--ro route-distinguisher           bgp-t:route-distinguisher
         +--ro attributes
            +--ro extended-communities*
            |  +--ro transitive?                              boolean
            |  +--ro (extended-community)?
            |     +--:(encapsulation-case)
            |     |  +--ro encapsulation-extended-community
            |     |     +--ro tunnel-type    encapsulation-tunnel-type
            |     +--:(esi-label-extended-community-case)
            |     |  +--ro esi-label-extended-community
            |     |     +--ro single-active-mode?   boolean
            |     |     +--ro esi-label             netc:mpls-label
            |     +--:(es-import-route-extended-community-case)
            |     |  +--ro es-import-route-extended-community
            |     |     +--ro es-import    yang:mac-address
            |     +--:(mac-mobility-extended-community-case)
            |     |  +--ro mac-mobility-extended-community
            |     |     +--ro static?       boolean
            |     |     +--ro seq-number    uint32
            |     +--:(default-gateway-extended-community-case)
            |     |  +--ro default-gateway-extended-community!
            |     +--:(layer-2-attributes-extended-community-case)
            |        +--ro layer-2-attributes-extended-community
            |           +--ro primary-pe?     boolean
            |           +--ro backup-pe?      boolean
            |           +--ro control-word?   boolean
            |           +--ro l2-mtu          uint16
            +--ro pmsi-tunnel!
               +--ro leaf-information-required    boolean
               +--ro mpls-label?                  netc:mpls-label
               +--ro (tunnel-identifier)?
                  +--:(rsvp-te-p2mp-lsp)
                  |  +--ro rsvp-te-p2mp-lps
                  |     +--ro p2mp-id               uint32
                  |     +--ro tunnel-id             uint16
                  |     +--ro extended-tunnel-id    inet:ip-address
                  +--:(mldp-p2mp-lsp)
                  |  +--ro mldp-p2mp-lsp
                  |     +--ro address-family       identityref
                  |     +--ro root-node-address    inet:ip-address
                  |     +--ro opaque-value*
                  |        +--ro opaque-type             uint8
                  |        +--ro opaque-extended-type?   uint16
                  |        +--ro opaque                  yang:hex-string
                  +--:(pim-ssm-tree)
                  |  +--ro pim-ssm-tree
                  |     +--ro p-address            inet:ip-address
                  |     +--ro p-multicast-group    inet:ip-address
                  +--:(pim-sm-tree)
                  |  +--ro pim-sm-tree
                  |     +--ro p-address            inet:ip-address
                  |     +--ro p-multicast-group    inet:ip-address
                  +--:(bidir-pim-tree)
                  |  +--ro bidir-pim-tree
                  |     +--ro p-address            inet:ip-address
                  |     +--ro p-multicast-group    inet:ip-address
                  +--:(ingress-replication)
                  |  +--ro ingress-replication
                  |     +--ro receiving-endpoint-address?   inet:ip-address
                  +--:(mldp-mp2mp-lsp)
                     +--ro mldp-mp2mp-lsp
                        +--ro opaque-type             uint8
                        +--ro opaque-extended-type?   uint16
                        +--ro opaque
                  ...

Usage

The L2VPN EVPN table in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/odl-bgp-evpn:l2vpn-address-family/odl-bgp-evpn:evpn-subsequent-address-family/evpn-routes

Method: GET

Response Body:

<evpn-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-evpn">
   <evpn-route>
      <route-key>AxEAAcCoZAED6AAAAQAgwKhkAQ==</route-key>
      <route-distinguisher>192.168.100.1:1000</route-distinguisher>
      <inc-multi-ethernet-tag-res>
         <ethernet-tag-id>
            <vlan-id>256</vlan-id>
         </ethernet-tag-id>
         <orig-route-ip>192.168.100.1</orig-route-ip>
      </inc-multi-ethernet-tag-res>
      <attributes>
         <ipv4-next-hop>
            <global>172.23.29.104</global>
         </ipv4-next-hop>
         <as-path/>
         <origin>
            <value>igp</value>
         </origin>
         <extended-communities>
            <extended-communities>
                <transitive>true</transitive>
                <route-target-extended-community>
                    <global-administrator>65504</global-administrator>
                    <local-administrator>AAAD6A==</local-administrator>
                </route-target-extended-community>
            </extended-communities>
         </extended-communities>
         <pmsi-tunnel>
             <leaf-information-required>true</leaf-information-required>
             <mpls-label>20024</mpls-label>
             <ingress-replication>
                 <receiving-endpoint-address>192.168.100.1</receiving-endpoint-address>
             </ingress-replication>
         </pmsi-tunnel>
      </attributes>
   </evpn-route>
</evpn-routes>

Programming

This examples show how to originate and remove EVPN routes via programmable RIB. There are four different types of EVPN routes, and several extended communities. Routes can be used for variety of use-cases supported by BGP/MPLS EVPN, PBB EVPN and NVO EVPN. Make sure the Application Peer is configured first.

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/odl-bgp-evpn:l2vpn-address-family/odl-bgp-evpn:evpn-subsequent-address-family/odl-bgp-evpn:evpn-routes

Method: POST

Content-Type: application/xml

Request Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
<evpn-route xmlns="urn:opendaylight:params:xml:ns:yang:bgp-evpn">
    <route-key>evpn</route-key>
    <route-distinguisher>172.12.123.3:200</route-distinguisher>
    ....
    <attributes>
        <ipv4-next-hop>
            <global>199.20.166.41</global>
        </ipv4-next-hop>
        <as-path/>
        <origin>
            <value>igp</value>
        </origin>
        <extended-communities>
        ....
        </extended-communities>
    </attributes>
</evpn-route>

@line 3: Route Distinguisher (RD) - set to RD of the MAC-VRF advertising the NLRI, recommended format <IP>:<VLAN_ID>

@line 4: One of the EVPN route must be set here.

@line 14: In some cases, specific extended community presence is required. The route may carry one or more Route Target attributes.

EVPN Routes:

  • Ethernet AD per ESI
    <ethernet-a-d-route>
    <mpls-label>0</mpls-label>
    <ethernet-tag-id>
        <vlan-id>4294967295</vlan-id>
    </ethernet-tag-id>
    <arbitrary>
        <arbitrary>AAAAAAAAAAAA</arbitrary>
    </arbitrary>
</ethernet-a-d-route>
  • Ethernet AD per EVI
    <ethernet-a-d-route>
    <mpls-label>24001</mpls-label>
    <ethernet-tag-id>
        <vlan-id>2200</vlan-id>
    </ethernet-tag-id>
    <arbitrary>
        <arbitrary>AAAAAAAAAAAA</arbitrary>
    </arbitrary>
</ethernet-a-d-route>
  • MAC/IP Advertisement
    <mac-ip-adv-route>
    <arbitrary>
        <arbitrary>AAAAAAAAAAAA</arbitrary>
    </arbitrary>
    <ethernet-tag-id>
        <vlan-id>2100</vlan-id>
    </ethernet-tag-id>
    <mac-address>f2:0c:dd:80:9f:f7</mac-address>
    <ip-address>10.0.1.12</ip-address>
    <mpls-label1>299776</mpls-label1>
</mac-ip-adv-route>
  • Inclusive Multicast Ethernet Tag
    <inc-multi-ethernet-tag-res>
    <ethernet-tag-id>
        <vlan-id>2100</vlan-id>
    </ethernet-tag-id>
    <orig-route-ip>43.43.43.43</orig-route-ip>
</inc-multi-ethernet-tag-res>
  • Ethernet Segment
    <es-route>
    <orig-route-ip>43.43.43.43</orig-route-ip>
    <arbitrary>
        <arbitrary>AAAAAAAAAAAA</arbitrary>
    </arbitrary>
</es-route>

EVPN Ethernet Segment Identifier (ESI):

  • Type 0

    Indicates an arbitrary 9-octet ESI.

    <arbitrary>
    <arbitrary>AAAAAAAAAAAA</arbitrary>
</arbitrary>
  • Type 1

    IEEE 802.1AX LACP is used.

    <lacp-auto-generated>
    <ce-lacp-mac-address>f2:0c:dd:80:9f:f7</ce-lacp-mac-address>
    <ce-lacp-port-key>22</ce-lacp-port-key>
</lacp-auto-generated>
  • Type 2

    Indirectly connected hosts via a bridged LAN.

    <lan-auto-generated>
    <root-bridge-mac-address>f2:0c:dd:80:9f:f7</root-bridge-mac-address>
    <root-bridge-priority>20</root-bridge-priority>
</lan-auto-generated>
  • Type 3

    MAC-based ESI.

    <mac-auto-generated>
    <system-mac-address>f2:0c:dd:80:9f:f7</system-mac-address>
    <local-discriminator>2000</local-discriminator>
</mac-auto-generated>
  • Type 4

    Router-ID ESI

    <router-id-generated>
    <router-id>43.43.43.43</router-id>
    <local-discriminator>2000</local-discriminator>
</router-id-generated>
  • Type 5

    AS-based ESI

    <as-generated>
    <as>16843009</as>
    <local-discriminator>2000</local-discriminator>
</as-generated>

Extended Communities:

  • ESI Label Extended Community
    <extended-communities>
    <transitive>true</transitive>
    <esi-label-extended-community>
        <single-active-mode>false</single-active-mode>
        <esi-label>24001</esi-label>
    </esi-label-extended-community >
</extended-communities>
  • ES-Import Route Target
    <extended-communities>
    <transitive>true</transitive>
    <es-import-route-extended-community>
        <es-import>f2:0c:dd:80:9f:f7</es-import>
    </es-import-route-extended-community>
</extended-communities>
  • MAC Mobility Extended Community
    <extended-communities>
    <transitive>true</transitive>
    <mac-mobility-extended-community>
        <static>true</static>
        <seq-number>200</seq-number>
    </mac-mobility-extended-community>
</extended-communities>
  • Default Gateway Extended Community
    <extended-communities>
    <transitive>true</transitive>
    <default-gateway-extended-community>
    </default-gateway-extended-community>
</extended-communities>
  • EVPN Layer 2 attributes extended community
    <extended-communities>
    <transitive>false</transitive>
    <layer-2-attributes-extended-community>
        <primary-pe>true</primary-pe>
        <backup-pe>true</backup-pe>
        <control-word >true</control-word>
        <l2-mtu>200</l2-mtu>
    </layer-2-attributes-extended-community>
</extended-communities>
  • BGP Encapsulation extended community
    1
2
3
4
5
6
    <extended-communities>
    <transitive>false</transitive>
    <encapsulation-extended-community>
        <tunnel-type>vxlan</tunnel-type>
    </encapsulation-extended-community>
</extended-communities>

    @line 4: full list of tunnel types

  • P-Multicast Service Interface Tunnel (PMSI) attribute
    <pmsi-tunnel>
    <leaf-information-required>true</leaf-information-required>
    <mpls-label>20024</mpls-label>
    <ingress-replication>
        <receiving-endpoint-address>172.12.123.3</receiving-endpoint-address>
    </ingress-replication>
</pmsi-tunnel>

To remove the route added above, following request can be used:

URL: /restconf/config/bgp-rib:application-rib/10.25.1.9/tables/bgp-types:ipv4-address-family/odl-bgp-evpn:l2vpn-address-family/odl-bgp-evpn:evpn-subsequent-address-family/odl-bgp-evpn:evpn-routes/evpn-route/evpn

Method: DELETE

EVPN Routes Usage.
EVN Route Type Extended Communities Usage
Ethernet Auto-discovery ESI Label, BGP EncapsulationEVPN Layer 2 attributes Fast Convergence, Split Horizon, Aliasing
MAC/IP Advertisement BGP Encapsulation, MAC Mobility, Default Gateway MAC address reachability
Inclusive Multicast Ethernet Tag PMSI Tunnel, BGP Encapsulation Handling of Multi-destination traffic
Ethernet Segment BGP Encapsulation, ES-Import Route Target Designated Forwarder Election

Additional Path

The ADD-PATH capability allows to advertise multiple paths for the same address prefix. It can help with optimal routing and routing convergence in a network by providing potential alternate or backup paths.

Configuration

This section shows a way to enable ADD-PATH capability in BGP speaker and peer configuration.

Note

The capability is applicable for IP Unicast, IP Labeled Unicast and Flow Specification address families.

BGP Speaker

To enable ADD-PATH capability in BGP plugin, first configure BGP speaker instance:

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols

Method: POST

Content-Type: application/xml

Request Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
<protocol xmlns="http://openconfig.net/yang/network-instance">
    <name>bgp-example</name>
    <identifier xmlns:x="http://openconfig.net/yang/policy-types">x:BGP</identifier>
    <bgp xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
        <global>
            <config>
                <router-id>192.0.2.2</router-id>
                <as>65000</as>
            </config>
            <afi-safis>
                <afi-safi>
                    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
                    <receive>true</receive>
                    <send-max>2</send-max>
                </afi-safi>
            </afi-safis>
        </global>
    </bgp>
</protocol>

@line 14: Defines path selection strategy: send-max > 1 -> Advertise N Paths or send-max = 0 -> Advertise All Paths

Here is an example for update a specific family with enable ADD-PATH capability

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/global/afi-safis/afi-safi/openconfig-bgp-types:IPV4%2DUNICAST

Method: PUT

Content-Type: application/xml

Request Body:

<afi-safi xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
   <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
   <receive>true</receive>
   <send-max>0</send-max>
</afi-safi>

BGP Peer

Here is an example for BGP peer configuration with enabled ADD-PATH capability.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: POST

Content-Type: application/xml

Request Body:

<neighbor xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor-address>192.0.2.1</neighbor-address>
    <afi-safis>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-LABELLED-UNICAST</afi-safi-name>
        </afi-safi>
        <afi-safi>
            <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
            <receive>true</receive>
            <send-max>0</send-max>
        </afi-safi>
    </afi-safis>
</neighbor>

Note

The path selection strategy is not configurable on per peer basis. The send-max presence indicates a willingness to send ADD-PATH NLRIs to the neighbor.

Here is an example for update specific family BGP peer configuration with enabled ADD-PATH capability.

URL: /restconf/config/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/afi-safis/afi-safi/openconfig-bgp-types:IPV4%2DUNICAST

Method: PUT

Content-Type: application/xml

Request Body:

<afi-safi xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
   <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
   <receive>true</receive>
   <send-max>0</send-max>
</afi-safi>

Usage

The IPv4 Unicast table with enabled ADD-PATH capability in an instance of the speaker’s Loc-RIB can be verified via REST:

URL: /restconf/operational/bgp-rib:bgp-rib/rib/bgp-example/loc-rib/tables/bgp-types:ipv4-address-family/bgp-types:unicast-subsequent-address-family/ipv4-routes

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
<ipv4-routes xmlns="urn:opendaylight:params:xml:ns:yang:bgp-inet">
    <ipv4-route>
        <path-id>1</path-id>
        <prefix>193.0.2.1/32</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>10.0.0.1</global>
            </ipv4-next-hop>
        </attributes>
    </ipv4-route>
    <ipv4-route>
        <path-id>2</path-id>
        <prefix>193.0.2.1/32</prefix>
        <attributes>
            <as-path></as-path>
            <origin>
                <value>igp</value>
            </origin>
            <local-pref>
                <pref>100</pref>
            </local-pref>
            <ipv4-next-hop>
                <global>10.0.0.2</global>
            </ipv4-next-hop>
        </attributes>
    </ipv4-route>
</ipv4-routes>

@line 3: The routes with the same destination are distinguished by path-id attribute.

Route Refresh

The Route Refresh Capability allows to dynamically request a re-advertisement of the Adj-RIB-Out from a BGP peer. This is useful when the inbound routing policy for a peer changes and all prefixes from a peer must be reexamined against a new policy.

Configuration

The capability is enabled by default, no additional configuration is required.

Usage

To send a Route Refresh request from OpenDaylight BGP speaker instance to its neighbor, invoke RPC:

URL: /restconf/operations/bgp-peer-rpc:route-refresh-request

Method: POST

Content-Type: application/xml

Request Body:

<input xmlns="urn:opendaylight:params:xml:ns:yang:bgp-peer-rpc">
    <afi xmlns:types="urn:opendaylight:params:xml:ns:yang:bgp-types">types:ipv4-address-family</afi>
    <safi xmlns:types="urn:opendaylight:params:xml:ns:yang:bgp-types">types:unicast-subsequent-address-family</safi>
    <peer-ref xmlns:rib="urn:opendaylight:params:xml:ns:yang:bgp-rib">/rib:bgp-rib/rib:rib[rib:id="bgp-example"]/rib:peer[rib:peer-id="bgp://10.25.1.9"]</peer-ref>
</input>

Operational State

The OpenDaylight BGP implementation provides a set of APIs (described below), that give its operational state refreshed periodically, by default every 5 seconds. The following APIs describe what is available starting with how to change the default refresh rate.

Operational State Configuration

URL: /restconf/config/bgp-state-config:bgp-state-config

Method: PUT

Content-Type: application/xml

Request Body:

1
2
3
4
<bgp-state-config xmlns="urn:opendaylight:params:xml:ns:yang:controller:config">
    <config-name xmlns="urn:opendaylight:params:xml:ns:yang:bgp-state-config">operationalState</config-name>
    <timer xmlns="urn:opendaylight:params:xml:ns:yang:bgp-state-config">1</timer>
</bgp-state-config>

@line 3: Time in seconds between operational state update.

BGP RIB Operational State

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/global/state

Method: GET

Content-Type: application/xml

Response Body:

1
2
3
4
5
6
<state xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <as>65000</as>
    <router-id>192.0.2.2</router-id>
    <total-paths>0</total-paths>
    <total-prefixes>0</total-prefixes>
</state>

@line 2: AS number of the remote peer.

@line 3: The unique protocol instance identifier.

@line 4: Total number of Paths installed on RIB (Loc-RIB)

@line 5: Total number of Prefixes installed on RIB (Loc-RIB)

BGP RIB Families Operational State

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/global/afi-safis

Method: GET

Content-Type: application/xml

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
<afi-safis xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <afi-safi>
        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
        <state>
            <total-paths>0</total-paths>
            <total-prefixes>0</total-prefixes>
        </state>
    </afi-safi>
    <afi-safi>
        <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-UNICAST</afi-safi-name>
        <state>
            <total-paths>0</total-paths>
            <total-prefixes>0</total-prefixes>
        </state>
    </afi-safi>
    ....
</afi-safis>

@line 3: Family Identifier.

@line 5: Total number of Paths installed on RIB (Loc-RIB) per specific family.

@line 6: Total number of Prefixes installed on RIB (Loc-RIB) per specific family.

BGP Neighbors Operational State

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors

Method: GET

Content-Type: application/xml

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
<neighbors xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <neighbor>
        <neighbor-address>192.0.2.1</neighbor-address>
        .....
    </neighbor>
    <neighbor>
        <neighbor-address>192.0.2.2</neighbor-address>
        .....
    </neighbor>
</neighbors>

@line 3: IP address of the remote BGP peer. Also serves as an unique identifier of a neighbor in a list of neighbors.

BGP Neighbor Operational State

Note

Supported Capabilities only provided when session has been established.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbor/127.0.0.2/state

Method: GET

Content-Type: application/xml

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
<state xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <session-state>ESTABLISHED</session-state>
    <supported-capabilities xmlns:x="http://openconfig.net/yang/bgp-types">x:ASN32</supported-capabilities>
    <supported-capabilities xmlns:x="http://openconfig.net/yang/bgp-types">x:MPBGP</supported-capabilities>
    <messages>
        <sent>
            <UPDATE>0</UPDATE>
            <NOTIFICATION>0</NOTIFICATION>
        </sent>
        <received>
            <UPDATE>4</UPDATE>
            <NOTIFICATION>0</NOTIFICATION>
        </received>
    </messages>
</state>

@line 2: Session status

@line 3-4: BGP capabilities supported ( ASN32 / MPBGP / ROUTE_REFRESH / GRACEFUL_RESTART / ADD_PATHS)

@line 7: Total count of Update Messages sent

@line 8: Total count of Notification Messages sent

@line 11: Total count of Update Messages received

@line 12: Total count of Notification Messages received

BGP Neighbor Families Operational State

Note

Graceful Restart not supported yet. Planned for Carbon.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/afi-safis

Method: GET

Content-Type: application/xml

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<afi-safis xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
     <afi-safi>
         <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
         <state>
             <active>false</active>
         </state>
         <graceful-restart>
             <state>
                 <received>false</received>
                 <advertised>false</advertised>
             </state>
         </graceful-restart>
     </afi-safi>
     <afi-safi>
         <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV6-UNICAST</afi-safi-name>
         <state>
             <active>false</active>
         </state>
         <graceful-restart>
             <state>
                 <received>false</received>
                 <advertised>false</advertised>
             </state>
         </graceful-restart>
     </afi-safi>
</afi-safis>

@line 3: Family Identifier.

@line 5: True if family is advertized by peer.

@line 7: Graceful Restart Operational State per specific family.

@line 9: True if the peer supports graceful restart.

@line 10: True if we support graceful restart.

BGP Neighbor Family Operational State

Note

Prefixes state is only provided once session is established.

Note

Graceful Restart not supported yet. Planned to be implemented in Carbon.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/afi-safis/afi-safi/openconfig-bgp-types:IPV4%2DUNICAST

Method: GET

Content-Type: application/xml

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
<afi-safi xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <afi-safi-name xmlns:x="http://openconfig.net/yang/bgp-types">x:IPV4-UNICAST</afi-safi-name>
    <state>
        <active>true</active>
        <prefixes>
            <installed>3</installed>
            <sent>0</sent>
            <received>3</received>
        </prefixes>
    </state>
    <graceful-restart>
        <state>
            <received>false</received>
            <advertised>false</advertised>
        </state>
    </graceful-restart>
</afi-safi>

@line 2: Family Identifier.

@line 4: True if family is advertized to and by peer.

@line 6: Total count of prefixes advertized by peer and installed (effective-rib-in).

@line 7: Total count of prefixes advertized to peer (adj-rib-out).

@line 8: Total count of prefixes advertized by peer (adj-rib-in).

BGP Neighbor Timers Operational State

Note

State is only provided once session is established.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/timers

Method: GET

Content-Type: application/xml

Response Body:

1
2
3
4
5
6
<timers xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <state>
        <negotiated-hold-time>180</negotiated-hold-time>
        <uptime>1580676</uptime>
    </state>
</timers>

@line 3: The negotiated hold-time for the BGP session in seconds.

@line 4: Session duration since establishment in milliseconds.

BGP Neighbor Transport Operational State

Note

State is only provided once session is established.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/transport

Method: GET

Content-Type: application/xml

Response Body:

1
2
3
4
5
6
7
<transport xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <state>
        <remote-address>127.0.0.2</remote-address>
        <remote-port>44718</remote-port>
        <local-port>1790</local-port>
    </state>
</transport>

@line 3: IP address of the remote BGP peer.

@line 4: Port of the remote BGP peer.

@line 5: Local port.

BGP Neighbor Error Handling Operational State

Note

State is only provided once session is established.

Note

Error handling not supported yet. Planned for Carbon.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/error-handling

Method: GET

Content-Type: application/xml

Response Body:

1
2
3
4
5
<error-handling xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <state>
        <erroneous-update-messages>0</erroneous-update-messages>
    </state>
</error-handling>

@line 3: The number of BGP UPDATE messages for which the treat-as-withdraw mechanism has been applied based on erroneous message contents

BGP Neighbor Graceful Restart Operational State

Note

Graceful Restart not supported yet. Planned for Carbon.

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/bgp/neighbors/neighbor/192.0.2.1/graceful-restart

Method: GET

Content-Type: application/xml

Response Body:

1
2
3
4
5
6
7
<graceful-restart xmlns="urn:opendaylight:params:xml:ns:yang:bgp:openconfig-extensions">
    <state>
        <peer-restart-time>0</peer-restart-time>
        <peer-restarting>false</peer-restarting>
        <local-restarting>false</local-restarting>
    </state>
</graceful-restart>

@line 3: The period of time (advertised by the peer) that the peer expects a restart of a BGP session to take.

@line 4: This flag indicates whether the remote neighbor is currently in the process of restarting, and hence received routes are currently stale.

@line 5: This flag indicates whether the local neighbor is currently restarting. The flag is unset after all NLRI have been advertised to the peer, and the End-of-RIB (EOR) marker has been unset.

BGP Peer Groups Operational State

URL: /restconf/operational/openconfig-network-instance:network-instances/network-instance/global-bgp/openconfig-network-instance:protocols/protocol/openconfig-policy-types:BGP/bgp-example/peer-groups

Method: GET

Content-Type: application/xml

Response Body:

1
2
3
4
5
6
7
8
<peer-groups>
    <peer-group>
        <peer-group-name>application-peers</peer-group-name>
        <state>
            <total-paths>0</total-paths>
            <total-prefixes>0</total-prefixes>
        </state>
</peer-group>

@line 3: Peer Group Identifier.

@line 5: At this moment the cost for count path under effect-rib-in is to high. Therefore the value is the same as total prefixes.

@line 6: Total Prefixes installed under by peers pertaining to this peer group (effective-rib-in). This count doesn’t differentiate repeated prefixes.

High Availability

Running OpenDaylight BGP in clustered environment brings an advantage of the plugin’s high availability (HA). This section illustrates a basic scenario for HA, also presents a configuration for clustered OpenDaylight BGP.

Configuration

Following example shows a configuration for running BGP in clustered environment.

  1. As the first step, configure (replicated deafult shard and topology shard if needed) and run OpenDaylight in clustered environment, install BGP and RESTCONF.
  2. On one node (OpenDaylight instance), configure BGP speaker instance and neighbor. In addition, configure BGP topology exporter if required. The configuration is shared across all interconnected cluster nodes, however BGP become active only on one node. Other nodes with configured BGP serves as stand-by backups.
  3. Remote peer should be configured to accept/initiate connection from/to all OpenDaylight cluster nodes with configured BGP plugin.
  4. Connect remote peer, let it advertise some routes. Verify routes presence in Loc-RIB and/or BGP topology exporter instance on all nodes of the OpenDaylight cluster.

Warning

Replicating RIBs across the cluster nodes is causing severe scalability issue and overall performance degradation. To avoid this problems, configure BGP RIB module as a separate shard without enabled replication. Change configuration on all nodes as following (configuration/initial):

  • In modules.conf add a new module:
    {
    name = "bgp_rib"
    namespace = "urn:opendaylight:params:xml:ns:yang:bgp-rib"
    shard-strategy = "module"
}
  • In module-shards.conf define a new module shard:
    {
    name = "bgp_rib"
    shards = [
        {
            name="bgp_rib"
            replicas = [
                "member-1"
            ]
        }
    ]
}

Note: Use correct member name in module shard configuration.

Failover scenario

Following section presents a basic BGP speaker failover scenario on 3-node OpenDaylight cluster setup.

BGP HA setup.

Once the OpenDaylight BGP is configured, the speaker become active on one of the cluster nodes. Remote peer can establish connection with this BGP instance. Routes advertised by remote peer are replicated, hence RIBs state on all nodes is the same.

Node went down.

In a case a cluster node, where BGP instance is running, goes down (unexpected failure, restart), active BGP session is dropped.

BGP recovery.

Now, one of the stand-by BGP speaker instances become active. Remote peer establishes new connection and advertises routes again.

Topology Provider

This section provides an overview of the BGP topology provider service. It shows how to configure and use all available BGP topology providers. Providers are building topology view of BGP routes stored in local BGP speaker’s Loc-RIB. Output topologies are rendered in a form of standardised IETF network topology model.

Inet Reachability Topology

Inet reachability topology exporter offers a mapping service from IPv4/6 routes to network topology nodes.

Configuration

Following example shows how to create a new instance of IPv4 BGP topology exporter:

URL: /restconf/config/network-topology:network-topology

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
6
7
<topology xmlns="urn:TBD:params:xml:ns:yang:network-topology">
    <topology-id>bgp-example-ipv4-topology</topology-id>
    <topology-types>
        <bgp-ipv4-reachability-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"></bgp-ipv4-reachability-topology>
    </topology-types>
    <rib-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-config">bgp-example</rib-id>
</topology>

@line 2: An identifier for a topology.

@line 4: Used to identify type of the topology. In this case BGP IPv4 reachability topology.

@line 6: A name of the local BGP speaker instance.

The topology exporter instance can be removed in a following way:

URL: /restconf/config/network-topology:network-topology/topology/bgp-example-ipv4-topology

Method: DELETE

Following example shows how to create a new instance of IPv6 BGP topology exporter:

URL: /restconf/config/network-topology:network-topology

Method: POST

Content-Type: application/xml

Request Body:

<topology xmlns="urn:TBD:params:xml:ns:yang:network-topology">
    <topology-id>bgp-example-ipv6-topology</topology-id>
    <topology-types>
        <bgp-ipv6-reachability-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"></bgp-ipv6-reachability-topology>
    </topology-types>
    <rib-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-config">bgp-example</rib-id>
</topology>

Usage

Operational state of the topology can be verified via REST:

URL: /restconf/operational/network-topology:network-topology/topology/bgp-example-ipv4-topology

Method: GET

Response Body:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
<topology xmlns="urn:TBD:params:xml:ns:yang:network-topology">
    <topology-id>bgp-example-ipv4-topology</topology-id>
    <server-provided>true</server-provided>
    <topology-types>
        <bgp-ipv4-reachability-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"></bgp-ipv4-reachability-topology>
    </topology-types>
    <node>
        <node-id>10.10.1.1</node-id>
        <igp-node-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology">
            <prefix>
                <prefix>10.0.0.10/32</prefix>
            </prefix>
        </igp-node-attributes>
    </node>
</topology>

@line 8: The identifier of a node in a topology. Its value is mapped from route’s NEXT_HOP attribute.

@line 11: The IP prefix attribute of the node. Its value is mapped from routes’s destination IP prefix.

BGP Linkstate Topology

BGP linkstate topology exporter offers a mapping service from BGP-LS routes to network topology nodes and links.

Configuration

Following example shows how to create a new instance of linkstate BGP topology exporter:

URL: /restconf/config/network-topology:network-topology

Method: POST

Content-Type: application/xml

Request Body:

<topology  xmlns="urn:TBD:params:xml:ns:yang:network-topology">
    <topology-id>bgp-example-linkstate-topology</topology-id>
    <topology-types>
        <bgp-linkstate-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"></bgp-linkstate-topology>
    </topology-types>
    <rib-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-config">bgp-example</rib-id>
</topology>

Usage

Operational state of the topology can be verified via REST. A sample output below represents a two node topology with two unidirectional links interconnecting those nodes.

URL: /restconf/operational/network-topology:network-topology/topology/bgp-example-linkstate-topology

Method: GET

Response Body:

<topology xmlns="urn:TBD:params:xml:ns:yang:network-topology">
    <topology-id>bgp-example-linkstate-topology</topology-id>
    <server-provided>true</server-provided>
    <topology-types>
        <bgp-linkstate-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"></bgp-linkstate-topology>
    </topology-types>
    <node>
        <node-id>bgpls://IsisLevel2:1/type=node&amp;as=65000&amp;domain=673720360&amp;router=0000.0000.0040</node-id>
        <termination-point>
            <tp-id>bgpls://IsisLevel2:1/type=tp&amp;ipv4=203.20.160.40</tp-id>
            <igp-termination-point-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology"/>
        </termination-point>
        <igp-node-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology">
            <prefix>
                <prefix>40.40.40.40/32</prefix>
                <metric>10</metric>
            </prefix>
            <prefix>
                <prefix>203.20.160.0/24</prefix>
                <metric>10</metric>
            </prefix>
            <name>node1</name>
            <router-id>40.40.40.40</router-id>
            <isis-node-attributes xmlns="urn:TBD:params:xml:ns:yang:network:isis-topology">
                <ted>
                    <te-router-id-ipv4>40.40.40.40</te-router-id-ipv4>
                </ted>
                <iso>
                    <iso-system-id>MDAwMDAwMDAwMDY0</iso-system-id>
                </iso>
            </isis-node-attributes>
        </igp-node-attributes>
    </node>
    <node>
        <node-id>bgpls://IsisLevel2:1/type=node&amp;as=65000&amp;domain=673720360&amp;router=0000.0000.0039</node-id>
        <termination-point>
            <tp-id>bgpls://IsisLevel2:1/type=tp&amp;ipv4=203.20.160.39</tp-id>
            <igp-termination-point-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology"/>
        </termination-point>
        <igp-node-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology">
            <prefix>
                <prefix>39.39.39.39/32</prefix>
                <metric>10</metric>
            </prefix>
            <prefix>
                <prefix>203.20.160.0/24</prefix>
                <metric>10</metric>
            </prefix>
            <name>node2</name>
            <router-id>39.39.39.39</router-id>
            <isis-node-attributes xmlns="urn:TBD:params:xml:ns:yang:network:isis-topology">
                <ted>
                    <te-router-id-ipv4>39.39.39.39</te-router-id-ipv4>
                </ted>
                <iso>
                    <iso-system-id>MDAwMDAwMDAwMDg3</iso-system-id>
                </iso>
            </isis-node-attributes>
        </igp-node-attributes>
    </node>
    <link>
        <destination>
            <dest-node>bgpls://IsisLevel2:1/type=node&amp;as=65000&amp;domain=673720360&amp;router=0000.0000.0039</dest-node>
            <dest-tp>bgpls://IsisLevel2:1/type=tp&amp;ipv4=203.20.160.39</dest-tp>
        </destination>
        <link-id>bgpls://IsisLevel2:1/type=link&amp;local-as=65000&amp;local-domain=673720360&amp;local-router=0000.0000.0040&amp;remote-as=65000&amp;remote-domain=673720360&amp;remote-router=0000.0000.0039&amp;ipv4-iface=203.20.160.40&amp;ipv4-neigh=203.20.160.39</link-id>
        <source>
            <source-node>bgpls://IsisLevel2:1/type=node&amp;as=65000&amp;domain=673720360&amp;router=0000.0000.0040</source-node>
            <source-tp>bgpls://IsisLevel2:1/type=tp&amp;ipv4=203.20.160.40</source-tp>
        </source>
        <igp-link-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology">
            <metric>10</metric>
            <isis-link-attributes xmlns="urn:TBD:params:xml:ns:yang:network:isis-topology">
                <ted>
                    <color>0</color>
                    <max-link-bandwidth>1250000.0</max-link-bandwidth>
                    <max-resv-link-bandwidth>12500.0</max-resv-link-bandwidth>
                    <te-default-metric>0</te-default-metric>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>0</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>1</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>2</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>3</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>4</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>5</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>6</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>7</priority>
                    </unreserved-bandwidth>
                </ted>
            </isis-link-attributes>
        </igp-link-attributes>
    </link>
    <link>
        <destination>
            <dest-node>bgpls://IsisLevel2:1/type=node&amp;as=65000&amp;domain=673720360&amp;router=0000.0000.0040</dest-node>
            <dest-tp>bgpls://IsisLevel2:1/type=tp&amp;ipv4=203.20.160.40</dest-tp>
        </destination>
        <link-id>bgpls://IsisLevel2:1/type=link&amp;local-as=65000&amp;local-domain=673720360&amp;local-router=0000.0000.0039&amp;remote-as=65000&amp;remote-domain=673720360&amp;remote-router=0000.0000.0040&amp;ipv4-iface=203.20.160.39&amp;ipv4-neigh=203.20.160.40</link-id>
        <source>
            <source-node>bgpls://IsisLevel2:1/type=node&amp;as=65000&amp;domain=673720360&amp;router=0000.0000.0039</source-node>
            <source-tp>bgpls://IsisLevel2:1/type=tp&amp;ipv4=203.20.160.39</source-tp>
        </source>
        <igp-link-attributes xmlns="urn:TBD:params:xml:ns:yang:nt:l3-unicast-igp-topology">
            <metric>10</metric>
            <isis-link-attributes xmlns="urn:TBD:params:xml:ns:yang:network:isis-topology">
                <ted>
                    <color>0</color>
                    <max-link-bandwidth>1250000.0</max-link-bandwidth>
                    <max-resv-link-bandwidth>12500.0</max-resv-link-bandwidth>
                    <te-default-metric>0</te-default-metric>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>0</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>1</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>2</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>3</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>4</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>5</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>6</priority>
                    </unreserved-bandwidth>
                    <unreserved-bandwidth>
                        <bandwidth>12500.0</bandwidth>
                        <priority>7</priority>
                    </unreserved-bandwidth>
                </ted>
            </isis-link-attributes>
        </igp-link-attributes>
    </link>
</topology>

BGP Network Topology Configuration Loader

BGP Network Topology Configuration Loader allows user to define static initial configuration for a BGP protocol instance. This service will detect the creation of new configuration files following the pattern “network-topology-*.xml” under the path “etc/opendaylight/bgp”. Once the file is processed, the defined configuration will be available from the configuration Data Store.

Note

If the BGP topology instance is already present, no update or configuration will be applied.

When installing BGP an example will be provided and a default configuration loaded.

PATH: etc/opendaylight/bgp/network-topology-config.xml

<network-topology xmlns="urn:TBD:params:xml:ns:yang:network-topology">
    <topology>
        <topology-id>example-ipv4-topology</topology-id>
        <topology-types>
            <bgp-ipv4-reachability-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"/>
        </topology-types>
        <rib-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-config">example-bgp-rib</rib-id>
    </topology>
    <topology>
        <topology-id>example-ipv6-topology</topology-id>
        <topology-types>
            <bgp-ipv6-reachability-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"/>
        </topology-types>
        <rib-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-config">example-bgp-rib</rib-id>
    </topology>
    <topology>
        <topology-id>example-linkstate-topology</topology-id>
        <topology-types>
            <bgp-linkstate-topology xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-types"/>
        </topology-types>
        <rib-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-topology-config">example-bgp-rib</rib-id>
    </topology>
</network-topology>

Test Tools

BGP test tools serves to test basic BGP functionality, scalability and performance.

BGP Test Tool

The BGP Test Tool is a stand-alone Java application purposed to simulate remote BGP peers, that are capable to advertise sample routes. This application is not part of the OpenDaylight Karaf distribution, however it can be downloaded from OpenDaylight’s Nexus (use latest release version):

https://nexus.opendaylight.org/content/repositories/opendaylight.release/org/opendaylight/bgpcep/bgp-testtool

Usage

The application can be run from command line:

java -jar bgp-testtool-*-executable.jar

with optional input parameters:

-i <BOOLEAN>, --active <BOOLEAN>
   Active initialisation of the connection, by default false.

-ho <N>, --holdtimer <N>
   In seconds, value of the desired holdtimer, by default 90.

-sc <N>, --speakersCount <N>
   Number of simulated BGP speakers, when creating each speaker, uses incremented local-address for binding, by default 0.

-ra <IP_ADDRESS:PORT,...>, --remoteAddress <IP_ADDRESS:PORT,...>
   A list of IP addresses of remote BGP peers, that the tool can accept or initiate connect to that address (based on the mode), by default 192.0.2.2:1790.

-la <IP_ADDRESS:PORT>, --localAddress <IP_ADDRESS:PORT>
   IP address of BGP speakers which the tools simulates, by default 192.0.2.2:0.

-pr <N>, --prefixes <N>
   Number of prefixes to be advertised by each simulated speaker

-mp <BOOLEAN>, --multiPathSupport <BOOLEAN>
   Active ADD-PATH support, by default false.

-as <N>, --as <N>
   Local AS Number, by default 64496.

-ec <EXTENDED_COMMUNITIES>, --extended_communities <EXTENDED_COMMUNITIES>
   Extended communities to be send. Format: x,x,x  where  x  is  each  extended  community from bgp-types.yang, by default empty.

-ll <LOG_LEVEL>, --log_level <LOG_LEVEL>
   Log level for console output, by default INFO.

BGP Application Peer Benchmark

It is a simple OpenDaylight application which is capable to inject and remove specific amount of IPv4 routes. This application is part of the OpenDaylight Karaf distribution.

Configuration

As a first step install BGP and RESTCONF, then configure Application Peer. Install odl-bgpcep-bgp-benchmark feature and reconfigure BGP Application Peer Benchmark application as per following:

URL: /restconf/config/odl-bgp-app-peer-benchmark-config:config

Method: PUT

Content-Type: application/xml

Request Body:

1
2
3
<odl-bgp-app-peer-benchmark-config xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-app-peer-benchmark-config">
   <app-peer-id xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-app-peer-benchmark-config">10.25.1.9</app-peer-id>
</odl-bgp-app-peer-benchmark-config>

@line 2: The Application Peer identifier.

Inject routes

Routes injection can be invoked via RPC:

URL: /restconf/operations/odl-bgp-app-peer-benchmark:add-prefix

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
6
<input xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-app-peer-benchmark">
    <prefix>1.1.1.1/32</prefix>
    <count>100000</count>
    <batchsize>2000</batchsize>
    <nexthop>192.0.2.2</nexthop>
</input>

@line 2: A initial IPv4 prefix carried in route. Value is incremented for following routes.

@line 3: An amount of routes to be added to Application Peer’s programmable RIB.

@line 4: A size of the transaction batch.

@line 5: A NEXT_HOP attribute value used in all injected routes.

Response Body:

1
2
3
4
5
6
7
<output xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-app-peer-benchmark">
    <result>
        <duration>4301</duration>
        <rate>25000</rate>
        <count>100000</count>
    </result>
</output>

@line 3: Request duration in milliseconds.

@line 4: Writes per second rate.

@line 5: An amount of routes added to Application Peer’s programmable RIB.

Remove routes

Routes deletion can be invoked via RPC:

URL: /restconf/operations/odl-bgp-app-peer-benchmark:delete-prefix

Method: POST

Content-Type: application/xml

Request Body:

1
2
3
4
5
<input xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-app-peer-benchmark">
    <prefix>1.1.1.1/32</prefix>
    <count>100000</count>
    <batchsize>2000</batchsize>
</input>

@line 2: A initial IPv4 prefix carried in route to be removed. Value is incremented for following routes.

@line 3: An amount of routes to be removed from Application Peer’s programmable RIB.

@line 4: A size of the transaction batch.

Response Body:

<output xmlns="urn:opendaylight:params:xml:ns:yang:odl-bgp-app-peer-benchmark">
    <result>
        <duration>1837</duration>
        <rate>54500</rate>
        <count>100000</count>
    </result>
</output>

Troubleshooting

This section offers advices in a case OpenDaylight BGP plugin is not working as expected.

BGP is not working...

  • First of all, ensure that all required features are installed, local and remote BGP configuration is correct.
  • Check OpenDaylight Karaf logs:

From Karaf console:

log:tail

or open log file: data/log/karaf.log

Possibly, a reason/hint for a cause of the problem can be found there.

  • Try to minimise effect of other OpenDaylight features, when searching for a reason of the problem.
  • Try to set DEBUG severity level for BGP logger via Karaf console commands, in order to collect more information:
log:set DEBUG org.opendaylight.protocol.bgp

log:set DEBUG org.opendaylight.bgpcep.bgp

Bug reporting

Before you report a bug, check BGPCEP Bugzilla to ensure same/similar bug is not already filed there.

Write an e-mail to bgpcep-users@lists.opendaylight.org and provide following information:

  1. State OpenDaylight version
  2. Describe your use-case and provide as much details related to BGP as possible
  3. Steps to reproduce
  4. Attach Karaf log files, optionally packet captures, REST input/output
