We propose a southbound plugin that can control the off-the-shelf commodity Ethernet switches for the purpose of building SDN using Ethernet switches. For Ethernet switches, forwarding table, VLAN table, and ACL are where one can install flow configuration on, and this is done via SNMP and CLI in the proposed plugin. In addition, some settings required for Ethernet switches in SDN, e.g., disabling STP and flooding, are proposed.

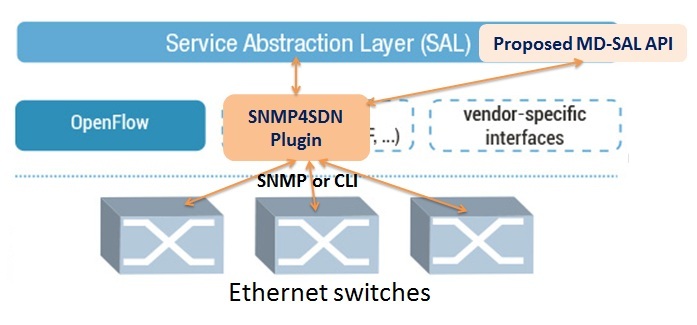

The modules in the plugin are depicted as the following figure.
In terms of the architecture of the SNMP4SDN Plugin’s features, the features include flow configuration, topology discovery, and multi-vendor support. Their architectures please refer to Wiki (Developer Guide - Design).
SNMP4SDN Plugin exposes APIs via MD-SAL with YANG model. The methods (RPC call) and data structures for them are listed below.
