The Open vSwitch database (OVSDB) Southbound Plugin component for OpenDaylight implements the OVSDB RFC 7047 management protocol that allows the southbound configuration of switches that support OVSDB. The component comprises a library and a plugin. The OVSDB protocol uses JSON-RPC calls to manipulate a physical or virtual switch that supports OVSDB. Many vendors support OVSDB on various hardware platforms. The OpenDaylight controller uses the library project to interact with an OVS instance.
Note
Read the OVSDB User Guide before you begin development.
OpenVSwitch (OVS) is generally accepted as the unofficial standard for Virtual Switching in the Open hypervisor based solutions. Every other Virtual Switch implementation, properietery or otherwise, uses OVS in some form. For information on OVS, see Open vSwitch.
In Software Defined Networking (SDN), controllers and applications interact using two channels: OpenFlow and OVSDB. OpenFlow addresses the forwarding-side of the OVS functionality. OVSDB, on the other hand, addresses the management-plane. A simple and concise overview of Open Virtual Switch Database(OVSDB) is available at: http://networkstatic.net/getting-started-ovsdb/
The OpenDaylight controller platform is designed as a highly modular and plugin based middleware that serves various network applications in a variety of use-cases. The modularity is achieved through the Java OSGi framework. The controller consists of many Java OSGi bundles that work together to provide the required controller functionalities.
Each layer of the Controller architecture performs specified tasks, and hence aids in modularity. While the Northbound API layer addresses all the REST-Based application needs, the SAL layer takes care of abstracting the SouthBound plugin protocol specifics from the Network Service functions.
Each of the SouthBound Plugins serves a different purpose, with some overlapping. For example, the OpenFlow plugin might serve the Data-Plane needs of an OVS element, while the OVSDB plugin can serve the management plane needs of the same OVS element. As the OpenFlow Plugin talks OpenFlow protocol with the OVS element, the OVSDB plugin will use OVSDB schema over JSON-RPC transport.
The above definition, and more information on Network Configuration Services, is available at : https://wiki.opendaylight.org/view/OpenDaylight_Controller:NetworkConfigurationServices
The OVSDB plugin implements a Bidirectional JSON-RPC library. It is easy to design the library as a module that manages the Netty connection towards the Element.
The OVSDB Schema definitions and Object Mapping layer sits above the JSON-RPC library. It maps the generic JSON objects to OVSDB schema POJOs (Plain Old Java Object) and vice-versa. This layer mostly provides the Java Object definition for the corresponding OVSDB schema (13 of them) and also will provide much more friendly API abstractions on top of these object data. This helps in hiding the JSON semantics from the functional modules such as Configuration Service and Tunnel management.

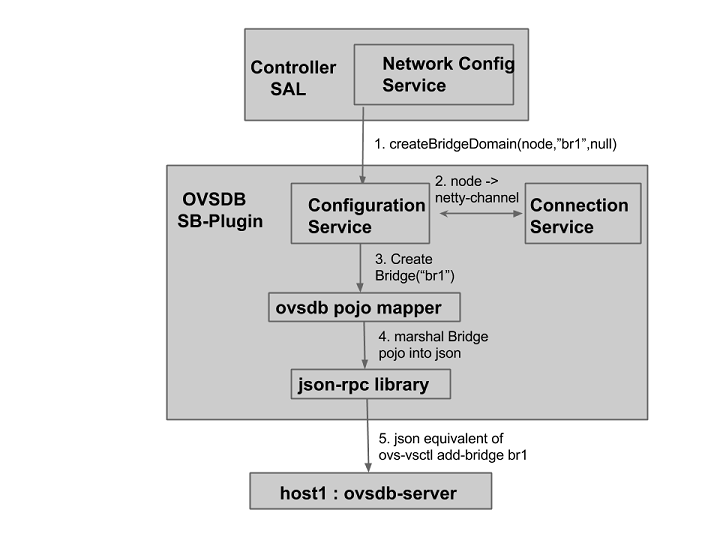

Request messages are mapped by its “method”

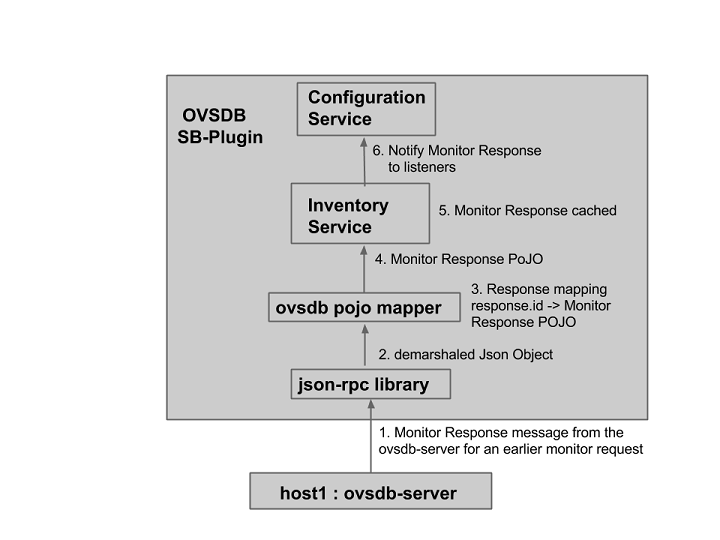

Network Virtualization using OVS is achieved through Overlay Tunnels. The actual Type of the Tunnel may be GRE, VXLAN, or STT. The differences in the encapsulation and configuration decide the tunnel types. Establishing a tunnel using configuration service requires just the sending of OVSDB messages towards the ovsdb-server. However, the scaling issues that would arise on the state management at the data-plane (using OpenFlow) can get challenging. Also, this module can assist in various optimizations in the presence of Gateways. It can also help in providing Service guarantees for the VMs using these overlays with the help of underlay orchestration.
{OVSDB_NODE + BRIDGE_IDENTFIER} <---> {OF_NODE}.
Without such mapping, it would be extremely difficult for the applications to manage and maintain such nodes. This Mapping Service provided by the OVSDB plugin would essentially help in providing more value added services to the orchestration layers that sit atop the Northbound APIs (such as OpenStack).
The OVS connection is a node which can have multiple databases. Each database is represented by a schema. A single connection can have multiple schemas. OSVDB supports multiple schemas. Currently, these are two schemas available in the OVSDB, but there is no restriction on the number of schemas. Owing to the Northbound v3 API, no code changes in ODL are needed for supporting additional schemas.
The OVSDB library manages the Netty connections to network nodes and handles bidirectional JSON-RPC messages. It not only provides OVSDB protocol functionality to OpenDaylight OVSDB plugin but also can be used as standalone JAVA library for OVSDB protocol.
The main responsibilities of OVSDB library include:
The OVSDB library provides connection management through the OvsdbConnection interface. The OvsdbConnection interface provides OVSDB connection management APIs which include both active and passive connections. From the library perspective, active OVSDB connections are initiated from the controller to OVS nodes while passive OVSDB connections are initiated from OVS nodes to the controller. In the active connection scenario an application needs to provide the IP address and listening port of OVS nodes to the library management API. On the other hand, the library management API only requires the info of the controller listening port in the passive connection scenario.
For a passive connection scenario, the library also provides a connection event listener through the OvsdbConnectionListener interface. The listener interface has connected() and disconnected() methods to notify an application when a new passive connection is established or an existing connection is terminated.
In addition to a regular TCP connection, the OvsdbConnection interface also provides a connection management API for an SSL connection. To start an OVSDB connection with SSL, an application will need to provide a Java SSLContext object to the management API. There are different ways to create a Java SSLContext, but in most cases a Java KeyStore with certificate and private key provided by the application is required. Detailed steps about how to create a Java SSLContext is out of the scope of this document and can be found in the Java documentation for JAVA Class SSlContext.
In the active connection scenario, the library uses the given SSLContext to create a Java SSLEngine and configures the SSL engine with the client mode for SSL handshaking. Normally clients are not required to authenticate themselves.
In the passive connection scenario, the library uses the given SSLContext to create a Java SSLEngine which will operate in server mode for SSL handshaking. For security reasons, the SSLv3 protocol and some cipher suites are disabled. Currently the OVSDB server only supports the TLS_RSA_WITH_AES_128_CBC_SHA cipher suite and the following protocols: SSLv2Hello, TLSv1, TLSv1.1, TLSv1.2.
The SSL engine is also configured to operate on two-way authentication
mode for passive connection scenarios, i.e., the OVSDB server
(controller) will authenticate clients (OVS nodes) and clients (OVS
nodes) are also required to authenticate the server (controller). In the
two-way authentication mode, an application should keep a trust manager
to store the certificates of trusted clients and initialize a Java
SSLContext with this trust manager. Thus during the SSL handshaking
process the OVSDB server (controller) can use the trust manager to
verify clients and only accept connection requests from trusted clients.
On the other hand, users should also configure OVS nodes to authenticate
the controller. Open vSwitch already supports this functionality in the
ovsdb-server command with option --ca-cert=cacert.pem
and
--bootstrap-ca-cert=cacert.pem
. On the OVS node, a user can use the
option --ca-cert=cacert.pem
to specify a controller certificate
directly and the node will only allow connections to the controller with
the specified certificate. If the OVS node runs ovsdb-server with option
--bootstrap-ca-cert=cacert.pem
, it will authenticate the controller
with the specified certificate cacert.pem. If the certificate file
doesn’t exist, it will attempt to obtain a certificate from the peer
(controller) on its first SSL connection and save it to the named PEM
file cacert.pem
. Here is an example of ovsdb-server with
--bootstrap-ca-cert=cacert.pem
option:
ovsdb-server --pidfile --detach --log-file --remote punix:/var/run/openvswitch/db.sock --remote=db:hardware_vtep,Global,managers --private-key=/etc/openvswitch/ovsclient-privkey.pem -- certificate=/etc/openvswitch/ovsclient-cert.pem --bootstrap-ca-cert=/etc/openvswitch/vswitchd.cacert
The OVSDB protocol defines the RPC transaction methods in RFC 7047. The following RPC methods are supported in OVSDB protocol:
According to RFC 7047, an OVSDB server must implement all methods, and an OVSDB client is only required to implement the “Echo” method and otherwise free to implement whichever methods suit its needs. However, the OVSDB library currently doesn’t support all RPC methods. For the “Echo” method, the library can handle “Echo” messages from a peer and send a JSON response message back, but the library doesn’t support actively sending an “Echo” JSON request to a peer. Other unsupported RPC methods are listed below:
In the OVSDB library the RPC methods are defined in the Java interface OvsdbRPC. The library also provides a high-level interface OvsdbClient as the main interface to interact with peers through the OVSDB protocol. In the passive connection scenario, each connection will have a corresponding OvsdbClient object, and the application can obtain the OvsdbClient object through connection listener callback methods. In other words, if the application implements the OvsdbConnectionListener interface, it will get notifications of connection status changes with the corresponding OvsdbClient object of that connection.
RFC 7047 also defines database operations, such as insert, delete, and update, to be performed as part of a “transact” RPC request. The OVSDB library defines the data operations in Operations.java and provides the TransactionBuilder class to help build “transact” RPC requests. To build a JSON-RPC transact request message, the application can obtain the TransactionBuilder object through a transactBuilder() method in the OvsdbClient interface.
The TransactionBuilder class provides the following methods to help build transactions:
If the application wants to build and send a “transact” RPC request to modify OVSDB tables on a peer, it can take the following steps:
Statically import parameter “op” in Operations.java
import static org.opendaylight.ovsdb.lib.operations.Operations.op;
Obtain transaction builder through transacBuilder() method in OvsdbClient:
TransactionBuilder transactionBuilder = ovsdbClient.transactionBuilder(dbSchema);
Add operations to transaction builder:
transactionBuilder.add(op.insert(schema, row));
Send transaction to peer and get JSON RPC response:
operationResults = transactionBuilder.execute().get();
Note
Although the “select” operation is supported in the OVSDB library, the library implementation is a little different from RFC 7047. In RFC 7047, section 5.2.2 describes the “select” operation as follows:
“The “rows” member of the result is an array of objects. Each object corresponds to a matching row, with each column specified in “columns” as a member, the column’s name as the member name, and its value as the member value. If “columns” is not specified, all the table’s columns are included (including the internally generated “_uuid” and “_version” columns).”
The OVSDB library implementation always requires the column’s name in the “columns” field of a JSON message. If the “columns” field is not specified, none of the table’s columns are included. If the application wants to get the table entry with all columns, it needs to specify all the columns’ names in the “columns” field.
RFC 7047 The Open vSwitch Databse Management Protocol https://tools.ietf.org/html/rfc7047
The Open vSwitch Database (OVSDB) Model Driven Service Abstraction Layer (MD-SAL) Southbound Plugin provides an MD-SAL based interface to Open vSwitch systems. This is done by augmenting the MD-SAL topology node with a YANG model which replicates some (but not all) of the Open vSwitch schema.
The architecture and operation of the OVSDB MD-SAL Southbound plugin is illustrated in the following set of diagrams.
An OVSDB node is a system which is running the OVS software and is capable of being managed by an OVSDB manager. The OVSDB MD-SAL Southbound plugin in OpenDaylight is capable of operating as an OVSDB manager. Depending on the configuration of the OVSDB node, the connection of the OVSDB manager can be active or passive.
An active OVSDB node manager connection is made when OpenDaylight initiates the connection to the OVSDB node. In order for this to work, you must configure the OVSDB node to listen on a TCP port for the connection (i.e. OpenDaylight is active and the OVSDB node is passive). This option can be configured on the OVSDB node using the following command:
ovs-vsctl set-manager ptcp:6640
The following diagram illustrates the sequence of events which occur when OpenDaylight initiates an active OVSDB manager connection to an OVSDB node.
A passive OVSDB node connection to OpenDaylight is made when the OVSDB node initiates the connection to OpenDaylight. In order for this to work, you must configure the OVSDB node to connect to the IP address and OVSDB port on which OpenDaylight is listening. This option can be configured on the OVSDB node using the following command:
ovs-vsctl set-manager tcp:<IP address>:6640

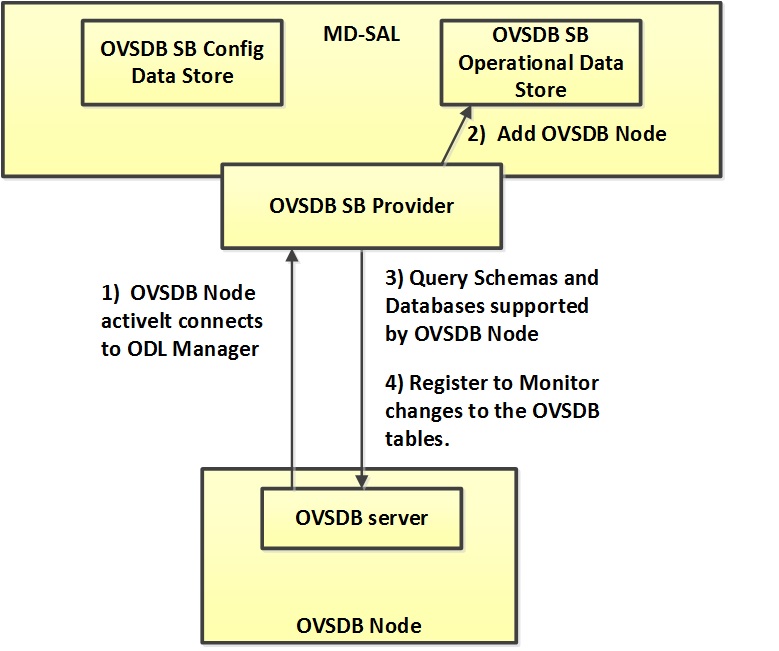

The following diagram illustrates the sequence of events which occur when an OVSDB node connects to OpenDaylight.
When OpenDaylight initiates an active connection to an OVSDB node, it writes an external-id to the Open_vSwitch table on the OVSDB node. The external-id is an OpenDaylight instance identifier which identifies the OVSDB topology node which has just been created. Here is an example showing the value of the opendaylight-iid entry in the external-ids column of the Open_vSwitch table where the node-id of the OVSDB node is ovsdb:HOST1.
$ ovs-vsctl list open_vswitch
...
external_ids : {opendaylight-iid="/network-topology:network-topology/network-topology:topology[network-topology:topology-id='ovsdb:1']/network-topology:node[network-topology:node-id='ovsdb:HOST1']"}
...
The opendaylight-iid entry in the external-ids column of the Open_vSwitch table causes the OVSDB node to have same node-id in the operational MD-SAL datastore as in the configuration MD-SAL datastore. This holds true if the OVSDB node manager settings are subsequently changed so that a passive OVSDB manager connection is made.
If there is no opendaylight-iid entry in the external-ids column and a passive OVSDB manager connection is made, then the node-id of the OVSDB node in the operational MD-SAL datastore will be constructed using the UUID of the Open_vSwitch table as follows.
"node-id": "ovsdb://uuid/b8dc0bfb-d22b-4938-a2e8-b0084d7bd8c1"
The opendaylight-iid entry can be removed from the Open_vSwitch table using the following command.
$ sudo ovs-vsctl remove open_vswitch . external-id "opendaylight-iid"
After the connection has been made to an OVSDB node, you can make changes to the OVSDB node by using the OVSDB Southbound Config MD-SAL. You can make CRUD operations by using the RESTCONF interface or by a plugin using the MD-SAL APIs. The following diagram illustrates the high-level flow of events.
Changes to the OVSDB nodes database may also occur independently of OpenDaylight. OpenDaylight also receives notifications for these events and updates the Southbound operational MD-SAL. The following diagram illustrates the sequence of events.
The OVSDB Southbound MD-SAL operates using a YANG model which is based on the abstract topology node model found in the network topology model.
The augmentations for the OVSDB Southbound MD-SAL are defined in the ovsdb.yang file.
There are three augmentations:
This augments the topology node and maps primarily to the Open_vSwitch table of the OVSDB schema. It contains the following attributes.
This augments the topology node and maps to an specific bridge in the OVSDB bridge table of the associated OVSDB node. It contains the following attributes.
This augments the topology termination point model. The OVSDB Southbound MD-SAL uses this model to represent both the OVSDB port and OVSDB interface for a given port/interface in the OVSDB schema. It contains the following attributes.
This example RESTCONF command adds an OVSDB node object to the OVSDB Southbound configuration data store and attempts to connect to the OVSDB host located at the IP address 10.11.12.1 on TCP port 6640.
POST http://<host>:8181/restconf/config/network-topology:network-topology/topology/ovsdb:1/
Content-Type: application/json
{
"node": [
{
"node-id": "ovsdb:HOST1",
"connection-info": {
"ovsdb:remote-ip": "10.11.12.1",
"ovsdb:remote-port": 6640
}
}
]
}
Following on from the previous example, if the OVSDB Southbound configuration MD-SAL is queried, the RESTCONF command and the resulting reply is similar to the following example.
GET http://<host>:8080/restconf/config/network-topology:network-topology/topology/ovsdb:1/
Application/json data in the reply
{
"topology": [
{
"topology-id": "ovsdb:1",
"node": [
{
"node-id": "ovsdb:HOST1",
"ovsdb:connection-info": {
"remote-port": 6640,
"remote-ip": "10.11.12.1"
}
}
]
}
]
}
