This section covers topics which are developer specific and which have not been covered in the user guide. Please see the OpenFlow plugin user guide first.
It can be found on the OpenDaylight software download page.

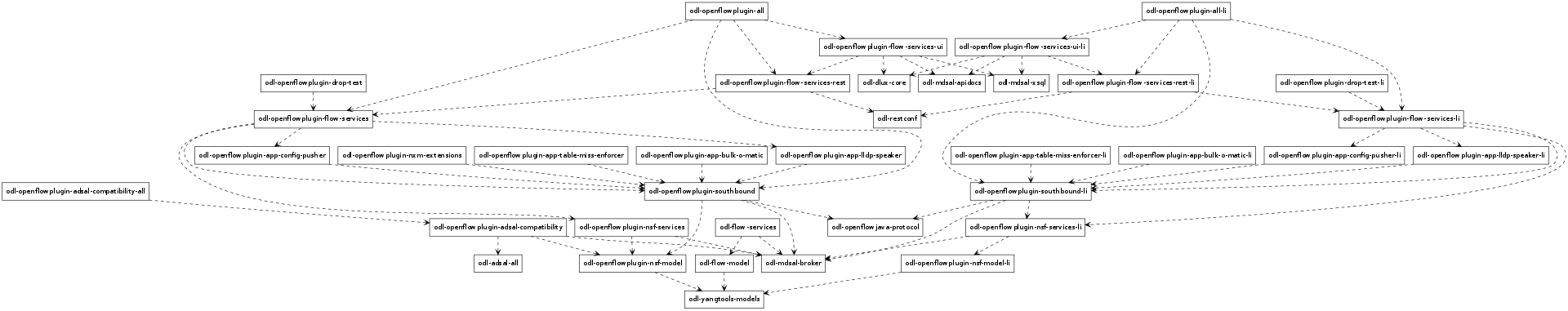

The OpenFlow Protocol Library provides interface SwitchConnectionHandler which contains method onSwitchConnected (step 1). This event is raised in the OpenFlow Protocol Library when an OpenFlow device connects to OpenDaylight and caught in the ConnectionManagerImpl class in the OpenFlow plugin.
There the plugin creates a new instance of the ConnectionContextImpl class (step 1.1) and also instances of HandshakeManagerImpl (which uses HandshakeListenerImpl) and ConnectionReadyListenerImpl. ConnectionReadyListenerImpl contains method onConnectionReady() which is called when connection is prepared. This method starts the handshake with the OpenFlow device (switch) from the OpenFlow plugin side. Then handshake can be also started from device side. In this case method shake() from HandshakeManagerImpl is called (steps 1.1.1 and 2).
The handshake consists of an exchange of HELLO messages in addition to an exchange of device features (steps 2.1. and 3). The handshake is completed by HandshakeManagerImpl. After receiving device features, the HandshakeListenerImpl is notifed via the onHanshakeSuccessfull() method. After this, the device features, node id and connection state are stored in a ConnectionContext and the method deviceConnected() of DeviceManagerImpl is called.
When deviceConnected() is called, it does the following:
When the OpenFlow device responds to these requests (step 4.2.1.1) with multipart replies (step 5) they are processed and stored to MD-SAL operational datastore. The createDeviceFeaturesForOF<version>() method returns a Future which is processed in the callback (step 5.1) (part of initializeDeviceContext() in the deviceConnected() method) by calling the method onDeviceCtxLevelUp() from StatisticsManager (step 5.1.1).
The call to createDeviceFeaturesForOF<version>(): . creates a new instance of StatisticsContextImpl (step 5.1.1.1).
If the Future is successful, it is processed (step 6.1.1) in a callback in StatisticsManagerImpl which:
The onDeviceContextLevelUp() call:

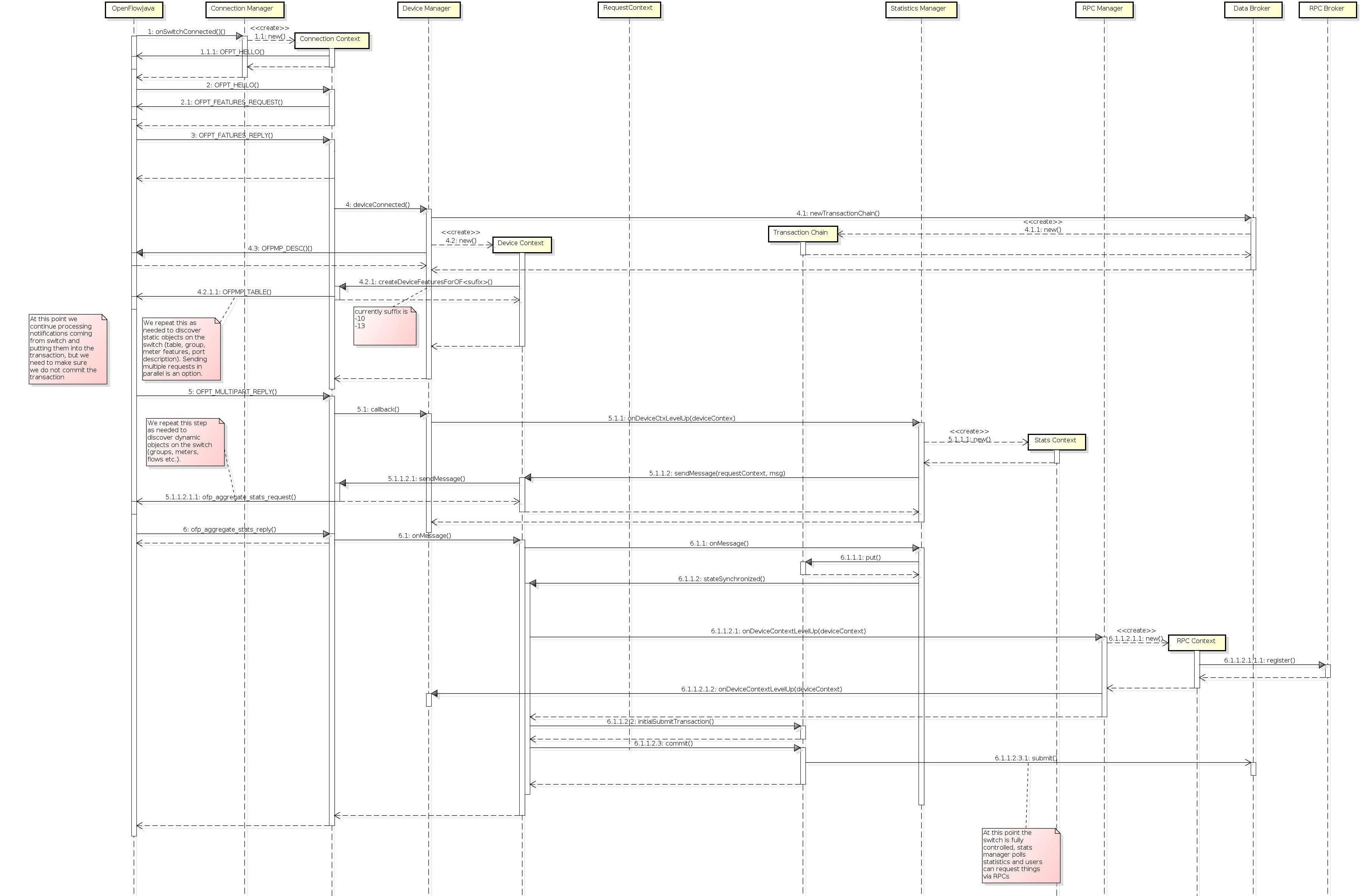

The first thing that happens when an OpenFlow device connects to OpenDaylight is that the OpenFlow plugin gathers basic information about the device and establishes agreement on key facts like the version of OpenFlow which will be used. This process is called the handshake.
The handshake starts with HELLO message which can be sent either by the OpenFlow device or the OpenFlow plugin. After this, there are several scenarios which can happen:
After selecting of version we can say that the VERSION IS SETTLED and the OpenFlow plugin can ask device for its features. At this point handshake ends.
There are two ways to add a flow in in the OpenFlow plugin: adding it to the MD-SAL config datastore or calling an RPC. Both of these can either be done using the native MD-SAL interfaces or using RESTCONF. This discussion focuses on calling the RPC.
If user send flow via REST interface (step 1) it will cause that invokeRpc() is called on RpcBroker. The RpcBroker then looks for an appropriate implementation of the interface. In the case of the OpenFlow plugin, this is the addFlow() method of SalFlowServiceImpl (step 1.1). The same thing happens if the RPC is called directly from the native MD-SAL interfaces.
The addFlow() method then
The callback method is triggered when a barrier reply message (step 2.1) is received from the device indicating that the flow was either installed or an appropriate error message was sent. If the flow was successfully sent to the device, the RPC result is set to success (step 5). // SalFlowService contains inside method addFlow() other callback which caught notification from callback for barrier message.
At this point, no information pertaining to the flow has been added to the MD-SAL operational datastore. That is accomplished by the periodic gathering of statistics from OpenFlow devices.
The StatisticsContext for each given OpenFlow device periodically polls it using gatherStatistics() of StatisticsGatheringUtil which issues an OpenFlow OFPT_MULTIPART_REQUEST - OFPMP_FLOW. The response to this request (step 7) is processed in StatisticsGatheringUtil class where flow data is written to the MD-SAL operational datastore via the writeToTransaction() method of DeviceContext.
The OpenFlow plugin project contains a variety of OpenDaylight modules, which are loaded using the configuration subsystem. This section describes the YANG files used to model each module.
General model (interfaces) - openflow-plugin-cfg.yang.
identity openflow-provider
)...OpenflowPluginProvider
)Implementation model - openflow-plugin-cfg-impl.yang
identity openflow-provider-impl
)container binding-aware-broker
)In order to involve suitable code generators, this is needed in pom:
<build> ...
<plugins>
<plugin>
<groupId>org.opendaylight.yangtools</groupId>
<artifactId>yang-maven-plugin</artifactId>
<executions>
<execution>
<goals>
<goal>generate-sources</goal>
</goals>
<configuration>
<codeGenerators>
<generator>
<codeGeneratorClass>
org.opendaylight.controller.config.yangjmxgenerator.plugin.JMXGenerator
</codeGeneratorClass>
<outputBaseDir>${project.build.directory}/generated-sources/config</outputBaseDir>
<additionalConfiguration>
<namespaceToPackage1>
urn:opendaylight:params:xml:ns:yang:controller==org.opendaylight.controller.config.yang
</namespaceToPackage1>
</additionalConfiguration>
</generator>
<generator>
<codeGeneratorClass>
org.opendaylight.yangtools.maven.sal.api.gen.plugin.CodeGeneratorImpl
</codeGeneratorClass>
<outputBaseDir>${project.build.directory}/generated-sources/sal</outputBaseDir>
</generator>
<generator>
<codeGeneratorClass>org.opendaylight.yangtools.yang.unified.doc.generator.maven.DocumentationGeneratorImpl</codeGeneratorClass>
<outputBaseDir>${project.build.directory}/site/models</outputBaseDir>
</generator>
</codeGenerators>
<inspectDependencies>true</inspectDependencies>
</configuration>
</execution>
</executions>
<dependencies>
<dependency>
<groupId>org.opendaylight.controller</groupId>
<artifactId>yang-jmx-generator-plugin</artifactId>
<version>0.2.5-SNAPSHOT</version>
</dependency>
<dependency>
<groupId>org.opendaylight.yangtools</groupId>
<artifactId>maven-sal-api-gen-plugin</artifactId>
<version>${yangtools.version}</version>
<type>jar</type>
</dependency>
</dependencies>
</plugin>
...
Those files were generated under src/main/java in package as referred in yangs (if exist, generator will not overwrite them):
ConfigurableOpenFlowProviderModuleFactory
here the instantiateModule methods are extended in order to capture and inject osgi BundleContext into module, so it can be injected into final implementation - OpenflowPluginProvider +
module.setBundleContext(bundleContext);
ConfigurableOpenFlowProviderModule
here the createInstance method is extended in order to inject osgi BundleContext into module implementation +
pluginProvider.setContext(bundleContext);
Configuration file contains
<snapshot>
<required-capabilities>
<capability>urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider:impl?module=openflow-switch-connection-provider-impl&revision=2014-03-28</capability>
<capability>urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider?module=openflow-switch-connection-provider&revision=2014-03-28</capability>
<capability>urn:opendaylight:params:xml:ns:yang:openflow:common:config:impl?module=openflow-provider-impl&revision=2014-03-26</capability>
<capability>urn:opendaylight:params:xml:ns:yang:openflow:common:config?module=openflow-provider&revision=2014-03-26</capability>
</required-capabilities>
<configuration>
<modules xmlns="urn:opendaylight:params:xml:ns:yang:controller:config">
<module>
<type xmlns:prefix="urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider:impl">prefix:openflow-switch-connection-provider-impl</type>
<name>openflow-switch-connection-provider-default-impl</name>
<port>6633</port>
<switch-idle-timeout>15000</switch-idle-timeout>
</module>
<module>
<type xmlns:prefix="urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider:impl">prefix:openflow-switch-connection-provider-impl</type>
<name>openflow-switch-connection-provider-legacy-impl</name>
<port>6653</port>
<switch-idle-timeout>15000</switch-idle-timeout>
</module>
<module>
<type xmlns:prefix="urn:opendaylight:params:xml:ns:yang:openflow:common:config:impl">prefix:openflow-provider-impl</type>
<name>openflow-provider-impl</name>
<openflow-switch-connection-provider>
<type xmlns:ofSwitch="urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider">ofSwitch:openflow-switch-connection-provider</type>
<name>openflow-switch-connection-provider-default</name>
</openflow-switch-connection-provider>
<openflow-switch-connection-provider>
<type xmlns:ofSwitch="urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider">ofSwitch:openflow-switch-connection-provider</type>
<name>openflow-switch-connection-provider-legacy</name>
</openflow-switch-connection-provider>
<binding-aware-broker>
<type xmlns:binding="urn:opendaylight:params:xml:ns:yang:controller:md:sal:binding">binding:binding-broker-osgi-registry</type>
<name>binding-osgi-broker</name>
</binding-aware-broker>
</module>
</modules>
<services xmlns="urn:opendaylight:params:xml:ns:yang:controller:config">
<service>
<type xmlns:prefix="urn:opendaylight:params:xml:ns:yang:openflow:switch:connection:provider">prefix:openflow-switch-connection-provider</type>
<instance>
<name>openflow-switch-connection-provider-default</name>
<provider>/modules/module[type='openflow-switch-connection-provider-impl'][name='openflow-switch-connection-provider-default-impl']</provider>
</instance>
<instance>
<name>openflow-switch-connection-provider-legacy</name>
<provider>/modules/module[type='openflow-switch-connection-provider-impl'][name='openflow-switch-connection-provider-legacy-impl']</provider>
</instance>
</service>
<service>
<type xmlns:prefix="urn:opendaylight:params:xml:ns:yang:openflow:common:config">prefix:openflow-provider</type>
<instance>
<name>openflow-provider</name>
<provider>/modules/module[type='openflow-provider-impl'][name='openflow-provider-impl']</provider>
</instance>
</service>
</services>
</configuration>
</snapshot>
In order to provide multiple instances of modules from openflowjava there is an API change. Previously OFPlugin got access to SwitchConnectionProvider exposed by OFJava and injected collection of configurations so that for each configuration new instance of tcp listening server was created. Now those configurations are provided by configSubsystem and configured modules (wrapping the original SwitchConnectionProvider) are injected into OFPlugin (wrapping SwitchConnectionHandler).
Here the whole configuration is contained in one file (controller.xml). Required entries needed in order to startup and wire OEPlugin + OFJava are simply added there.
Here new config file has been added (src/main/resources/configuration/initial/42-openflow-protocol-impl.xml) and is being copied to config/initial subfolder of build.
In order to push the actual config into config/initial subfolder of distributions/base in integration project there was a new artifact in OFPlugin created - openflowplugin-controller-config, containing only the config xml file under src/main/resources. Another change was committed into integration project. During build this config xml is being extracted and copied to the final folder in order to be accessible during controller run.
To aid in testing and diagnosis, the OpenFlow plugin provides information about the number and rate of different internal events.
The implementation does two things: collects event counts and exposes counts. Event counts are grouped by message type, e.g., PacketInMessage, and checkpoint, e.g., TO_SWITCH_ENQUEUED_SUCCESS. Once gathered, the results are logged as well as being exposed using OSGi command line (deprecated) and JMX.
Each message is counted as it passes through various processing checkpoints. The following checkpoints are defined as a Java enum and tracked:
/**
* statistic groups overall in OFPlugin
*/
enum STATISTIC_GROUP {
/** message from switch, enqueued for processing */
FROM_SWITCH_ENQUEUED,
/** message from switch translated successfully - source */
FROM_SWITCH_TRANSLATE_IN_SUCCESS,
/** message from switch translated successfully - target */
FROM_SWITCH_TRANSLATE_OUT_SUCCESS,
/** message from switch where translation failed - source */
FROM_SWITCH_TRANSLATE_SRC_FAILURE,
/** message from switch finally published into MD-SAL */
FROM_SWITCH_PUBLISHED_SUCCESS,
/** message from switch - publishing into MD-SAL failed */
FROM_SWITCH_PUBLISHED_FAILURE,
/** message from MD-SAL to switch via RPC enqueued */
TO_SWITCH_ENQUEUED_SUCCESS,
/** message from MD-SAL to switch via RPC NOT enqueued */
TO_SWITCH_ENQUEUED_FAILED,
/** message from MD-SAL to switch - sent to OFJava successfully */
TO_SWITCH_SUBMITTED_SUCCESS,
/** message from MD-SAL to switch - sent to OFJava but failed*/
TO_SWITCH_SUBMITTED_FAILURE
}
When a message passes through any of those checkpoints then counter assigned to corresponding checkpoint and message is incremented by 1.
As described above, there are three ways to access the statistics:
OSGi command line (this is considered deprecated)
osgi> dumpMsgCount
OpenDaylight logging console (statistics are logged here every 10 seconds)
required logback settings :
<logger name="org.opendaylight.openflowplugin.openflow.md.queue.MessageSpyCounterImpl" level="DEBUG"\/>
JMX (via JConsole)
start OpenFlow plugin with the
-jmx
parameterstart JConsole by running
jconsole

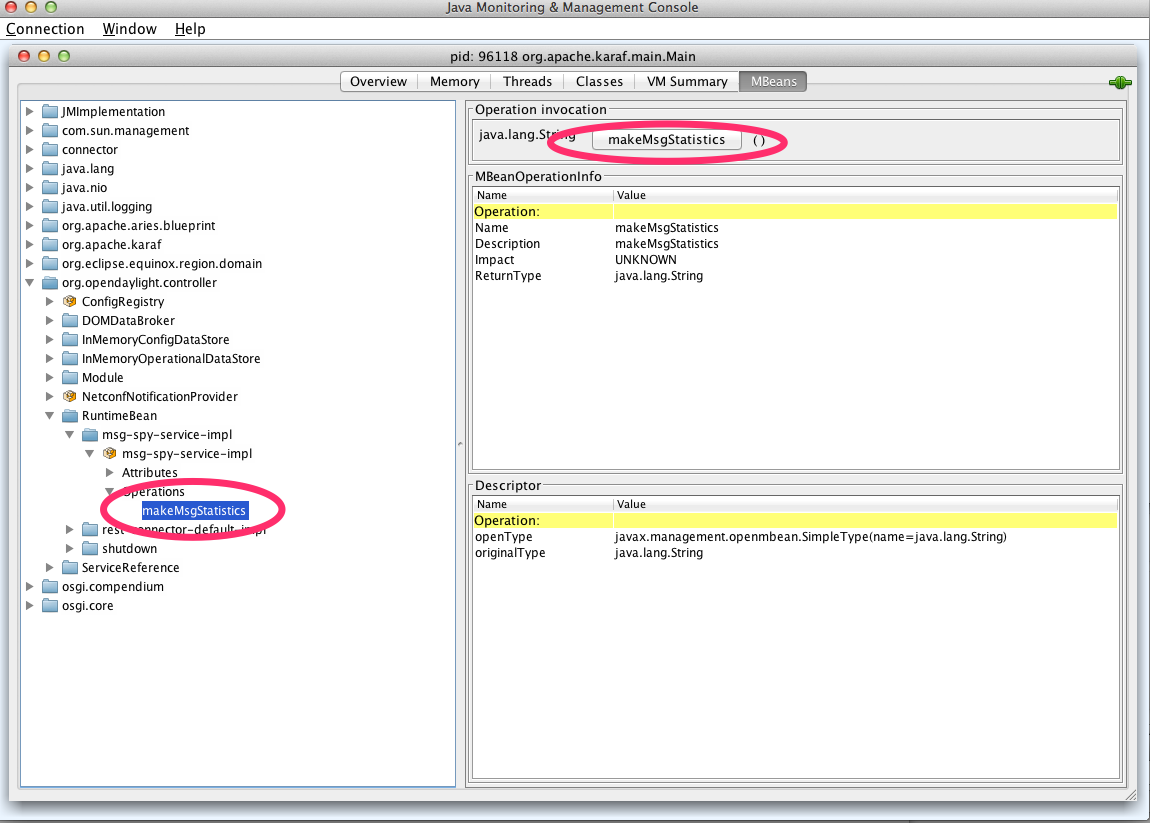

the JConsole MBeans tab should contain org.opendaylight.controller
RuntimeBean has a msg-spy-service-impl
Operations provides makeMsgStatistics report functionality
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_ENQUEUED: MSG[PortStatusMessage] -> +0 | 1
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_ENQUEUED: MSG[MultipartReplyMessage] -> +24 | 81
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_ENQUEUED: MSG[PacketInMessage] -> +8 | 111
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_IN_SUCCESS: MSG[PortStatusMessage] -> +0 | 1
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_IN_SUCCESS: MSG[MultipartReplyMessage] -> +24 | 81
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_IN_SUCCESS: MSG[PacketInMessage] -> +8 | 111
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[QueueStatisticsUpdate] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[NodeUpdated] -> +0 | 3
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[NodeConnectorStatisticsUpdate] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[GroupDescStatsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[FlowsStatisticsUpdate] -> +3 | 19
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[PacketReceived] -> +8 | 111
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[MeterFeaturesUpdated] -> +0 | 3
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[GroupStatisticsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[GroupFeaturesUpdated] -> +0 | 3
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[MeterConfigStatsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[MeterStatisticsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[NodeConnectorUpdated] -> +0 | 12
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_OUT_SUCCESS: MSG[FlowTableStatisticsUpdate] -> +3 | 8
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_TRANSLATE_SRC_FAILURE: no activity detected
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[QueueStatisticsUpdate] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[NodeUpdated] -> +0 | 3
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[NodeConnectorStatisticsUpdate] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[GroupDescStatsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[FlowsStatisticsUpdate] -> +3 | 19
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[PacketReceived] -> +8 | 111
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[MeterFeaturesUpdated] -> +0 | 3
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[GroupStatisticsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[GroupFeaturesUpdated] -> +0 | 3
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[MeterConfigStatsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[MeterStatisticsUpdated] -> +3 | 7
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[NodeConnectorUpdated] -> +0 | 12
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_SUCCESS: MSG[FlowTableStatisticsUpdate] -> +3 | 8
DEBUG o.o.o.s.MessageSpyCounterImpl - FROM_SWITCH_PUBLISHED_FAILURE: no activity detected
DEBUG o.o.o.s.MessageSpyCounterImpl - TO_SWITCH_ENQUEUED_SUCCESS: MSG[AddFlowInput] -> +0 | 12
DEBUG o.o.o.s.MessageSpyCounterImpl - TO_SWITCH_ENQUEUED_FAILED: no activity detected
DEBUG o.o.o.s.MessageSpyCounterImpl - TO_SWITCH_SUBMITTED_SUCCESS: MSG[AddFlowInput] -> +0 | 12
DEBUG o.o.o.s.MessageSpyCounterImpl - TO_SWITCH_SUBMITTED_FAILURE: no activity detected
Forwarding Rules Synchronizer (FRS) is a newer version of Forwarding Rules Manager (FRM). It was created to solve most shortcomings of FRM. FRS solving errors with retry mechanism. Sending barrier if needed. Using one service for flows, groups and meters. And it has less changes requests send to device since calculating difference and using compression queue.
It is located in the Java package:
package org.opendaylight.openflowplugin.applications.frsync;
In the old FRM uses an incremental strategy with all changes made one by one, where FRS uses a flat batch system with changes made in bulk. It uses one service SalFlatBatchService instead of three (flow, group, meter).
FRS is used in Boron as separate feature and it is not loaded by any other feature. It has to be run separately.
odl-openflowplugin-app-forwardingrules-sync
FRS uses service with implemented barrier waiting logic between dependent objects
SalFlatBatchService was created along forwardingrules-sync application as the service that should application used by default. This service uses only one input with bag of flow/group/meter objects and their common add/update/remove action. So you practically send only one input (of specific bags) to this service.
Input for SalFlatBatchService (ProcessFlatBatchInput object) consists of:
actual step | previous steps contain |
---|---|
FLOW_ADD or FLOW_UPDATE | GROUP_ADD or METER_ADD |
GROUP_ADD | GROUP_ADD or GROUP_UPDATE |
GROUP_REMOVE | FLOW_UPDATE or FLOW_REMOVE or GROUP_UPDATE or GROUP_REMOVE |
METER_REMOVE | FLOW_UPDATE or FLOW_REMOVE |
There is flag in ProcessFlatBatchInput to stop process on the first error.
If error occurs in any of partial steps upper FlatBatchService call will return as unsuccessful in both cases. However every partial error is attached to general flat batch result along with BatchFailure (contains BatchOrder and BatchItemIdChoice to identify failed step).
The existing OpenDaylight service deployment model assumes symmetric clusters, where all services are activated on all nodes in the cluster. However, many services require that there is a single active service instance per cluster. We call such services singleton services. The Entity Ownership Service (EOS) represents the base Leadership choice for one Entity instance. Every Cluster Singleton service type must have its own Entity and every Cluster Singleton service instance must have its own Entity Candidate. Every registered Entity Candidate should be notified about its actual role. All this “work” is done by MD-SAL so the Openflowplugin need “only” to register as service in SingletonClusteringServiceProvider given by MD-SAL.
In this new clustering singleton approach plugin uses API from the MD-SAL project: SingletonClusteringService which comes with three methods.
instantiateServiceInstance()
closeServiceInstance()
getIdentifier()
This service has to be registered to a SingletonClusteringServiceProvider from MD-SAL which take care if mastership is changed in cluster environment.
First method in SingletonClusteringService is being called when the cluster node becomes a MASTER. Second is being called when status changes to SLAVE or device is disconnected from cluster. Last method plugins returns NodeId as ServiceGroupIdentifier Startup after device is connected
On the start up the plugin we need to initialize first four managers for each working area providing information and services
After connection the device the listener Device manager get the event and start up to creating the context for this connection. Startup after device connection
Services are managed by SinlgetonClusteringServiceProvider from MD-SAL project. So in startup we simply create a instance of LifecycleService and register all contexts into it.
Plugin is no longer registered as Entity Ownership Service (EOS) listener therefore does not need to and cannot respond on EOS ownership changes.
Services start asynchronously but the start is managed by LifecycleService. If something goes wrong LifecycleService stop starting services in context and this speeds up the reconnect process. But the services haven’t changed and plugin need to start all this:
If closeServiceInstance occurred plugin just simply try to store all unsubmitted transactions and close the transaction chain manager, stop RPC services, stop Statistics gathering and after that all unregister txEntity from EOS.
We need to translate OpenFlow messages coming up from the OpenFlow Protocol Library into MD-SAL Notification objects and then publish them to the MD-SAL.
You can see an example in PacketInTranslator.java.
First, simply create the class
public class PacketInTranslator implements IMDMessageTranslator<OfHeader, List<DataObject>> {
Then implement the translate function:
public class PacketInTranslator implements IMDMessageTranslator<OfHeader, List<DataObject>> {
protected static final Logger LOG = LoggerFactory
.getLogger(PacketInTranslator.class);
@Override
public PacketReceived translate(SwitchConnectionDistinguisher cookie,
SessionContext sc, OfHeader msg) {
...
}
Make sure to check that you are dealing with the expected type and cast it:
if(msg instanceof PacketInMessage) {
PacketInMessage message = (PacketInMessage)msg;
List<DataObject> list = new CopyOnWriteArrayList<DataObject>();
Do your transation work and return
PacketReceived pktInEvent = pktInBuilder.build();
list.add(pktInEvent);
return list;
Next you need to go to MDController.java and in init() add register your Translator:
public void init() {
LOG.debug("Initializing!");
messageTranslators = new ConcurrentHashMap<>();
popListeners = new ConcurrentHashMap<>();
//TODO: move registration to factory
addMessageTranslator(ErrorMessage.class, OF10, new ErrorTranslator());
addMessageTranslator(ErrorMessage.class, OF13, new ErrorTranslator());
addMessageTranslator(PacketInMessage.class,OF10, new PacketInTranslator());
addMessageTranslator(PacketInMessage.class,OF13, new PacketInTranslator());
Notice that there is a separate registration for each of OpenFlow 1.0 and OpenFlow 1.3. Basically, you indicate the type of OpenFlow Protocol Library message you wish to translate for, the OpenFlow version, and an instance of your Translator.
Now, also in MDController.init() register to have the notificationPopListener handle your MD-SAL Message:
addMessagePopListener(PacketReceived.class, new NotificationPopListener<DataObject>());
That’s all there is to it. Now when a message comes up from the OpenFlow Protocol Library, it will be translated and published to the MD-SAL.
While the Helium release of OpenFlow Plugin relied on queues to ensure messages were delivered in order, subsequent releases instead ensure that all the messages from a given device are delivered using the same thread and thus message order is guaranteed without queues. The OpenFlow plugin allocates a number of threads equal to twice the number of processor cores on machine it is run, e.g., 8 threads if the machine has 4 cores.
Note
While each device is assigned to one thread, multiple devices can be assigned to the same thread.
