OCP Plugin Developer Guide

This document is intended for both OCP (ORI [Open Radio Interface] C&M [Control and Management] Protocol) agent developers and OpenDaylight service/application developers. It describes essential information needed to implement an OCP agent that is capable of interoperating with the OCP plugin running in OpenDaylight, including the OCP connection establishment and state machines used on both ends of the connection. It also provides a detailed description of the northbound/southbound APIs that the OCP plugin exposes to allow automation and programmability.

Overview

OCP is an ETSI standard protocol for control and management of Remote Radio Head (RRH) equipment. The OCP Project addresses the need for a southbound plugin that allows applications and controller services to interact with RRHs using OCP. The OCP southbound plugin will allow applications acting as a Radio Equipment Control (REC) to interact with RRHs that support an OCP agent.

OCP southbound plugin

OCP southbound plugin

Architecture

OCP is a vendor-neutral standard communications interface defined to enable control and management between RE and REC of an ORI architecture. The OCP Plugin supports the implementation of the OCP specification; it is based on the Model Driven Service Abstraction Layer (MD-SAL) architecture.

The OCP Plugin project consists of three main components: OCP southbound plugin, OCP protocol library and OCP service. For details on each of them, refer to the OCP Plugin User Guide.

Overall architecture

Overall architecture

Connection Establishment

The OCP layer is transported over a TCP/IP connection established between the RE and the REC. OCP provides the following functions:

  • Control & Management of the RE by the REC
  • Transport of AISG/3GPP Iuant Layer 7 messages and alarms between REC and RE

Hello Message

Hello message is used by the OCP agent during connection setup. It is used for version negotiation. When the connection is established, the OCP agent immediately sends a Hello message with the version field set to highest OCP version supported by itself, along with the verdor ID and serial number of the radio head it is running on.

The combinaiton of the verdor ID and serial number will be used by the OCP plugin to uniquely identify a managed radio head. When not receiving reply from the OCP plugin, the OCP agent can resend Hello message with pre-defined Hello timeout (THLO) and Hello resend times (NHLO).

According to ORI spec, the default value of TCP Link Monitoring Timer (TTLM) is 50 seconds. The RE shall trigger an OCP layer restart while TTLM expires in RE or the RE detects a TCP link failure. So we may define NHLO * THLO = 50 seconds (e.g. NHLO = 10, THLO = 5 seconds).

By nature the Hello message is a new type of indication, and it contains supported OCP version, vendor ID and serial number as shown below.

Hello message.

<?xml version="1.0" encoding="UTF-8"?>
<msg xmlns="http://uri.etsi.org/ori/002-2/v4.1.1">
  <header>
    <msgType>IND</msgType>
    <msgUID>0</msgUID>
  </header>
  <body>
    <helloInd>
      <version>4.1.1</version>
      <vendorId>XYZ</vendorId>
      <serialNumber>ABC123</serialNumber>
    </helloInd>
  </body>
</msg>

Ack Message

Hello from the OCP agent will always make the OCP plugin respond with ACK. In case everything is OK, it will be ACK(OK). In case something is wrong, it will be ACK(FAIL).

If the OCP agent receives ACK(OK), it goes to Established state. If the OCP agent receives ACK(FAIL), it goes to Maintenance state. The failure code and reason of ACK(FAIL) are defined as below:

  • FAIL_OCP_VERSION (OCP version not supported)
  • FAIL_NO_MORE_CAPACITY (OCP plugin cannot control any more radio heads)

The result inside Ack message indicates OK or FAIL with different reasons.

Ack message.

<?xml version="1.0" encoding="UTF-8"?>
<msg xmlns="http://uri.etsi.org/ori/002-2/v4.1.1">
  <header>
    <msgType>ACK</msgType>
    <msgUID>0</msgUID>
  </header>
  <body>
    <helloAck>
      <result>FAIL_OCP_VERSION</result>
    </helloAck>
  </body>
</msg>

State Machines

The following figures illustrate the Finite State Machine (FSM) of the OCP agent and OCP plugin for new connection procedure.

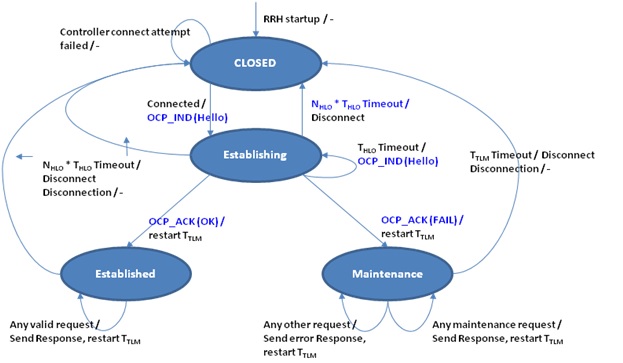

OCP agent state machine

OCP agent state machine

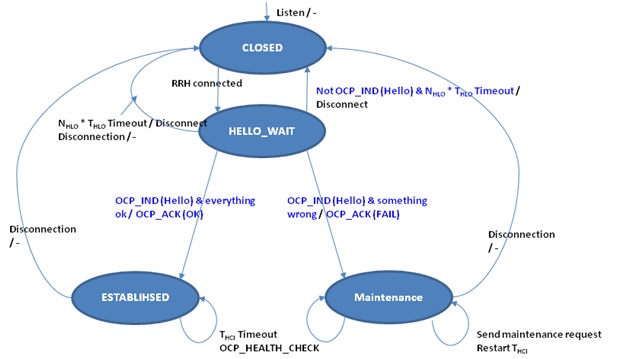

OCP plugin state machine

OCP plugin state machine

Northbound APIs

There are ten exposed northbound APIs: health-check, set-time, re-reset, get-param, modify-param, create-obj, delete-obj, get-state, modify-state and get-fault

health-check

The Health Check procedure allows the application to verify that the OCP layer is functioning correctly at the RE.

Default URL: http://localhost:8181/restconf/operations/ocp-service:health-check-nb

POST Input

Field Name Type Description Example Required ?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
tcpLinkMonTimeout unsigned Short TCP Link Monitoring Timeout (unit: seconds) 50 Yes

Example.

{
    "health-check-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "tcpLinkMonTimeout": "50"
        }
    }
}

POST Output

Field Name Type Description
result String, enumerated Common default result codes

Example.

{
    "output": {
        "result": "SUCCESS"
    }
}

set-time

The Set Time procedure allows the application to set/update the absolute time reference that shall be used by the RE.

Default URL: http://localhost:8181/restconf/operations/ocp-service:set-time-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
newTime dateTime New datetime setting for radio head 2016-04-26T10:23:00- 05:00 Yes

Example.

{
    "set-time-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "newTime": "2016-04-26T10:23:00-05:00"
        }
    }
}

POST Output

Field Name Type Description
result String, enumerated Common default result codes + FAIL_INVALID_TIMEDATA

Example.

{
    "output": {
        "result": "SUCCESS"
    }
}

re-reset

The RE Reset procedure allows the application to reset a specific RE.

Default URL: http://localhost:8181/restconf/operations/ocp-service:re-reset-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes

Example.

{
    "re-reset-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200"
        }
    }
}

POST Output

Field Name Type Description
result String, enumerated Common default result codes

Example.

{
    "output": {
        "result": "SUCCESS"
    }
}

get-param

The Object Parameter Reporting procedure allows the application to retrieve the following information:

  1. the defined object types and instances within the Resource Model of the RE
  2. the values of the parameters of the objects

Default URL: http://localhost:8181/restconf/operations/ocp-service:get-param-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objId String Object ID RxSigPath_5G:1 Yes
paramName String Parameter name dataLink Yes

Example.

{
    "get-param-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "objId": "RxSigPath_5G:1",
            "paramName": "dataLink"
        }
    }
}

POST Output

Field Name Type Description
id String Object ID
name String Object parameter name
value String Object parameter value
result String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJECT”, “FAIL_UNKNOWN_PARAM”

Example.

{
    "output": {
        "obj": [
            {
                "id": "RxSigPath_5G:1",
                "param": [
                    {
                        "name": "dataLink",
                        "value": "dataLink:1"
                    }
                ]
            }
        ],
        "result": "SUCCESS"
    }
}

modify-param

The Object Parameter Modification procedure allows the application to configure the values of the parameters of the objects identified by the Resource Model.

Default URL: http://localhost:8181/restconf/operations/ocp-service:modify-param-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objId String Object ID RxSigPath_5G:1 Yes
name String Object parameter name dataLink Yes
value String Object parameter value dataLink:1 Yes

Example.

{
    "modify-param-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "objId": "RxSigPath_5G:1",
            "param": [
                {
                    "name": "dataLink",
                    "value": "dataLink:1"
                }
            ]
        }
    }
}

POST Output

Field Name Type Description
objId String Object ID
globResult String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJECT”, “FAIL_PARAMETER_FAIL”, “FAIL_NOSUCH_RESOURCE”
name String Object parameter name
result String, enumerated “SUCCESS”, “FAIL_UNKNOWN_PARAM”, “FAIL_PARAM_READONLY”, “FAIL_PARAM_LOCKREQUIRED”, “FAIL_VALUE_OUTOF_RANGE”, “FAIL_VALUE_TYPE_ERROR”

Example.

{
    "output": {
        "objId": "RxSigPath_5G:1",
        "globResult": "SUCCESS",
        "param": [
            {
                "name": "dataLink",
                "result": "SUCCESS"
            }
        ]
    }
}

create-obj

The Object Creation procedure allows the application to create and initialize a new instance of the given object type on the RE.

Default URL: http://localhost:8181/restconf/operations/ocp-service:create-obj-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objType String Object type RxSigPath_5G Yes
name String Object parameter name dataLink No
value String Object parameter value dataLink:1 No

Example.

{
    "create-obj-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "objType": "RxSigPath_5G",
            "param": [
                {
                    "name": "dataLink",
                    "value": "dataLink:1"
                }
            ]
        }
    }
}

POST Output

Field Name Type Description
objId String Object ID
globResult String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJTYPE”, “FAIL_STATIC_OBJTYPE”, “FAIL_UNKNOWN_OBJECT”, “FAIL_CHILD_NOTALLOWED”, “FAIL_OUTOF_RESOURCES” “FAIL_PARAMETER_FAIL”, “FAIL_NOSUCH_RESOURCE”
name String Object parameter name
result String, enumerated “SUCCESS”, “FAIL_UNKNOWN_PARAM”, “FAIL_PARAM_READONLY”, “FAIL_PARAM_LOCKREQUIRED”, “FAIL_VALUE_OUTOF_RANGE”, “FAIL_VALUE_TYPE_ERROR”

Example.

{
    "output": {
        "objId": "RxSigPath_5G:0",
        "globResult": "SUCCESS",
        "param": [
            {
                "name": "dataLink",
                "result": "SUCCESS"
            }
        ]
    }
}

delete-obj

The Object Deletion procedure allows the application to delete a given object instance and recursively its entire child objects on the RE.

Default URL: http://localhost:8181/restconf/operations/ocp-service:delete-obj-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objId String Object ID RxSigPath_5G:1 Yes

Example.

{
    "delete-obj-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "obj-id": "RxSigPath_5G:0"
        }
    }
}

POST Output

Field Name Type Description
result String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJECT”, “FAIL_STATIC_OBJTYPE”, “FAIL_LOCKREQUIRED”

Example.

{
    "output": {
        "result": "SUCCESS"
    }
}

get-state

The Object State Reporting procedure allows the application to acquire the current state (for the requested state type) of one or more objects of the RE resource model, and additionally configure event-triggered reporting of the detected state changes for all state types of the indicated objects.

Default URL: http://localhost:8181/restconf/operations/ocp-service:get-state-nb

POST Input

Field Name Type Description Example Required ?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objId String Object ID RxSigPath_5G:1 Yes
stateType String, enumerat ed Valid values: “AST”, “FST”, “ALL” ALL Yes
eventDrivenReporti ng Boolean Event-triggered reporting of state change true Yes

Example.

{
    "get-state-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "objId": "antPort:0",
            "stateType": "ALL",
            "eventDrivenReporting": "true"
        }
    }
}

POST Output

Field Name Type Description
id String Object ID
type String, enumerated State type. Valid values: “AST”, “FST
value String, enumerated State value. Valid values: For state type = “AST”: “LOCKED”, “UNLOCKED”. For state type = “FST”: “PRE_OPERATIONAL”, “OPERATIONAL”, “DEGRADED”, “FAILED”, “NOT_OPERATIONAL”, “DISABLED”
result String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJECT”, “FAIL_UNKNOWN_STATETYPE”, “FAIL_VALUE_OUTOF_RANGE”

Example.

{
    "output": {
        "obj": [
            {
                "id": "antPort:0",
                "state": [
                    {
                        "type": "FST",
                        "value": "DISABLED"
                    },
                    {
                        "type": "AST",
                        "value": "LOCKED"
                    }
                ]
            }
        ],
        "result": "SUCCESS"
    }
}

modify-state

The Object State Modification procedure allows the application to trigger a change in the state of an object of the RE Resource Model.

Default URL: http://localhost:8181/restconf/operations/ocp-service:modify-state-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objId String Object ID RxSigPath_5G:1 Yes
stateType String, enumerated Valid values: “AST”, “FST”, “ALL” AST Yes
stateValue String, enumerated Valid values: For state type = “AST”: “LOCKED”, “UNLOCKED”. For state type = “FST”: “PRE_OPERATIONAL”, “OPERATIONAL”, “DEGRADED”, “FAILED”, “NOT_OPERATIONAL”, “DISABLED” LOCKED Yes

Example.

{
    "modify-state-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "objId": "RxSigPath_5G:1",
            "stateType": "AST",
            "stateValue": "LOCKED"
        }
    }
}

POST Output

Field Name Type Description
objId String Object ID
stateType String, enumerated State type. Valid values: “AST”, “FST
stateValue String, enumerated State value. Valid values: For state type = “AST”: “LOCKED”, “UNLOCKED”. For state type = “FST”: “PRE_OPERATIONAL”, “OPERATIONAL”, “DEGRADED”, “FAILED”, “NOT_OPERATIONAL”, “DISABLED”
result String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJECT”, “FAIL_UNKNOWN_STATETYPE”, “FAIL_UNKNOWN_STATEVALUE”, “FAIL_STATE_READONLY”, “FAIL_RESOURCE_UNAVAILABLE”, “FAIL_RESOURCE_INUSE”, “FAIL_PARENT_CHILD_CONFLICT”, “FAIL_PRECONDITION_NOTMET

Example.

{
    "output": {
        "objId": "RxSigPath_5G:1",
        "stateType": "AST",
        "stateValue": "LOCKED",
        "result": "SUCCESS",
    }
}

get-fault

The Fault Reporting procedure allows the application to acquire information about all current active faults associated with a primary object, as well as configure the RE to report when the fault status changes for any of faults associated with the indicated primary object.

Default URL: http://localhost:8181/restconf/operations/ocp-service:get-fault-nb

POST Input

Field Name Type Description Example Required?
nodeId String Inventory node reference for OCP radio head ocp:MTI-101-200 Yes
objId String Object ID RE:0 Yes
eventDrive nReporting Boolean Event-triggered reporting of fault true Yes

Example.

{
    "get-fault-nb": {
        "input": {
            "nodeId": "ocp:MTI-101-200",
            "objId": "RE:0",
            "eventDrivenReporting": "true"
        }
    }
}

POST Output

Field Name Type Description
result String, enumerated Common default result codes + “FAIL_UNKNOWN_OBJECT”, “FAIL_VALUE_OUTOF_RANGE”
id (obj) String Object ID
id (fault) String Fault ID
severity String Fault severity
timestamp dateTime Time stamp
descr String Text description
affectedObj String Affected object

Example.

{
    "output": {
        "result": "SUCCESS",
        "obj": [
            {
                "id": "RE:0",
                "fault": [
                    {
                        "id": "FAULT_OVERTEMP",
                        "severity": "DEGRADED",
                        "timestamp": "2012-02-12T16:35:00",
                        "descr": "PA temp too high; Pout reduced",
                        "affectedObj": [
                            "TxSigPath_EUTRA:0",
                            "TxSigPath_EUTRA:1"
                        ]
                    },
                    {
                        "id": "FAULT_VSWR_OUTOF_RANGE",
                        "severity": "WARNING",
                        "timestamp": "2012-02-12T16:01:05",
                    }
                ]
            }
        ],
    }
}

Note

The northbound APIs described above wrap the southbound APIs to make them accessible to external applications via RESTCONF, as well as take care of synchronizing the RE resource model between radio heads and the controller’s datastore. See applications/ocp-service/src/main/yang/ocp-resourcemodel.yang for the yang representation of the RE resource model.

Java Interfaces (Southbound APIs)

The southbound APIs provide concrete implementation of the following OCP elementary functions: health-check, set-time, re-reset, get-param, modify-param, create-obj, delete-obj, get-state, modify-state and get-fault. Any OpenDaylight services/applications (of course, including OCP service) wanting to speak OCP to radio heads will need to use them.

SalDeviceMgmtService

Interface SalDeviceMgmtService defines three methods corresponding to health-check, set-time and re-reset.

SalDeviceMgmtService.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.device.mgmt.rev150811;

public interface SalDeviceMgmtService
    extends
    RpcService
{

    Future<RpcResult<HealthCheckOutput>> healthCheck(HealthCheckInput input);

    Future<RpcResult<SetTimeOutput>> setTime(SetTimeInput input);

    Future<RpcResult<ReResetOutput>> reReset(ReResetInput input);

}

SalConfigMgmtService

Interface SalConfigMgmtService defines two methods corresponding to get-param and modify-param.

SalConfigMgmtService.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.config.mgmt.rev150811;

public interface SalConfigMgmtService
    extends
    RpcService
{

    Future<RpcResult<GetParamOutput>> getParam(GetParamInput input);

    Future<RpcResult<ModifyParamOutput>> modifyParam(ModifyParamInput input);

}

SalObjectLifecycleService

Interface SalObjectLifecycleService defines two methods corresponding to create-obj and delete-obj.

SalObjectLifecycleService.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.object.lifecycle.rev150811;

public interface SalObjectLifecycleService
    extends
    RpcService
{

    Future<RpcResult<CreateObjOutput>> createObj(CreateObjInput input);

    Future<RpcResult<DeleteObjOutput>> deleteObj(DeleteObjInput input);

}

SalObjectStateMgmtService

Interface SalObjectStateMgmtService defines two methods corresponding to get-state and modify-state.

SalObjectStateMgmtService.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.object.state.mgmt.rev150811;

public interface SalObjectStateMgmtService
    extends
    RpcService
{

    Future<RpcResult<GetStateOutput>> getState(GetStateInput input);

    Future<RpcResult<ModifyStateOutput>> modifyState(ModifyStateInput input);

}

SalFaultMgmtService

Interface SalFaultMgmtService defines only one method corresponding to get-fault.

SalFaultMgmtService.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.fault.mgmt.rev150811;

public interface SalFaultMgmtService
    extends
    RpcService
{

    Future<RpcResult<GetFaultOutput>> getFault(GetFaultInput input);

}

Notifications

In addition to indication messages, the OCP southbound plugin will translate specific events (e.g., connect, disconnect) coming up from the OCP protocol library into MD-SAL Notification objects and then publish them to the MD-SAL. Also, the OCP service will notify the completion of certain operation via Notification as well.

SalDeviceMgmtListener

An onDeviceConnected Notification will be published to the MD-SAL as soon as a radio head is connected to the controller, and when that radio head is disconnected the OCP southbound plugin will publish an onDeviceDisconnected Notification in response to the disconnect event propagated from the OCP protocol library.

SalDeviceMgmtListener.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.device.mgmt.rev150811;

public interface SalDeviceMgmtListener
    extends
    NotificationListener
{

    void onDeviceConnected(DeviceConnected notification);

    void onDeviceDisconnected(DeviceDisconnected notification);

}

OcpServiceListener

The OCP service will publish an onAlignmentCompleted Notification to the MD-SAL once it has completed the OCP alignment procedure with the radio head.

OcpServiceListener.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.params.xml.ns.yang.ocp.applications.ocp.service.rev150811;

public interface OcpServiceListener
    extends
    NotificationListener
{

    void onAlignmentCompleted(AlignmentCompleted notification);

}

SalObjectStateMgmtListener

When receiving a state change indication message, the OCP southbound plugin will propagate the indication message to upper layer services/applications by publishing a corresponding onStateChangeInd Notification to the MD-SAL.

SalObjectStateMgmtListener.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.object.state.mgmt.rev150811;

public interface SalObjectStateMgmtListener
    extends
    NotificationListener
{

    void onStateChangeInd(StateChangeInd notification);

}

SalFaultMgmtListener

When receiving a fault indication message, the OCP southbound plugin will propagate the indication message to upper layer services/applications by publishing a corresponding onFaultInd Notification to the MD-SAL.

SalFaultMgmtListener.java.

package org.opendaylight.yang.gen.v1.urn.opendaylight.ocp.fault.mgmt.rev150811;

public interface SalFaultMgmtListener
    extends
    NotificationListener
{

    void onFaultInd(FaultInd notification);

}
