OpenDaylight Controller is Java-based, model-driven controller using YANG as its modeling language for various aspects of the system and applications and with its components serves as a base platform for other OpenDaylight applications.
The OpenDaylight Controller relies on the following technologies:
The OpenDaylight Controller provides following model-driven subsystems as a foundation for Java applications:
The OpenDaylight Controller supports external access to applications and data using following model-driven protocols:
The Model-Driven Service Adaptation Layer (MD-SAL) is message-bus inspired extensible middleware component that provides messaging and data storage functionality based on data and interface models defined by application developers (i.e. user-defined models).
The MD-SAL:
The MD-SAL uses YANG as the modeling language for both interface and data definitions, and provides a messaging and data-centric runtime for such services based on YANG modeling.
Note
Model-driven nature of the MD-SAL and DOM-based APIs allows for behind-the-scene API and payload type mediation and transformation to facilitate seamless communication between applications - this enables for other components and applications to provide connectors / expose different set of APIs and derive most of its functionality purely from models, which all existing code can benefit from without modification. For example RESTCONF Connector is an application built on top of MD-SAL and exposes YANG-modeled application APIs transparently via HTTP and adds support for XML and JSON payload type.
Basic concepts are building blocks which are used by applications, and from which MD-SAL uses to define messaging patterns and to provide services and behavior based on developer-supplied YANG models.
All state-related data are modeled and represented as data tree, with possibility to address any element / subtree
asynchronous request-reply message pair, when request is triggered by consumer, send to the provider, which in future replies with reply message.
Note
In MD-SAL terminology, the term RPC is used to define the input and output for a procedure (function) that is to be provided by a provider, and mediated by the MD-SAL, that means it may not result in remote call.
MD-SAL provides several messaging patterns using broker derived from basic concepts, which are intended to transfer YANG modeled data between applications to provide data-centric integration between applications instead of API-centric integration.
MD-SAL Data Broker provides transactional access to conceptual data trees representing configuration and operational state.
Note
Data tree usually represents state of the modeled data, usually this is state of controller, applications and also external systems (network devices).
Transactions provide `stable and isolated view <#_transaction_isolation>`__ from other currently running transactions. The state of running transaction and underlying data tree is not affected by other concurrently running transactions.
Transaction provides only modification capabilities, but does not
provide read capabilities. Write-only transaction is allocated using
newWriteOnlyTransaction()
.
Note
This allows less state tracking for write-only transactions and allows MD-SAL Clustering to optimize internal representation of transaction in cluster.
newReadWriteTransaction()
.Transaction provides stable read-only view based on current data
tree. Read-only view is not affected by any subsequent write
transactions. Read-only transaction is allocated using
newReadOnlyTransaction()
.
Note
If an application needs to observe changes itself in data tree, it should use data tree listeners instead of read-only transactions and polling data tree.
Transactions may be allocated using the data broker itself or using transaction chain. In the case of transaction chain, the new allocated transaction is not based on current state of data tree, but rather on state introduced by previous transaction from the same chain, even if the commit for previous transaction has not yet occurred (but transaction was submitted).
Write-Only and Read-Write transactions provide modification capabilities for the conceptual data trees.
newWriteOnlyTransaction()
or newReadWriteTransaction()
.put
, merge
and/or delete
.`submit()
<#_submitting_transaction>`__, which seals transaction
and submits it to be processed.The initial state of the write transaction is a stable snapshot of the current data tree state captured when transaction was created and it’s state and underlying data tree are not affected by other concurrently running transactions.
Write transactions are isolated from other concurrent write transactions. All `writes are local <#_transaction_local_state>`__ to the transaction and represents only a proposal of state change for data tree and are not visible to any other concurrently running transactions (including read-only transactions).
The transaction `commit may fail <#_commit_failure_scenarios>`__ due to failing verification of data or concurrent transaction modifying and affected data in an incompatible way.
Write-only and read-write transaction provides following methods to modify data tree:
<T> void put(LogicalDatastoreType store, InstanceIdentifier<T> path, T data);
Stores a piece of data at a specified path. This acts as an add / replace operation, which is to say that whole subtree will be replaced by the specified data.
<T> void merge(LogicalDatastoreType store, InstanceIdentifier<T> path, T data);
Merges a piece of data with the existing data at a specified path. Any pre-existing data which are not explicitly overwritten will be preserved. This means that if you store a container, its child subtrees will be merged.
void delete(LogicalDatastoreType store, InstanceIdentifier<?> path);
Removes a whole subtree from a specified path.
Transaction is submitted to be processed and committed using following method:
CheckedFuture<Void,TransactionCommitFailedException> submit();
Applications publish the changes proposed in the transaction by calling
submit()
on the transaction. This seals the transaction
(preventing any further writes using this transaction) and submits it to
be processed and applied to global conceptual data tree. The
submit()
method does not block, but rather returns
ListenableFuture
, which will complete successfully once processing
of transaction is finished and changes are applied to data tree. If
commit of data failed, the future will fail with
TransactionFailedException
.
Application may listen on commit state asynchronously using
ListenableFuture
.
Futures.addCallback( writeTx.submit(), new FutureCallback<Void>() {
public void onSuccess( Void result ) {
LOG.debug("Transaction committed successfully.");
}
public void onFailure( Throwable t ) {
LOG.error("Commit failed.",e);
}
});
writeTx
and registers application provided
FutureCallback
on returned future.writeTx
was successfully committed to data tree.writeTx
failed. Supplied exception provides additional details and cause of
failure.If application need to block till commit is finished it may use
checkedGet()
to wait till commit is finished.
try {
writeTx.submit().checkedGet();
} catch (TransactionCommitFailedException e) {
LOG.error("Commit failed.",e);
}
writeTx
and blocks till commit of writeTx
is
finished. If commit fails TransactionCommitFailedException
will
be thrown.TransactionCommitFailedException
and logs it.Read-Write transactions maintain transaction-local state, which renders all modifications as if they happened, but this is only local to transaction.
Reads from the transaction returns data as if the previous modifications in transaction already happened.
Let assume initial state of data tree for PATH
is A
.
ReadWriteTransaction rwTx = broker.newReadWriteTransaction();
rwRx.read(OPERATIONAL,PATH).get();
rwRx.put(OPERATIONAL,PATH,B);
rwRx.read(OPERATIONAL,PATH).get();
rwRx.put(OPERATIONAL,PATH,C);
rwRx.read(OPERATIONAL,PATH).get();
ReadWriteTransaction
.rwTx
will return value A
for PATH
.B
to PATH
using rwTx
.B
for PATH
, since previous write
occurred in same transaction.C
to PATH
using rwTx
.C
for PATH
, since previous write
occurred in same transaction.Running (not submitted) transactions are isolated from each other and changes done in one transaction are not observable in other currently running transaction.
Lets assume initial state of data tree for PATH
is A
.
ReadOnlyTransaction txRead = broker.newReadOnlyTransaction();
ReadWriteTransaction txWrite = broker.newReadWriteTransaction();
txRead.read(OPERATIONAL,PATH).get();
txWrite.put(OPERATIONAL,PATH,B);
txWrite.read(OPERATIONAL,PATH).get();
txWrite.submit().get();
txRead.read(OPERATIONAL,PATH).get();
txAfterCommit = broker.newReadOnlyTransaction();
txAfterCommit.read(OPERATIONAL,PATH).get();
A
for PATH
.A
for PATH
.A
for PATH
.PATH
contains
B
. Change is not public and only local to transaction.B
for PATH
.PATH
will be updated for value B
. Previously allocated transactions
are not affected by this change.A
for PATH
, since it provides stable and isolated view.B
for PATH
.B
for PATH
since read-write transaction was committed.Note
Examples contain blocking calls on future only to illustrate that
action happened after other asynchronous action. The use of the
blocking call ListenableFuture#get()
is discouraged for most
use-cases and you should use
Futures#addCallback(ListenableFuture, FutureCallback)
to listen
asynchronously for result.
A transaction commit may fail because of following reasons:
Another transaction finished earlier and modified the same node in
a non-compatible way. The commit (and the returned future) will
fail with an OptimisticLockFailedException
.
It is the responsibility of the caller to create a new transaction and submit the same modification again in order to update data tree.
Warning
OptimisticLockFailedException
usually exposes multiple
writers to the same data subtree, which may conflict on same
resources.
In most cases, retrying may result in a probability of success.
There are scenarios, albeit unusual, where any number of retries will not succeed. Therefore it is strongly recommended to limit the number of retries (2 or 3) to avoid an endless loop.
DataValidationFailedException
. User should not retry to
create new transaction with same data, since it probably will fail
again.This example illustrates two concurrent transactions, which derived from same initial state of data tree and proposes conflicting modifications.
WriteTransaction txA = broker.newWriteTransaction();
WriteTransaction txB = broker.newWriteTransaction();
txA.put(CONFIGURATION, PATH, A);
txB.put(CONFIGURATION, PATH, B);
CheckedFuture<?,?> futureA = txA.submit();
CheckedFuture<?,?> futureB = txB.submit();
PATH
to value A
using txA
PATH
to value B
using txB
txA
. The commit will be processed asynchronously
and data tree will be updated to contain value A
for PATH
.
The returned ‘ListenableFuture’ will complete successfully once state
is applied to data tree.txB
. Commit of txB
will fail, because
previous transaction also modified path in a concurrent way. The
state introduced by txB
will not be applied. The returned
ListenableFuture
will fail with OptimisticLockFailedException
exception, which indicates that concurrent transaction prevented the
submitted transaction from being applied.private void doWrite( final int tries ) {
WriteTransaction writeTx = dataBroker.newWriteOnlyTransaction();
MyDataObject data = ...;
InstanceIdentifier<MyDataObject> path = ...;
writeTx.put( LogicalDatastoreType.OPERATIONAL, path, data );
Futures.addCallback( writeTx.submit(), new FutureCallback<Void>() {
public void onSuccess( Void result ) {
// succeeded
}
public void onFailure( Throwable t ) {
if( t instanceof OptimisticLockFailedException && (( tries - 1 ) > 0)) {
doWrite( tries - 1 );
}
}
});
}
...
doWrite( 2 );
There are several sets of changes which could be considered incompatible between two transactions which are derived from same initial state. Rules for conflict detection applies recursively for each subtree level.
Following table shows state changes and failures between two concurrent
transactions, which are based on same initial state, tx1
is
submitted before tx2
.
INFO: Following tables stores numeric values and shows data using
toString()
to simplify examples.
Initial state | tx1 | tx2 | Observable Result |
---|---|---|---|
Empty | put(A,1) |
put(A,2) |
tx2 will fail,
value of A is
1 |
Empty | put(A,1) |
merge(A,2) |
value of A is
2 |
Empty | merge(A,1) |
put(A,2) |
tx2 will fail,
value of A is
1 |
Empty | merge(A,1) |
merge(A,2) |
A is 2 |
A=0 | put(A,1) |
put(A,2) |
tx2 will fail,
A is 1 |
A=0 | put(A,1) |
merge(A,2) |
A is 2 |
A=0 | merge(A,1) |
put(A,2) |
tx2 will fail,
value of A is
1 |
A=0 | merge(A,1) |
merge(A,2) |
A is 2 |
A=0 | delete(A) |
put(A,2) |
tx2 will fail,
A does not
exists |
A=0 | delete(A) |
merge(A,2) |
A is 2 |
Table: Concurrent change resolution for leaves and leaf-list items
Initial state | tx1 |
tx2 |
Result |
---|---|---|---|
Empty | put(TOP,[]) | put(TOP,[]) | tx2 will fail,
state is TOP=[] |
Empty | put(TOP,[]) | merge(TOP,[]) | TOP=[] |
Empty | put(TOP,[FOO=1]) | put(TOP,[BAR=1]) | tx2 will fail,
state is
TOP=[FOO=1] |
Empty | put(TOP,[FOO=1]) | merge(TOP,[BAR=1]) | TOP=[FOO=1,BAR=1] |
Empty | merge(TOP,[FOO=1]) | put(TOP,[BAR=1]) | tx2 will fail,
state is
TOP=[FOO=1] |
Empty | merge(TOP,[FOO=1]) | merge(TOP,[BAR=1]) | TOP=[FOO=1,BAR=1] |
TOP=[] | put(TOP,[FOO=1]) | put(TOP,[BAR=1]) | tx2 will fail,
state is
TOP=[FOO=1] |
TOP=[] | put(TOP,[FOO=1]) | merge(TOP,[BAR=1]) | state is TOP=[FOO=1,BAR=1] |
TOP=[] | merge(TOP,[FOO=1]) | put(TOP,[BAR=1]) | tx2 will fail,
state is
TOP=[FOO=1] |
TOP=[] | merge(TOP,[FOO=1]) | merge(TOP,[BAR=1]) | state is TOP=[FOO=1,BAR=1] |
TOP=[] | delete(TOP) | put(TOP,[BAR=1]) | tx2 will fail,
state is empty
store |
TOP=[] | delete(TOP) | merge(TOP,[BAR=1]) | state is TOP=[BAR=1] |
TOP=[] | put(TOP/FOO,1) | put(TOP/BAR,1]) | state is TOP=[FOO=1,BAR=1] |
TOP=[] | put(TOP/FOO,1) | merge(TOP/BAR,1) | state is TOP=[FOO=1,BAR=1] |
TOP=[] | merge(TOP/FOO,1) | put(TOP/BAR,1) | state is TOP=[FOO=1,BAR=1] |
TOP=[] | merge(TOP/FOO,1) | merge(TOP/BAR,1) | state is TOP=[FOO=1,BAR=1] |
TOP=[] | delete(TOP) | put(TOP/BAR,1) | tx2 will fail,
state is empty
store |
TOP=[] | delete(TOP) | merge(TOP/BAR,1] | tx2 will fail,
state is empty
store |
TOP=[FOO=1] | put(TOP/FOO,2) | put(TOP/BAR,1) | state is TOP=[FOO=2,BAR=1] |
TOP=[FOO=1] | put(TOP/FOO,2) | merge(TOP/BAR,1) | state is TOP=[FOO=2,BAR=1] |
TOP=[FOO=1] | merge(TOP/FOO,2) | put(TOP/BAR,1) | state is TOP=[FOO=2,BAR=1] |
TOP=[FOO=1] | merge(TOP/FOO,2) | merge(TOP/BAR,1) | state is TOP=[FOO=2,BAR=1] |
TOP=[FOO=1] | delete(TOP/FOO) | put(TOP/BAR,1) | state is TOP=[BAR=1] |
TOP=[FOO=1] | delete(TOP/FOO) | merge(TOP/BAR,1] | state is TOP=[BAR=1] |
Table: Concurrent change resolution for containers, lists, list items
The MD-SAL provides a way to deliver Remote Procedure Calls (RPCs) to a particular implementation based on content in the input as it is modeled in YANG. This part of the the RPC input is referred to as a context reference.
The MD-SAL does not dictate the name of the leaf which is used for this RPC routing, but provides necessary functionality for YANG model author to define their context reference in their model of RPCs.
MD-SAL routing behavior is modeled using following terminology and its application to YANG models:
identity
and is referenced in model to provide scoping
information.In order to define routed RPCs, the YANG model author needs to declare (or reuse) a context type, set of possible context instances and finally RPCs which will contain context reference on which they will be routed.
This declares an identity named node-context
, which is used as
marker for node-based routing and is used in other places to reference
that routing type.
In order to define possible values of context instances for routed
RPCs, we need to model that set accordingly using context-instance
extension from the yang-ext
model.
The statement ext:context-instance "node-context";
marks any element
of the list node
as a possible valid context instance in
node-context
based routing.
Note
The existence of a context instance node in operational or config data tree is not strongly tied to existence of RPC implementation.
For most routed RPC models, there is relationship between the data present in operational data tree and RPC implementation availability, but this is not enforced by MD-SAL. This provides some flexibility for YANG model writers to better specify their routing model and requirements for implementations. Details when RPC implementations are available should be documented in YANG model.
If user invokes RPC with a context instance that has no
registered implementation, the RPC invocation will fail with the
exception DOMRpcImplementationNotAvailableException
.
To declare RPC to be routed based on node-context
we need to add
leaf of instance-identifier
type (or type derived from
instance-identifier
) to the RPC and mark it as context
reference.
This is achieved using YANG extension context-reference
from
yang-ext
model on leaf, which will be used for RPC routing.
The statement ext:context-reference "node-context"
marks
leaf node
as context reference of type node-context
. The
value of this leaf, will be used by the MD-SAL to select the particular
RPC implementation that registered itself as the implementation of the
RPC for particular context instance.
From a user perspective (e.g. invoking RPCs) there is no difference between routed and non-routed RPCs. Routing information is just an additional leaf in RPC which must be populated.
Implementation
Implementations of a routed RPC (e.g., southbound plugins) will specify an instance-identifier for the context reference (in this case a node) for which they want to provide an implementation during registration. Consumers, e.g., those calling the RPC are required to specify that instance-identifier (in this case the identifier of a node) when invoking RPC.
Simple code which showcases that for add-flow via Binding-Aware APIs (RoutedServiceTest.java ):
61 @Override
62 public void onSessionInitiated(ProviderContext session) {
63 assertNotNull(session);
64 firstReg = session.addRoutedRpcImplementation(SalFlowService.class, salFlowService1);
65 }
Line 64: We are registering salFlowService1 as implementation of SalFlowService RPC
107 NodeRef nodeOne = createNodeRef("foo:node:1");
109 /**
110 * Provider 1 registers path of node 1
111 */
112 firstReg.registerPath(NodeContext.class, nodeOne);
Line 107: We are creating NodeRef (encapsulation of InstanceIdentifier) for “foo:node:1”.
Line 112: We register salFlowService1 as implementation for nodeOne.
The salFlowService1 will be executed only for RPCs which contains Instance Identifier for foo:node:1.
In case there is is only a single provider of an RPC in the cluster the RPC registration is propagated to other nodes via Gossip protocol and the RPC calls from other nodes are correctly routed to the provider. Since the registrations are not expected to change rapidly there is a latency of about 1 second until the registration is reflected on the remote nodes.
Note
RESTCONF supports OPTIONS, GET, PUT, POST, and
DELETE operations. Request and response data can either be in the
XML or JSON format. XML structures according to yang are defined at:
XML-YANG. JSON structures are
defined at:
JSON-YANG.
Data in the request must have a correctly set Content-Type field in
the http header with the allowed value of the media type. The media type
of the requested data has to be set in the Accept field. Get the
media types for each resource by calling the OPTIONS operation. Most of
the paths of the pathsRestconf endpoints use Instance
Identifier.
<identifier>
is used in the explanation of the operations.
It must start with <moduleName>:<nodeName> where <moduleName> is a name of the module and <nodeName> is the name of a node in the module. It is sufficient to just use <nodeName> after <moduleName>:<nodeName>. Each <nodeName> has to be separated by /.
<nodeName> can represent a data node which is a list or container yang built-in type. If the data node is a list, there must be defined keys of the list behind the data node name for example, <nodeName>/<valueOfKey1>/<valueOfKey2>.
PUT http://<controllerIP>:8080/restconf/config/module1:foo/bar
Content-Type: applicaton/xml
<bar>
…
</bar>
PUT http://<controllerIP>:8080/restconf/config/module1:foo1/foo2/yang-ext:mount/module2:foo/bar
Content-Type: applicaton/xml
<bar>
…
</bar>
POST URL: http://localhost:8080/restconf/config/
content-type: application/yang.data+json
JSON payload:
{
"toaster:toaster" :
{
"toaster:toasterManufacturer" : "General Electric",
"toaster:toasterModelNumber" : "123",
"toaster:toasterStatus" : "up"
}
}
POST http://<controllerIP>:8080/restconf/config/module1:foo
Content-Type: applicaton/xml/
<bar xmlns=“module1namespace”>
…
</bar>
Example with mount point:
http://<controllerIP>:8080/restconf/config/module1:foo1/foo2/yang-ext:mount/module2:foo
Content-Type: applicaton/xml
<bar xmlns=“module2namespace”>
…
</bar>
POST http://<controllerIP>:8080/restconf/operations/module1:fooRpc
Content-Type: applicaton/xml
Accept: applicaton/xml
<input>
…
</input>
The answer from the server could be:
<output>
…
</output>
POST http://localhost:8080/restconf/operations/toaster:make-toast
Content-Type: application/yang.data+json
{
"input" :
{
"toaster:toasterDoneness" : "10",
"toaster:toasterToastType":"wheat-bread"
}
}
Note
Even though this is a default for the toasterToastType value in the yang, you still need to define it.
More information is available in the RESTCONF RFC.
Figure 1 shows the GET operation with URI restconf/config/M:N where M is the module name, and N is the node name.

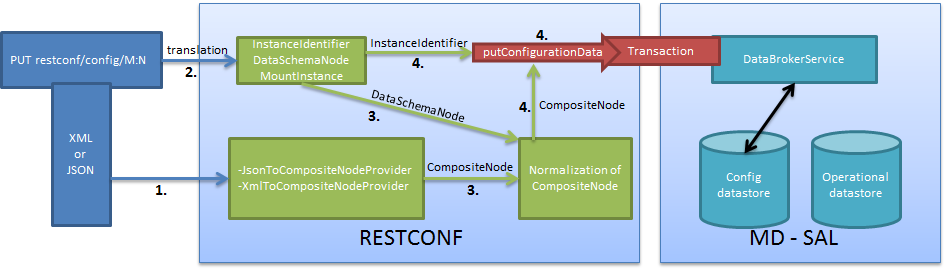

Figure 2 shows the PUT operation with the URI restconf/config/M:N where M is the module name, and N is the node name. Data is sent in the request either in the XML or JSON format.
Operation: POST
URI: http://192.168.11.1:8080/restconf/config/opendaylight-inventory:nodes/node/openflow:1/table/2
Content-Type: application/xml
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<flow
xmlns="urn:opendaylight:flow:inventory">
<strict>false</strict>
<instructions>
<instruction>
<order>1</order>
<apply-actions>
<action>
<order>1</order>
<flood-all-action/>
</action>
</apply-actions>
</instruction>
</instructions>
<table_id>2</table_id>
<id>111</id>
<cookie_mask>10</cookie_mask>
<out_port>10</out_port>
<installHw>false</installHw>
<out_group>2</out_group>
<match>
<ethernet-match>
<ethernet-type>
<type>2048</type>
</ethernet-type>
</ethernet-match>
<ipv4-destination>10.0.0.1/24</ipv4-destination>
</match>
<hard-timeout>0</hard-timeout>
<cookie>10</cookie>
<idle-timeout>0</idle-timeout>
<flow-name>FooXf22</flow-name>
<priority>2</priority>
<barrier>false</barrier>
</flow>
Status: 204 No Content
Operation: PUT
URI: http://192.168.11.1:8080/restconf/config/opendaylight-inventory:nodes/node/openflow:1/table/2/flow/111
Content-Type: application/xml
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<flow
xmlns="urn:opendaylight:flow:inventory">
<strict>true</strict>
<instructions>
<instruction>
<order>1</order>
<apply-actions>
<action>
<order>1</order>
<flood-all-action/>
</action>
</apply-actions>
</instruction>
</instructions>
<table_id>2</table_id>
<id>111</id>
<cookie_mask>10</cookie_mask>
<out_port>10</out_port>
<installHw>false</installHw>
<out_group>2</out_group>
<match>
<ethernet-match>
<ethernet-type>
<type>2048</type>
</ethernet-type>
</ethernet-match>
<ipv4-destination>10.0.0.1/24</ipv4-destination>
</match>
<hard-timeout>0</hard-timeout>
<cookie>10</cookie>
<idle-timeout>0</idle-timeout>
<flow-name>FooXf22</flow-name>
<priority>2</priority>
<barrier>false</barrier>
</flow>
Status: 200 OK
Operation: GET
URI: http://192.168.11.1:8080/restconf/config/opendaylight-inventory:nodes/node/openflow:1/table/2/flow/111
Accept: application/xml
Status: 200 OK
<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<flow
xmlns="urn:opendaylight:flow:inventory">
<strict>true</strict>
<instructions>
<instruction>
<order>1</order>
<apply-actions>
<action>
<order>1</order>
<flood-all-action/>
</action>
</apply-actions>
</instruction>
</instructions>
<table_id>2</table_id>
<id>111</id>
<cookie_mask>10</cookie_mask>
<out_port>10</out_port>
<installHw>false</installHw>
<out_group>2</out_group>
<match>
<ethernet-match>
<ethernet-type>
<type>2048</type>
</ethernet-type>
</ethernet-match>
<ipv4-destination>10.0.0.1/24</ipv4-destination>
</match>
<hard-timeout>0</hard-timeout>
<cookie>10</cookie>
<idle-timeout>0</idle-timeout>
<flow-name>FooXf22</flow-name>
<priority>2</priority>
<barrier>false</barrier>
</flow>
Operation: DELETE
URI: http://192.168.11.1:8080/restconf/config/opendaylight-inventory:nodes/node/openflow:1/table/2/flow/111
Status: 200 OK
Subscribing to data change notifications makes it possible to obtain notifications about data manipulation (insert, change, delete) which are done on any specified path of any specified datastore with specific scope. In following examples {odlAddress} is address of server where ODL is running and {odlPort} is port on which OpenDaylight is running.
In this section we will learn what steps need to be taken in order to successfully subscribe to data change event notifications.
In order to use event notifications you first need to call RPC that creates notification stream that you can later listen to. You need to provide three parameters to this RPC:
The RPC to create the stream can be invoked via RESCONF like this:
URI: http://{odlAddress}:{odlPort}/restconf/operations/sal-remote:create-data-change-event-subscription
HEADER: Content-Type=application/json
OPERATION: POST
DATA:
{
"input": {
"path": "/toaster:toaster/toaster:toasterStatus",
"sal-remote-augment:datastore": "OPERATIONAL",
"sal-remote-augment:scope": "ONE"
}
}
The response should look something like this:
{
"output": {
"stream-name": "data-change-event-subscription/toaster:toaster/toaster:toasterStatus/datastore=CONFIGURATION/scope=SUBTREE"
}
}
stream-name is important because you will need to use it when you subscribe to the stream in the next step.
Note
Internally, this will create a new listener for stream-name if it did not already exist.
In order to subscribe to stream and obtain WebSocket location you need to call GET on your stream path. The URI should generally be http://{odlAddress}:{odlPort}/restconf/streams/stream/{streamName}, where {streamName} is the stream-name parameter contained in response from create-data-change-event-subscription RPC from the previous step.
The subscription call may be modified with the following query parameters defined in the RESTCONF RFC:
In addition, the following ODL extension query parameter is supported:
odl-leaf-nodes-only: | |
---|---|
If this parameter is set to “true”, create and update notifications will only contain the leaf nodes modified instead of the entire subscription subtree. This can help in reducing the size of the notifications. |
The expected response status is 200 OK and response body should be empty. You will get your WebSocket location from Location header of response. For example in our particular toaster example location header would have this value: ws://{odlAddress}:8185/toaster:toaster/datastore=CONFIGURATION/scope=SUBTREE
Note
During this phase there is an internal check for to see if a listener for the stream-name from the URI exists. If not, new a new listener is registered with the DOM data broker.
You should now have a data change notification stream created and have location of a WebSocket. You can use this WebSocket to listen to data change notifications. To listen to notifications you can use a JavaScript client or if you are using chrome browser you can use the Simple WebSocket Client.
Also, for testing purposes, there is simple Java application named WebSocketClient. The application is placed in the -sal-rest-connector-classes.class project. It accepts a WebSocket URI as and input parameter. After starting the utility (WebSocketClient class directly in Eclipse/InteliJ Idea) received notifications should be displayed in console.
Notifications are always in XML format and look like this:
<notification xmlns="urn:ietf:params:xml:ns:netconf:notification:1.0">
<eventTime>2014-09-11T09:58:23+02:00</eventTime>
<data-changed-notification xmlns="urn:opendaylight:params:xml:ns:yang:controller:md:sal:remote">
<data-change-event>
<path xmlns:meae="http://netconfcentral.org/ns/toaster">/meae:toaster</path>
<operation>updated</operation>
<data>
<!-- updated data -->
</data>
</data-change-event>
</data-changed-notification>
</notification>
The typical use case is listening to data change events to update web page data in real-time. In this tutorial we will be using toaster as the base.
When you call make-toast RPC, it sets toasterStatus to “down” to reflect that the toaster is busy making toast. When it finishes, toasterStatus is set to “up” again. We will listen to this toaster status changes in data store and will reflect it on our web page in real-time thanks to WebSocket data change notification.
We will create simple JavaScript web application that will listen updates on toasterStatus leaf and update some element of our web page according to new toaster status state.
First you need to create stream that you are planing to subscribe to. This can be achieved by invoking “create-data-change-event-subscription” RPC on RESTCONF via AJAX request. You need to provide data store path that you plan to listen on, data store type and scope. If the request is successful you can extract the stream-name from the response and use that to subscribe to the newly created stream. The {username} and {password} fields represent your credentials that you use to connect to OpenDaylight via RESTCONF:
Note
The default user name and password are “admin”.
function createStream() {
$.ajax(
{
url: 'http://{odlAddress}:{odlPort}/restconf/operations/sal-remote:create-data-change-event-subscription',
type: 'POST',
headers: {
'Authorization': 'Basic ' + btoa('{username}:{password}'),
'Content-Type': 'application/json'
},
data: JSON.stringify(
{
'input': {
'path': '/toaster:toaster/toaster:toasterStatus',
'sal-remote-augment:datastore': 'OPERATIONAL',
'sal-remote-augment:scope': 'ONE'
}
}
)
}).done(function (data) {
// this function will be called when ajax call is executed successfully
subscribeToStream(data.output['stream-name']);
}).fail(function (data) {
// this function will be called when ajax call fails
console.log("Create stream call unsuccessful");
})
}
The Next step is to subscribe to the stream. To subscribe to the stream you need to call GET on http://{odlAddress}:{odlPort}/restconf/streams/stream/{stream-name}. If the call is successful, you get WebSocket address for this stream in Location parameter inside response header. You can get response header by calling getResponseHeader(*Location)* on HttpRequest object inside done() function call:
function subscribeToStream(streamName) {
$.ajax(
{
url: 'http://{odlAddress}:{odlPort}/restconf/streams/stream/' + streamName;
type: 'GET',
headers: {
'Authorization': 'Basic ' + btoa('{username}:{password}'),
}
}
).done(function (data, textStatus, httpReq) {
// we need function that has http request object parameter in order to access response headers.
listenToNotifications(httpReq.getResponseHeader('Location'));
}).fail(function (data) {
console.log("Subscribe to stream call unsuccessful");
});
}
Once you got WebSocket server location you can now connect to it and start receiving data change events. You need to define functions that will handle events on WebSocket. In order to process incoming events from OpenDaylight you need to provide a function that will handle onmessage events. The function must have one parameter that represents the received event object. The event data will be stored in event.data. The data will be in an XML format that you can then easily parse using jQuery.
function listenToNotifications(socketLocation) {
try {
var notificatinSocket = new WebSocket(socketLocation);
notificatinSocket.onmessage = function (event) {
// we process our received event here
console.log('Received toaster data change event.');
$($.parseXML(event.data)).find('data-change-event').each(
function (index) {
var operation = $(this).find('operation').text();
if (operation == 'updated') {
// toaster status was updated so we call function that gets the value of toasterStatus leaf
updateToasterStatus();
return false;
}
}
);
}
notificatinSocket.onerror = function (error) {
console.log("Socket error: " + error);
}
notificatinSocket.onopen = function (event) {
console.log("Socket connection opened.");
}
notificatinSocket.onclose = function (event) {
console.log("Socket connection closed.");
}
// if there is a problem on socket creation we get exception (i.e. when socket address is incorrect)
} catch(e) {
alert("Error when creating WebSocket" + e );
}
}
The updateToasterStatus() function represents function that calls GET on the path that was modified and sets toaster status in some web page element according to received data. After the WebSocket connection has been established you can test events by calling make-toast RPC via RESTCONF.
Note
for more information about WebSockets in JavaScript visit Writing WebSocket client applications

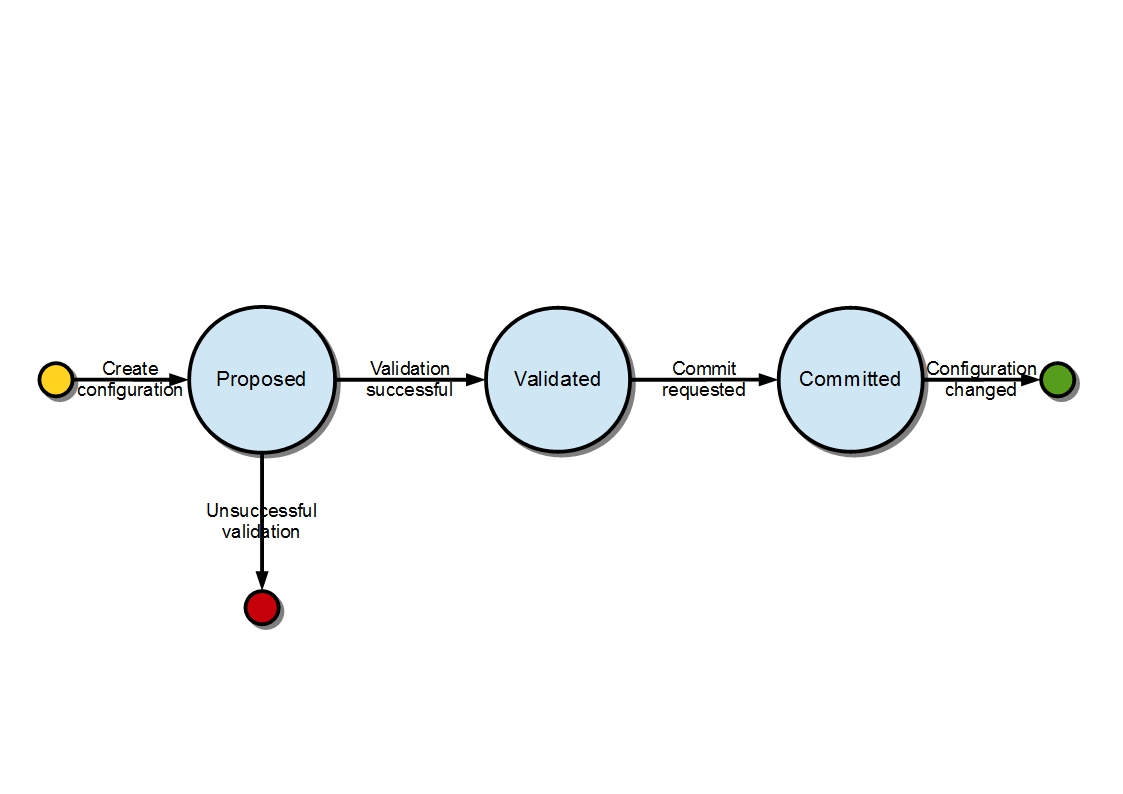

The Controller configuration operation has three stages:
In fact, each configuration operation is wrapped in a transaction. Once a transaction is created, it can be configured, that is to say, a user can abort the transaction during this stage. After the transaction configuration is done, it is committed to the validation stage. In this stage, the validation procedures are invoked. If one or more validations fail, the transaction can be reconfigured. Upon success, the second phase commit is invoked. If this commit is successful, the transaction enters the last stage, committed. After that, the desired modules are reconfigured. If the second phase commit fails, it means that the transaction is unhealthy - basically, a new configuration instance creation failed, and the application can be in an inconsistent state.
To secure the consistency and safety of the new configuration and to avoid conflicts, the configuration validation process is necessary. Usually, validation checks the input parameters of a new configuration, and mostly verifies module-specific relationships. The validation procedure results in a decision on whether the proposed configuration is healthy.
Since there can be dependencies between modules, a change in a module configuration can affect the state of other modules. Therefore, we need to verify whether dependencies on other modules can be resolved. The Dependency Resolver acts in a manner similar to dependency injectors. Basically, a dependency tree is built.
This section describes configuration system APIs and SPIs.
Module org.opendaylight.controller.config.spi. Module is the common interface for all modules: every module must implement it. The module is designated to hold configuration attributes, validate them, and create instances of service based on the attributes. This instance must implement the AutoCloseable interface, owing to resources clean up. If the module was created from an already running instance, it contains an old instance of the module. A module can implement multiple services. If the module depends on other modules, setters need to be annotated with @RequireInterface.
Module creation
From an existing module instance
ConfigRegistry | Represents functionality provided by a configuration transaction (create, destroy module, validate, or abort transaction). |
ConfigTransactionController | Represents functionality for manipulating with configuration transactions (begin, commit config). |
RuntimeBeanRegistratorAwareConfiBean | The module implementing this interface will receive RuntimeBeanRegistrator before getInstance is invoked. |
RuntimeBean | Common interface for all runtime beans |
RootRuntimeBeanRegistrator | Represents functionality for root runtime bean registration, which subsequently allows hierarchical registrations |
HierarchicalRuntimeBeanRegistration | Represents functionality for runtime bean registration and unreregistration from hierarchy |
ConfigTransactionControllerMXBean | Extends ConfigTransactionController, executed by Jolokia clients on configuration transaction. |
ConfigRegistryMXBean | Represents entry point of configuration management for MXBeans. |
Object names | Object Name is the pattern used in JMX to locate JMX beans. It consists of domain and key properties (at least one key-value pair). Domain is defined as “org.opendaylight.controller”. The only mandatory property is “type”. |
Successful commit scenario
The configuration subsystem provides a way for modules to create default instances. A default instance is an instance of a module, that is created at the module bundle start-up (module becomes visible for configuration subsystem, for example, its bundle is activated in the OSGi environment). By default, no default instances are produced.
The default instance does not differ from instances created later in the module life-cycle. The only difference is that the configuration for the default instance cannot be provided by the configuration subsystem. The module has to acquire the configuration for these instances on its own. It can be acquired from, for example, environment variables. After the creation of a default instance, it acts as a regular instance and fully participates in the configuration subsystem (It can be reconfigured or deleted in following transactions.).
